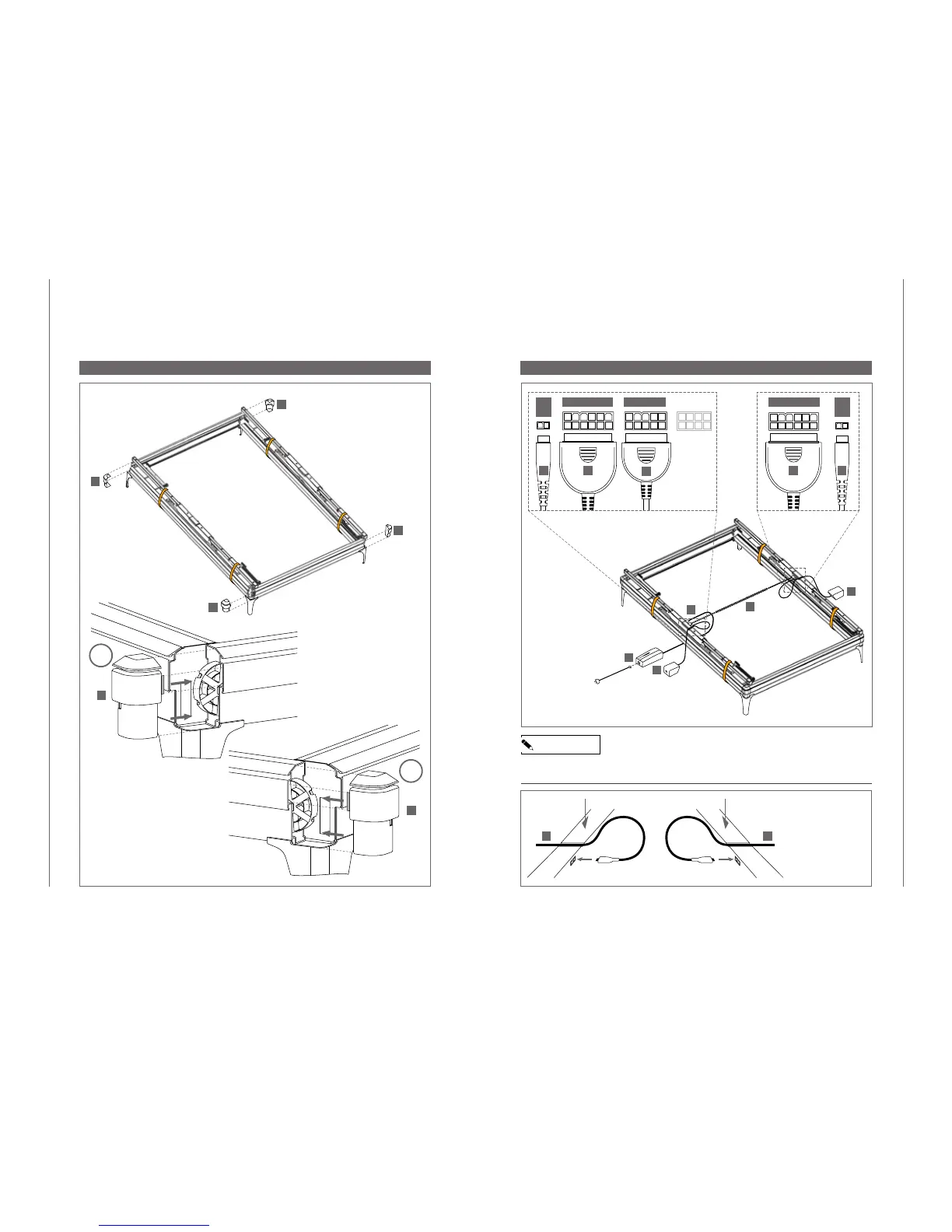

ADDING CORNER COVERS CONNECTING CABLES
NOTICE
Stretch the side to side cable (I) to the appropriate length before connecting to avoid excessive
tension on the connectors.
2x
E
2x
F
J
12 pin 12 pin
2
pin
2
pin
10 pin
I I J
G
J J
Create a loose loop with the
USB-cable (J) and run the cable
through the designated channel.
Place the 2 USB-modules
outside of the frame.
Connect the two side rails
with the side to side cable
(I) by plugging it into the
appropriate connector.
Connect one USB-mod-
ule (J) on each side. Use
the black two pin connec-
tor (see detail below).
Connect the power con-
verter (G) to appropriate
connector.
Place the corner covers (E, F) in their
position and click them in place.
