Yachting FC500 - Mount the Antenna on the Top Cover of Your Bait Boat

18
3. Monut the antenna on the top cover of your bait
boat.

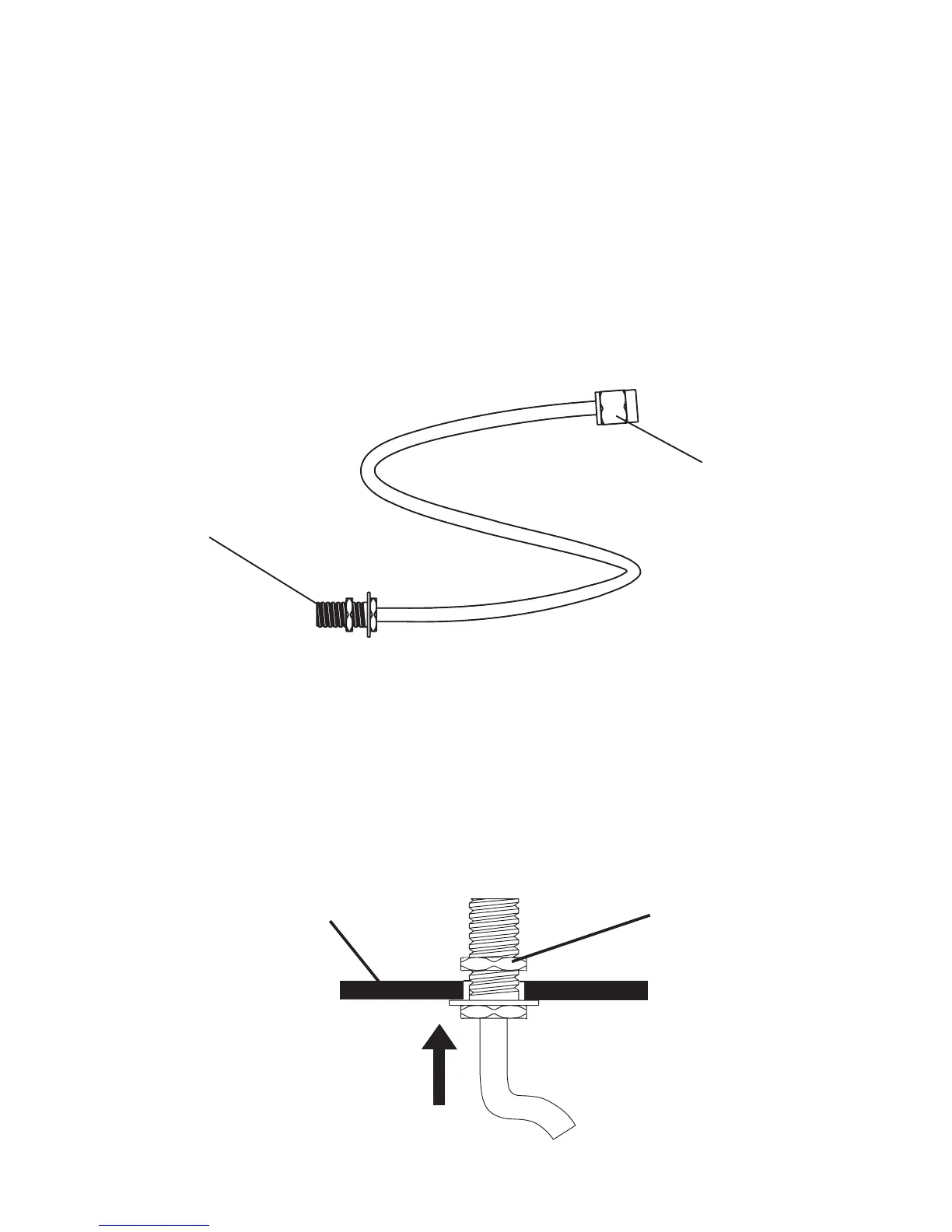

a) mount the antenna-extended cable to the top cover
There are two connector of the antenna-extended cable, one is
used to connetct to the antenna, another is used to connect to
the control box.
Firstly, take out the screw from the antenna-extended cable, then
hold one end of the cable through the hull of bait boat(as instru-
cted below). Finally, tighten the screw.
connect to antenna
connect to control box
18
3. Monut the antenna on the top cover of your bait
boat.
a) mount the antenna-extended cable to the top cover
There are two connector of the antenna-extended cable, one is
used to connetct to the antenna, another is used to connect to
the control box.
Firstly, take out the screw from the antenna-extended cable, then
hold one end of the cable through the hull of bait boat(as instru-
cted below). Finally, tighten the screw.
connect to antenna
connect to control box
18
3. Monut the antenna on the top cover of your bait
boat.
a) mount the antenna-extended cable to the top cover
There are two connector of the antenna-extended cable, one is
used to connetct to the antenna, another is used to connect to
the control box.
Firstly, take out the screw from the antenna-extended cable, then
hold one end of the cable through the hull of bait boat(as instru-
cted below). Finally, tighten the screw.
connect to antenna
connect to control box
hull of bait boat
screw
