Yadea C1S Service Manual

Motor
16

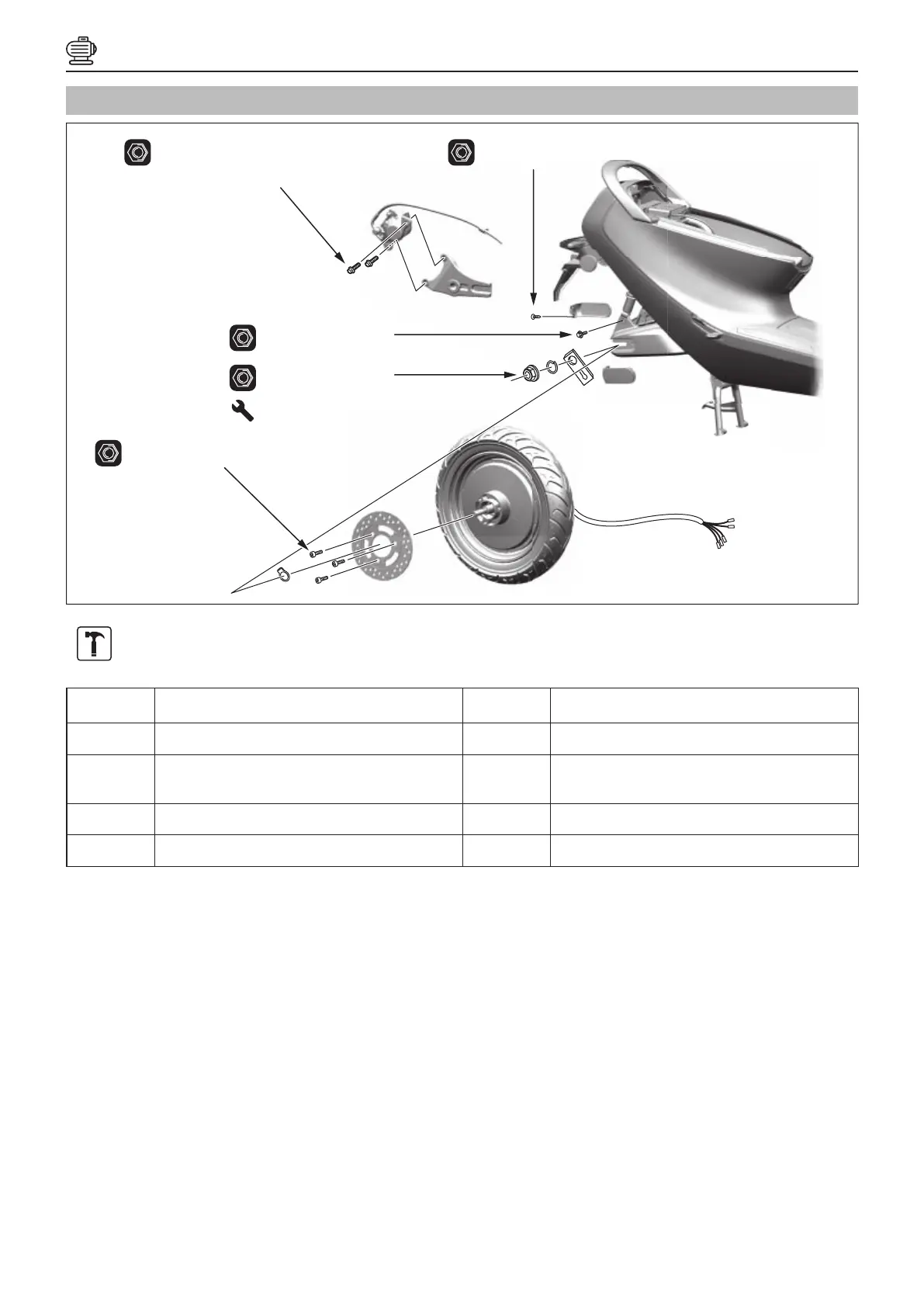

Installation and disassembly
75 N·m
Hexagon flange nut
M16
TT-type hexagon socket platform step screw
M8x20
Hexagon flange bolt
M8x35
Hexagon flange bolt (big head)
Combination with spring washer and
flat washerM8x35
Cross recessed pan head screw
M4x12
• Seat
→
Page 26
• Rear backrest
→
Page 27
• Foot pedal
→
Page 25
• Side cover
→
Page 28
Operating
order
Operating name/parts number Number Note
1 Hexagon flange bolts M8×35 1 Separate the rear fork from the rear swing arm
2
Hexagon flange bolt (big head) combined with
spring washer and flat washer M8×25
2
Separate the rear caliper from the rear caliper
mounting bracket
3 Cross recessed pan head screws M4×12 1 Remove the rear swingarm cover
4 Hexagon flange bolt (big head) M6×16 2 Separate the motor from the rear swingarm
