Yadea C1S - Braking System

Frame & Chassis
39

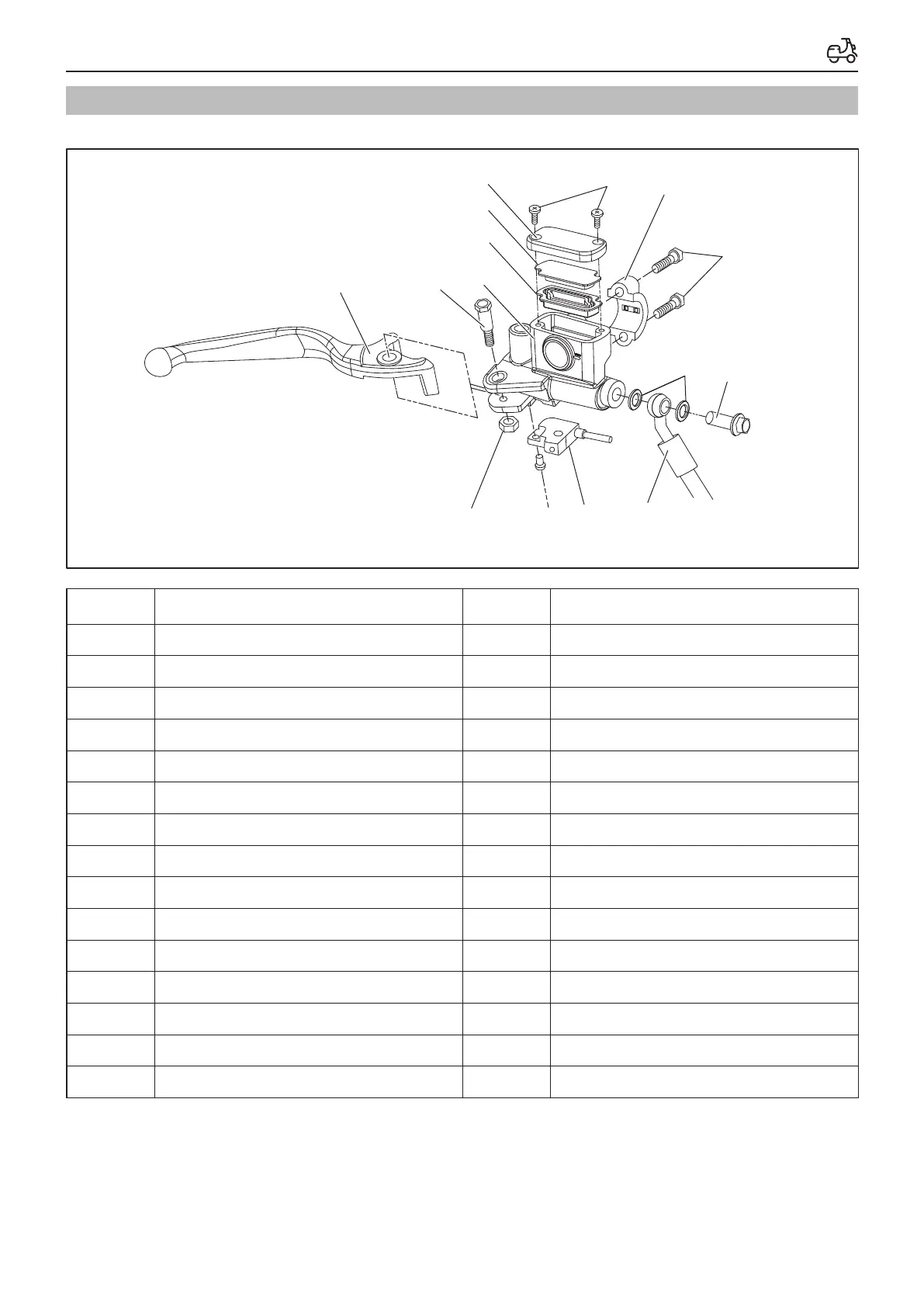

Braking System
Replacement of Brake Fluid
4
5
1
15
14
13
12
2
3
9
10
11
8
76
Operation
Order
Operation Name/parts Name Quantity Note
1 Main Pump 1
2 Main Pump Fixing Base 1
3 Main Pump Fixing Base Bolt 2
4 Brake Handle 1
5 Brake Handle Mounting Bolt 1
6 Nut 1
7 Switch Mounting Screw 1
8 Brake Switch 1
9 Oil Pipe Bolt 1
10 Copper Washer 2
11 Brake Oil Pipe 1
12 Oil Cup Cover 1
13 Oil Cap Bolt 2
14 Seal Septum 1
15 Oil Tank Septum 1
