Electrical System
52
Lighting System

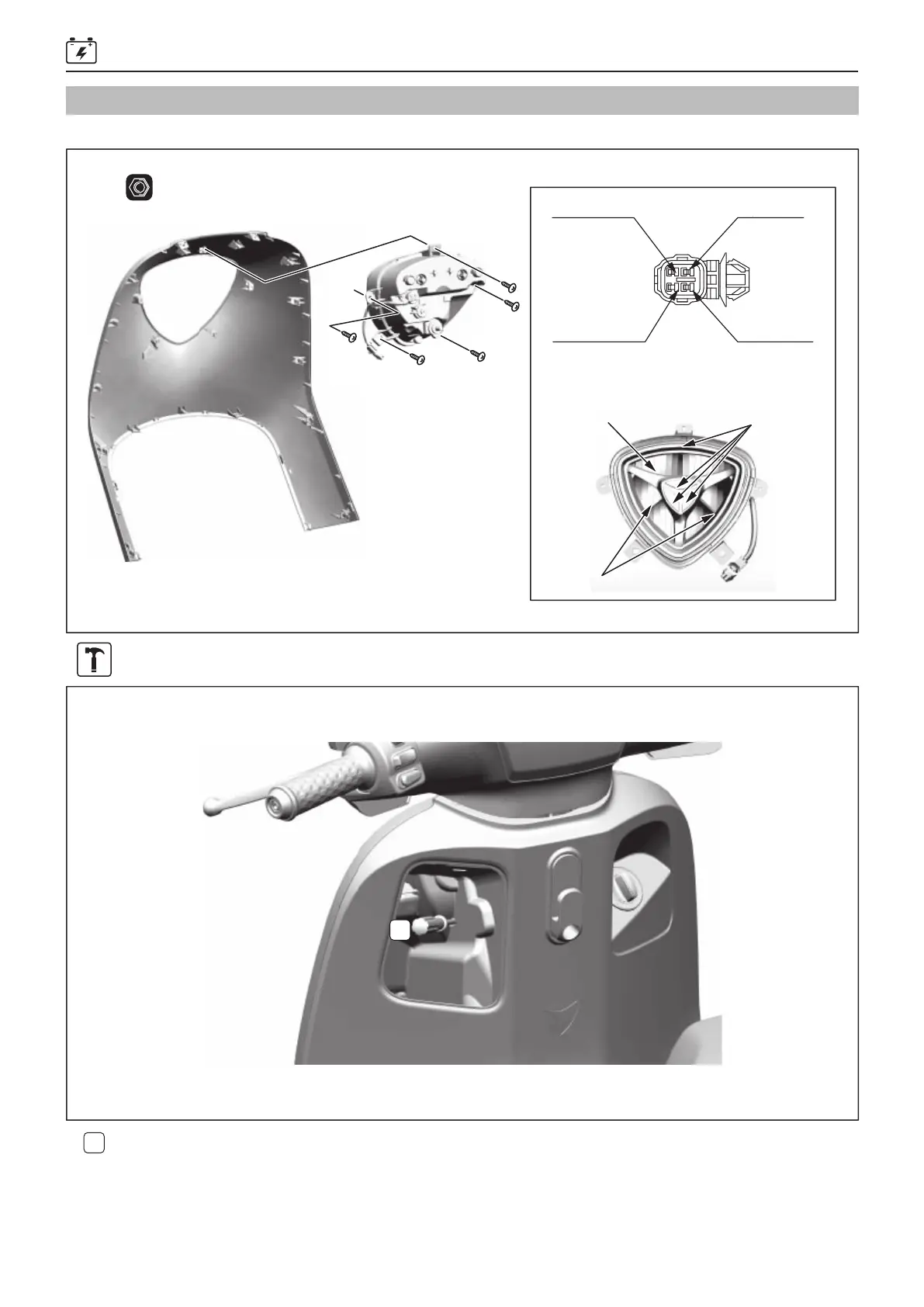

Headlight
Cross recessed pan head tapping
screws ST4.8x16
All
Low beam light area
Diagram of external wire harness of the headlight shell
High beam light area
Position light light area
High beam(ὲ)
Blue
Front position
light(ὲ)
Brown
Positive electrode
12V(+)
Black
Low beam(ὲ)
White
• Front Wall
→
Page 21
Headlight aim
