Yadea C1S Service Manual

Frame & Chassis
32
Front Wheel

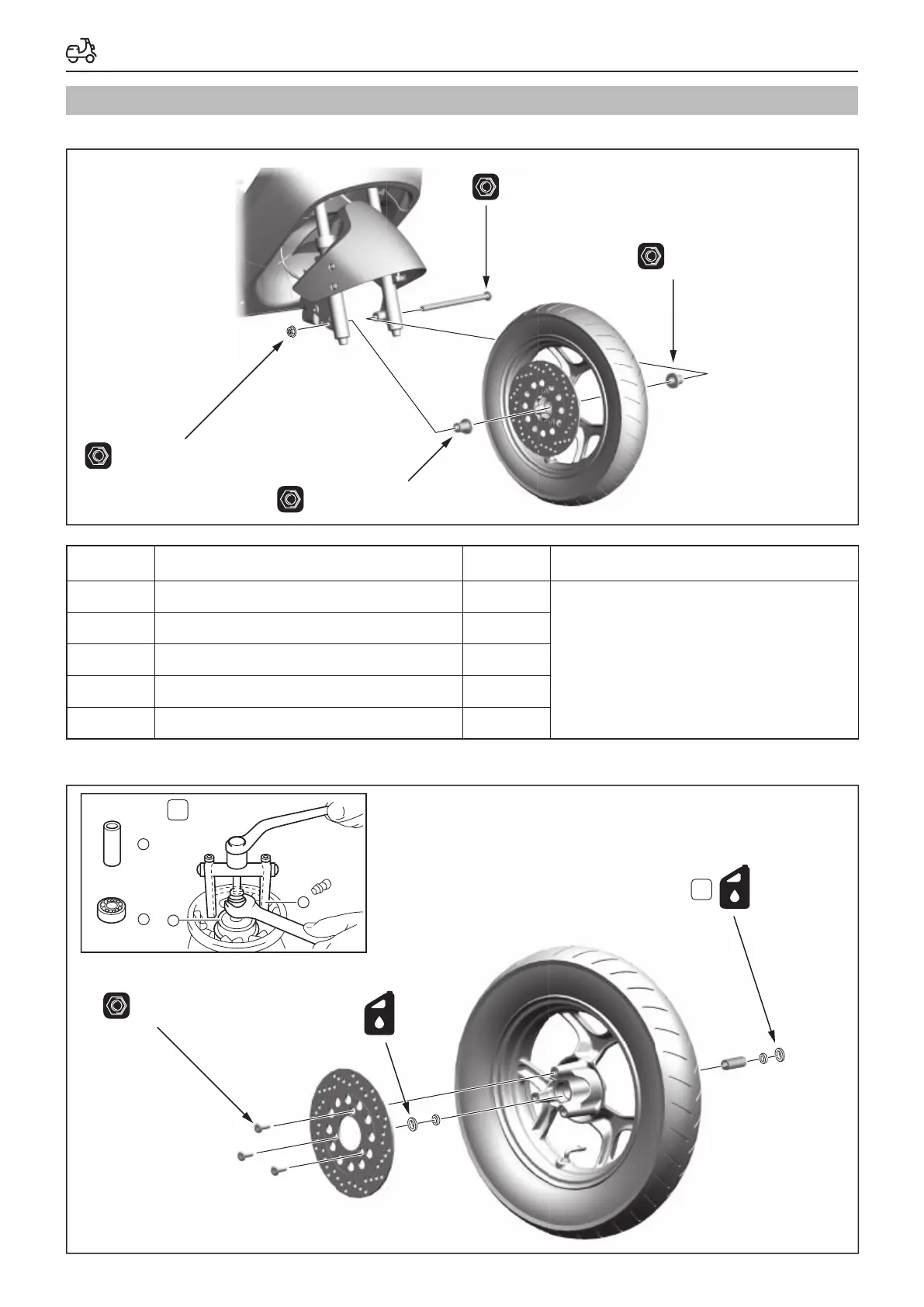

Composition of Front Wheel
Full-metal hexagon flange locking nut
M12×1.25
Front wheel shaft
M12x1.25x225 Environmental color-Zinc
Front wheel shaft sleeve left
Ż20ׯ12×23
Front wheel shaft sleeve right
Ż20ׯ12×34
Operation
Order
Operation Name/parts Name Quantity Note
1 Oil seal 20x32x5 1
When disassembling, please proceed in the
following order.
When installing, please proceed in the reverse
order of disassembly.
2 Bearing 6201-2Z 1
3 Collar 1
4 Bearing 6201-2Z 1
5 Oil seal 20x32x5 1
Composition And Disassembly
2
1
3
1
2
1
T-type hexagon socket flat step
screw M8x20
