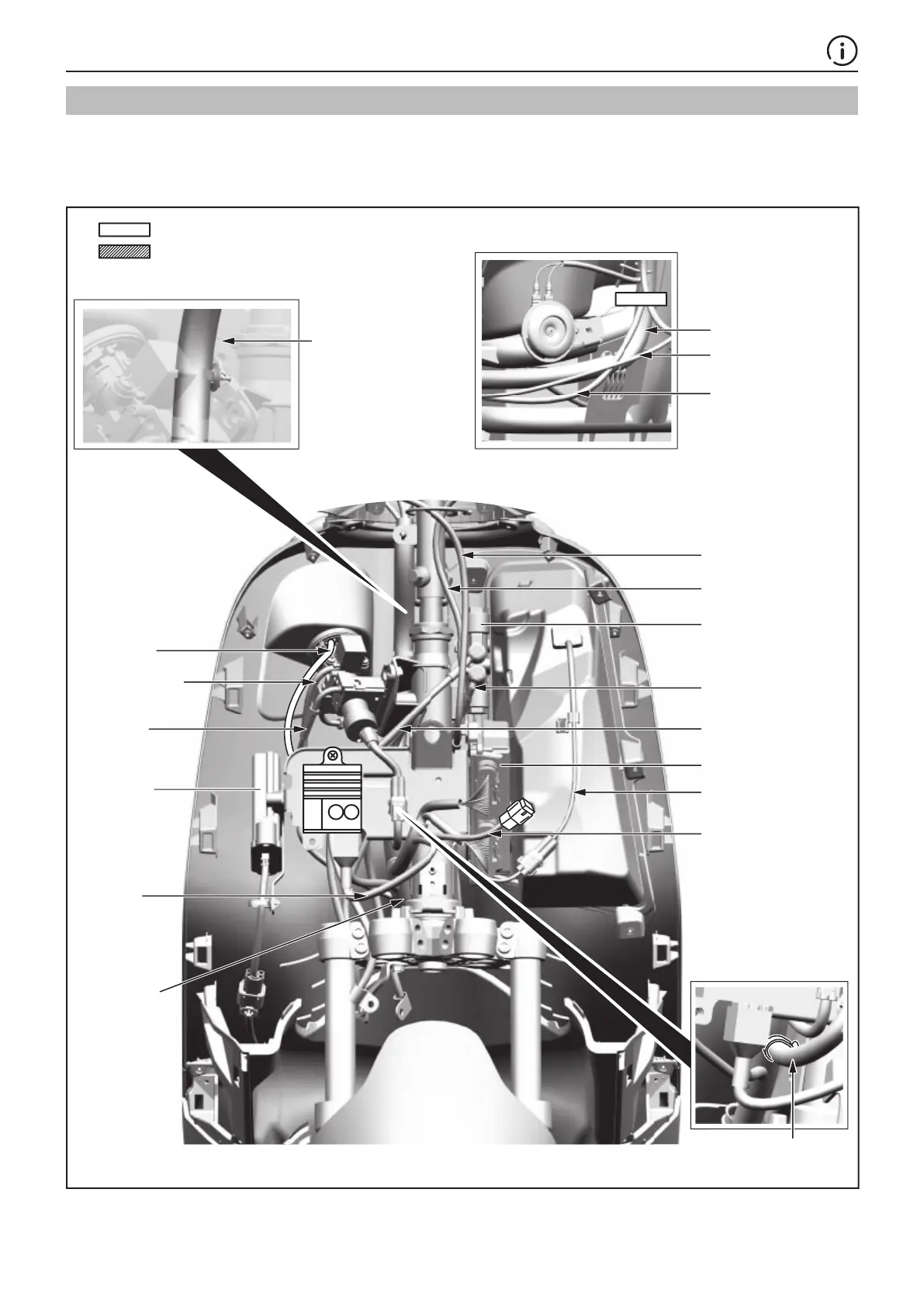

CABLE & HARNESS ROUTING
Harness technical requirements:
1. The wiring harness is straight and beautiful without shaking;
2. There should be no damage to the outer skin of the wiring harness. Wrap the damaged parts with insulating tape;
3. Reduce the excess cable ties, and the remaining amount of the cable ties is 3-5mm.
Cable tie fixing
Wire clamp fixing
Distribution valve
Rear brake oil pipe
Brake oil pipe
(to the front caliper)
Central controller
USB connection
Brake oil pipe
(to the rear caliper)
Front brake oil pipe
Front lamp connection
GPS
4G module
DC-DC
converter
wiring
Main electrical
cable
Seat lock
cable
Solenoid valve
line
LED cable
Main electrical cable
Cable
Rear brake oil pipe
Main electrical cable
The main electrical
cable is fixed to the
stand pipe support
