IF BANDWIDTH
Desired Signal Desired Signal Desired Signal
QRMQRM
IF BANDWIDTH IF BANDWIDTH
SHIFT SHIFT SHIFT
inTerFerence rejecTiOn
iF SHiFt opeRAtioN
(
SSb/cw/Rtty/pKt/AM ModeS
)
IF SHIFT allows you to move the DSP lter passband higher or lower, without changing the pitch of the incoming sig-
nal, and thus reduces or eliminates interference. Because the carrier tuning frequency is not varied, there is no need to
re-tune the operating frequency to eliminate the interference. The total passband tuning range for the IF SHIFT system
is ±1 kHz.
1. Rotate the
[
SHIFT
]
knob to the left or right to re-
duce the interference.
Advice:
The display will show the shift value of the IF
SHIFT for 3 seconds whenever the
[
SHIFT
]
knob is
turned.
Advice:
The center position of the IF passband will be memo-
rized independently on each VFO stack of VFO-A and
VFO-B.

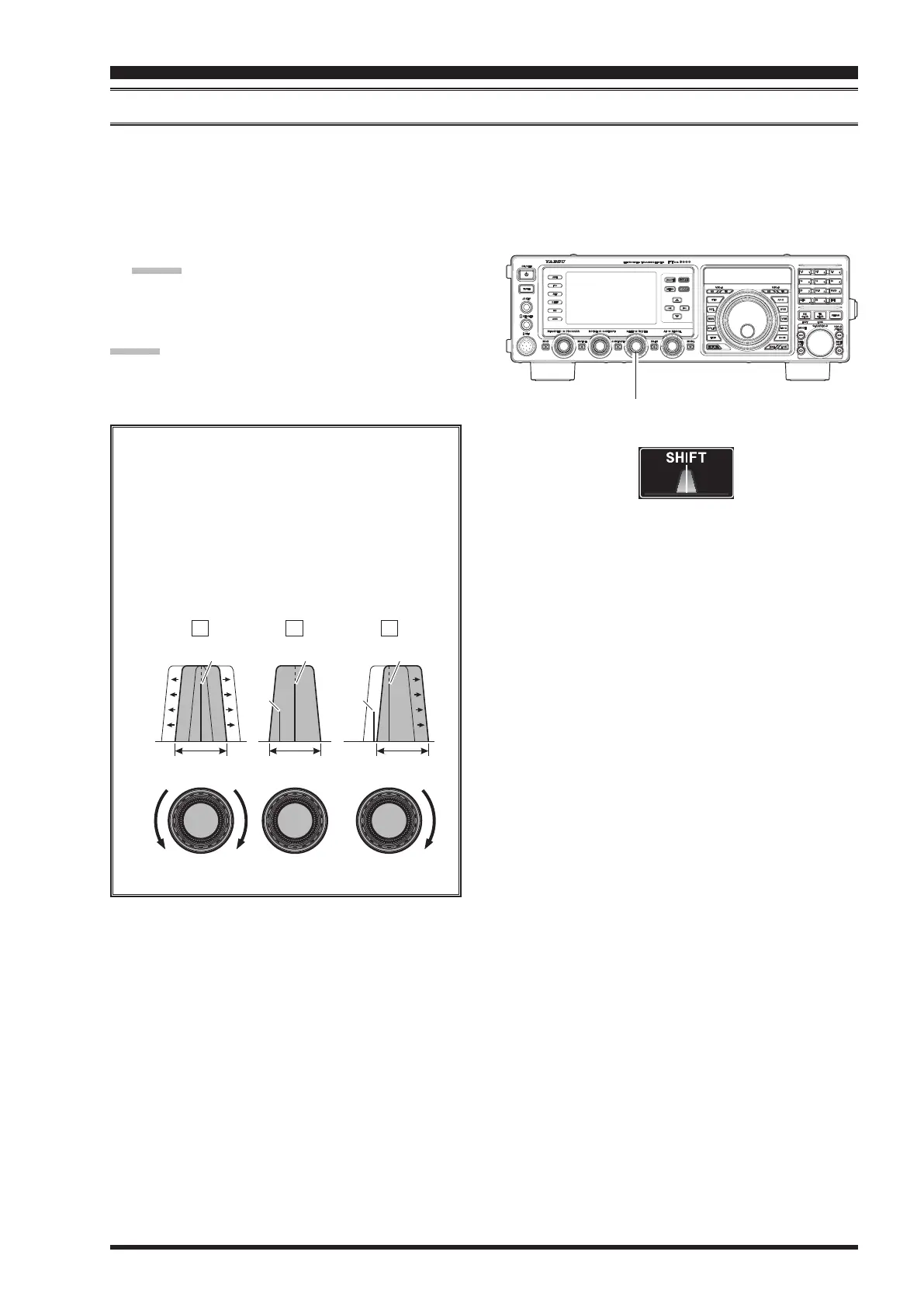

Referring to Figure “
A
”, note the depiction of the
IF DSP lter as the thick line, with the
[
SHIFT
]
knob in the 12 o’clock position. In Figure “
B
”, an
interfering signal has appeared inside the original
passband. In Figure “
C
”, you can see the effect
of rotating the
[
SHIFT
]
knob. The interference
level is reduced by moving the lter passband so
that the interference is outside of the passband.
[
SHIFT
]
Knob
A B C
SHiFt iNdicAtoR

Yaesu FT DX 3000 Specifications

General

Type	HF/50 MHz Transceiver
Antenna Impedance	50 ohms
Frequency Range	1.8 - 54 MHz
Modes	SSB, CW, AM, FM
Receiver Type	Triple conversion superheterodyne
Audio Output	2.5 W
Supply Voltage	13.8 V DC ±15%
Current Consumption	22 A
