1033644B-3/18

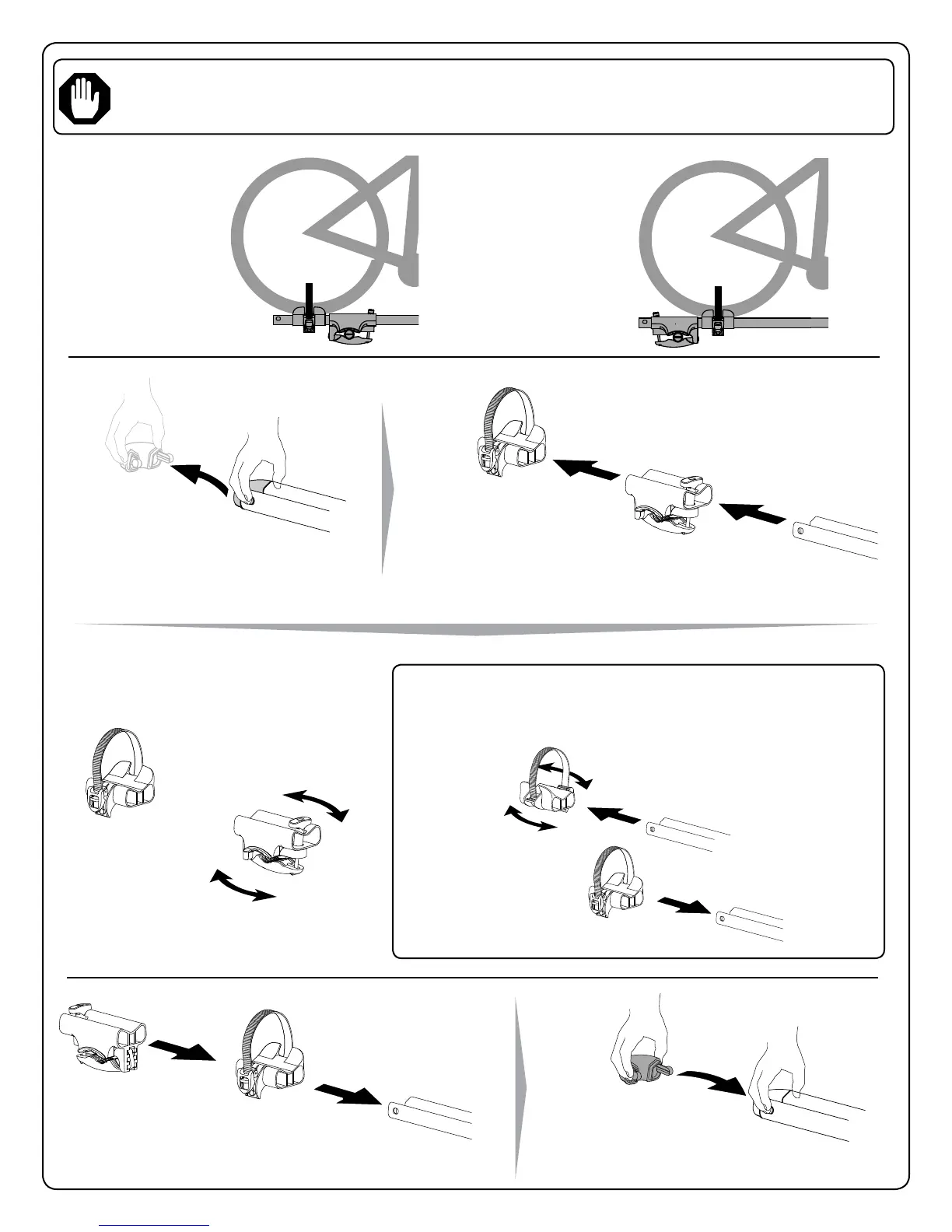

The rear clamp is configured for typical installations. In some situations adjustment may be necessary
if the wheel makes contact with the rear knob, or if the wheeltray cannot reach the wheel.
Wheel behind
rear crossbar.
OPTION A
Remove wheeltray
and rear clamp.
Flip orientation of
rear clamp 180˚.
Install endcap.
NOTE: You can flip the wheeltray or rear clamp independently
as needed. For instance if you needed the buckle on the
opposite side you could flip the wheeltray as shown.
Slide wheeltray and rear
clamp back onto forks.
Press the release
tabs on the end
cap and remove it.
Wheel ahead of
rear crossbar.
OPTION B
To Next Page
