Yakima JayHook - JayHook Installation Guide; Rack Assembly Steps; Mounting Rack to Vehicle

Instruction #1035832A-2/21

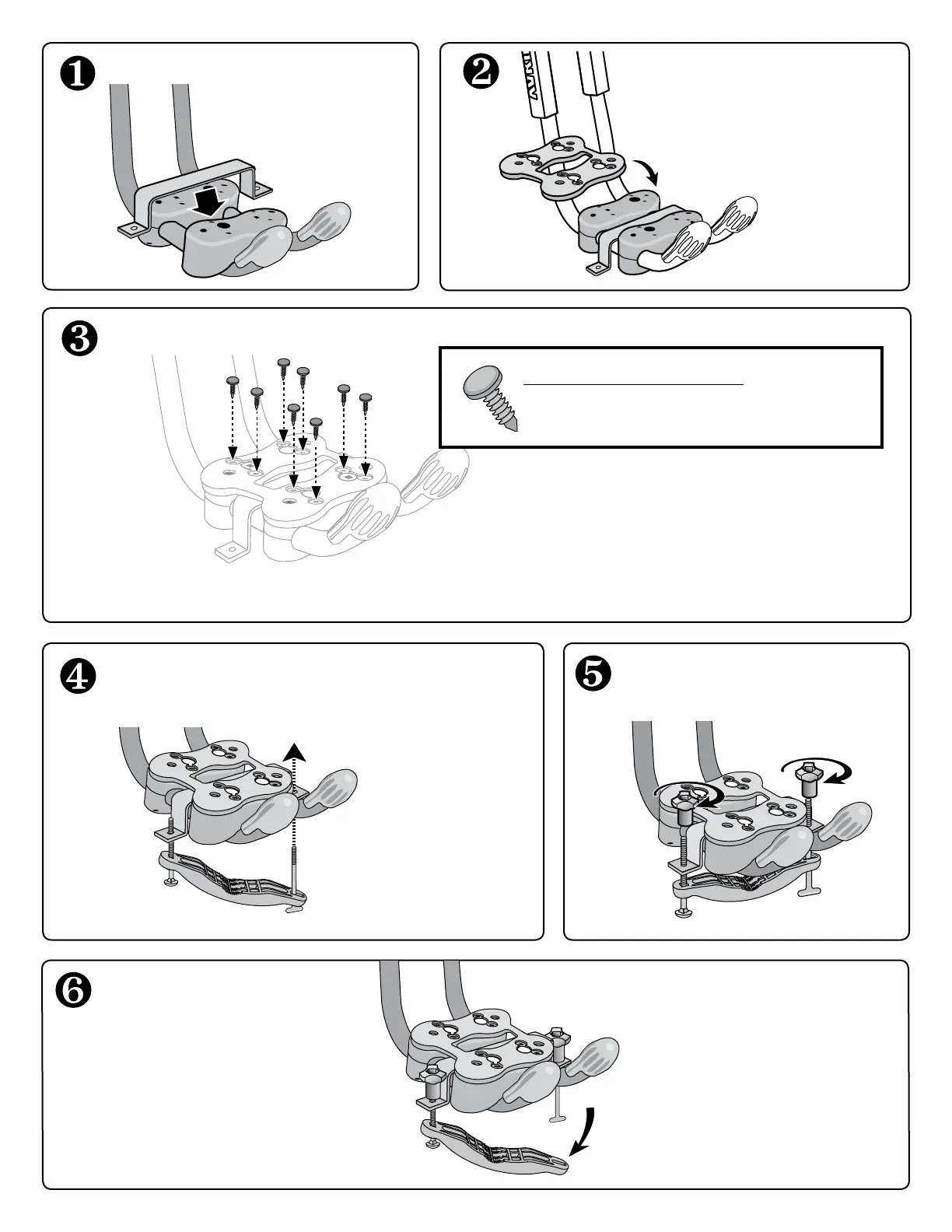

Install metal bracket
over bases.
With brackets in place,
attach pads onto bases.
Attach base pads to bases with plugs.
Plugs can be used only once.
If you reconfigure the bases, see your Yakima
Dealer for replacement plugs # 8890058.
ATTACH THE KNOBS.
Attach bails to metal brackets using long bolts.
Insert bolt into round
hole, and T-bolt
into slotted hole.
With the T-bolt free, position the
Jayhooks on the factory crossbars.
