Yakima ROC 4 - Bike Loading and Rack Operation; Loading and Securing Bikes; Final Checks and Folding Mechanism

–
B
– Bicycle–
– B
icycle
–
1032414B-4/15

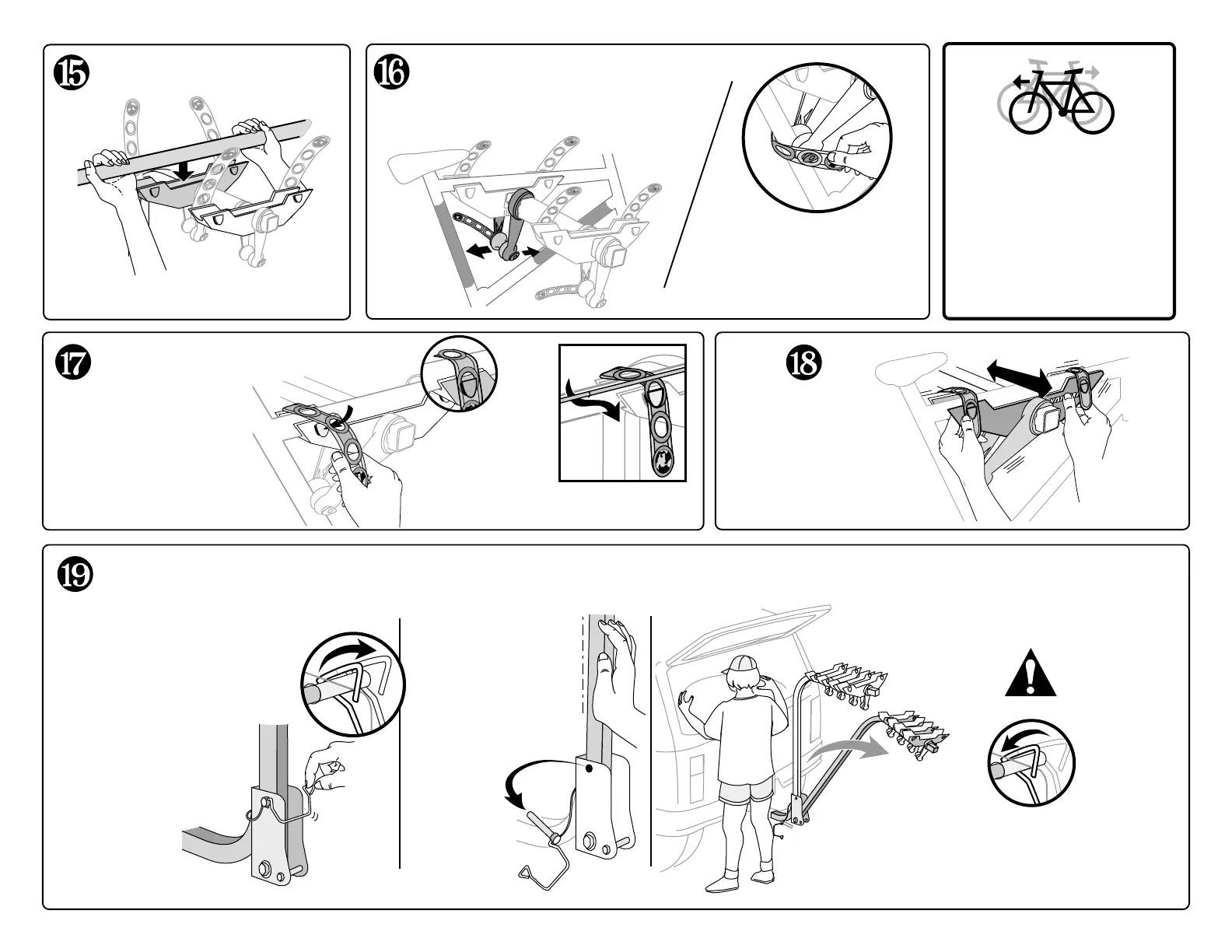

Load bikes in opposite
directions.
You may want to loosen
cradles and adjust bike
spacing.
Don’t forget to tighten
screws again!
Straps can be routed
between cables and tube.
Be sure straps are
secured onto cradle
hooks.
HOOK STRAPS OVER BIKE’S TUBE.
CHECK CRADLES!
Grab close to bar
with both hands.
TIGHTEN IF THERE IS
MOVEMENT.
TO FOLD MAST DOWN AND ACCESS THE REAR: UNLOAD THE BIKES.
Release safety hook
by pulling outward
on untethered end.
Slide pin out while
supporting mast.
Don’t forget to
replace pin AND
secure safety hook.
LOAD YOUR BIKE!
Nest bike’s top tube into first cradle.
ADJUST AND SECURE STABILIZERS.
Adjust stabilizer so rubber roller rests snug
against bike’s down tube or seat tube.
Secure stabilizers by
hooking straps over
bike’s tube.
