2．Application environment and parameters
Cooling way Natural cooling or radiator
Application
environment
workplace
Avoid dust, grease and
corrosive gas
Temperature
0℃－50℃
Humidity
40－90%RH
Vibration 5.9 m/s
2
Max
Save temperature
-20℃－+80℃
Weight
≈1500 克

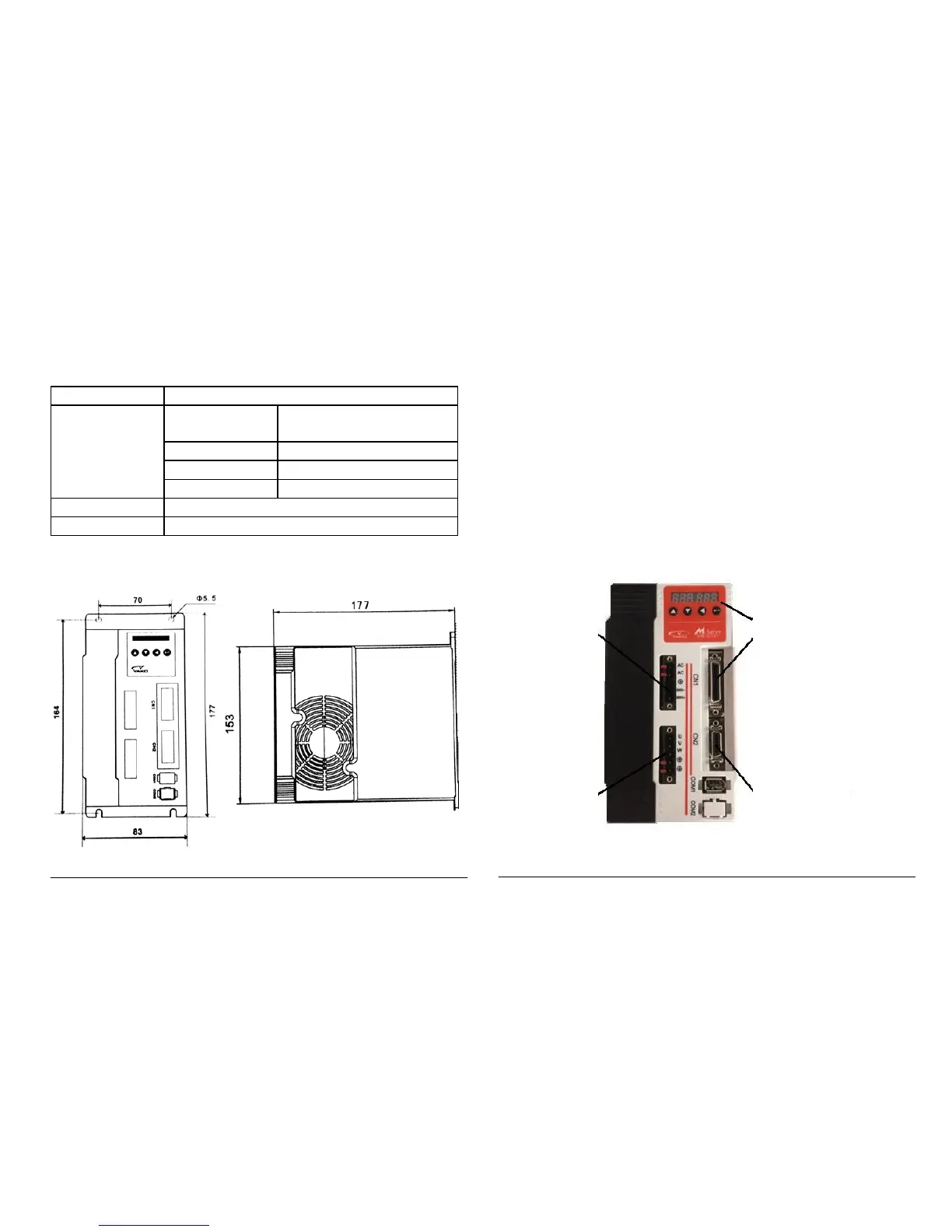

3．Installation size
4．Strengthen cooling ways
（1） The suitable temperature for driver is within 60℃, while the suitable
temperature for motor is 80℃;
（2） When installing the driver, please use vertical profiles, which can form
strong cross-ventilation; if necessary, install a fan near the driver to make
sure the driver works in suitable temperature.
三、Introduction of driver’s terminals and wiring
1. Terminals
Power input
terminal
Motor output
terminal
Display
Control signal
terminal
Encoder
feedback
terminal
