Pink 16 A+ Encoder A output+
differential
output signal
Light blue 18 A- Encoder A output-
White 35 B+ Encoder B output+
Light green 33 B- Encoder B output-

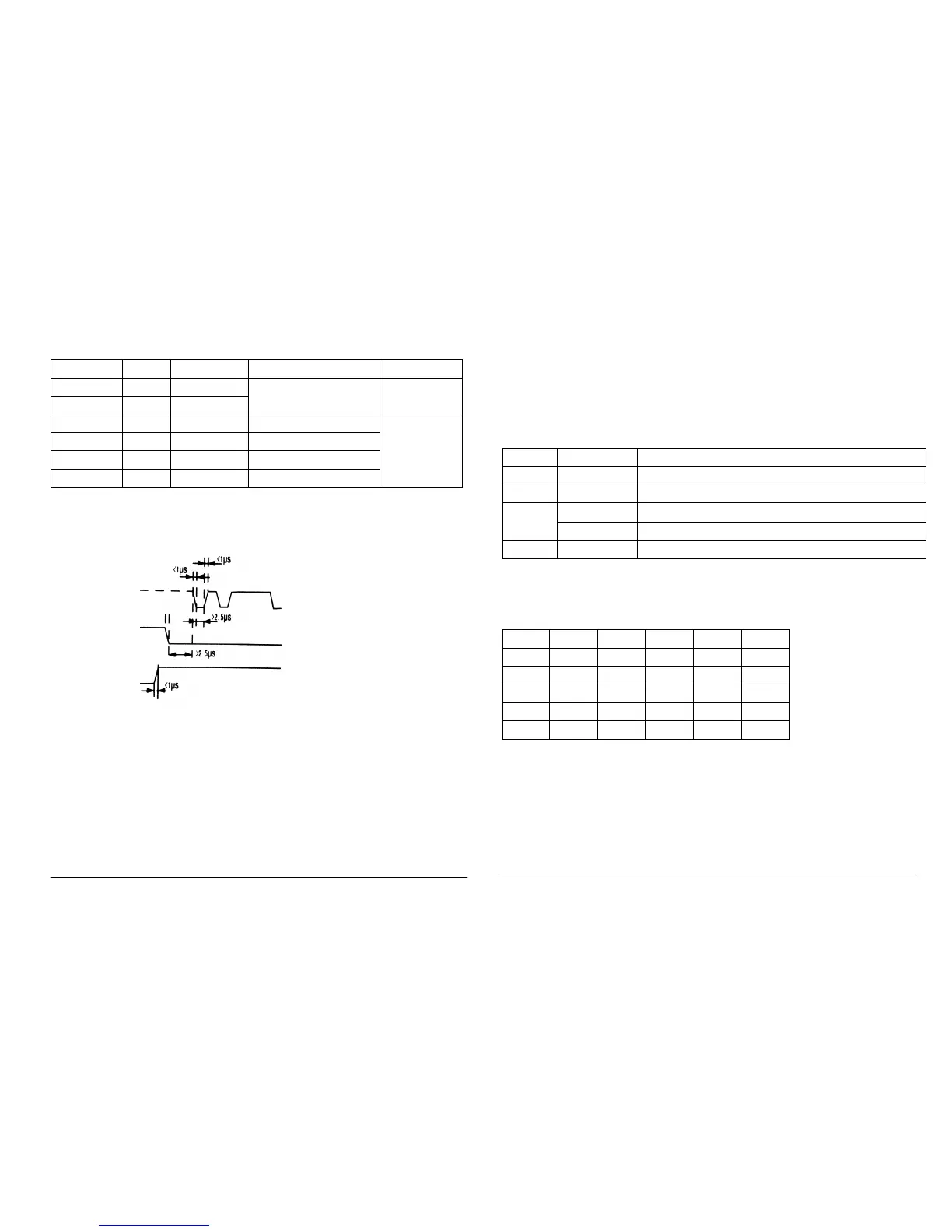

In order to avoid some mistake and deviation, PU,DR and MF should meet
requirements as below:
5）Communication terminal
Not open to users
6) Instruction
MS-LxP has one 6-bit digital tube display, the driver will stop work and
display the error code when the driver encounter some problem; and if
several errors happen at the same time, it will display one by one, and it can
save 10 latest errors in the driver’ EEPROM.
四、Menu display
1. Display interface
MS-LxP display interface has 4 keys, they are “up, down, move &cancel and
Enter. As following:
Key Name Function
▲ Up Move up or add the value
▼ Down Move down or reduce the value
◀
Move Short press this key means move
Cancel Long press this key means back or cancel
← Enter Enter next menu or confirm
2. Menu introduction
The system menu has 3 levels, level 1 menu includes 5 items, use key “Up”
and “Down” to shift those 5 items.
▼ dP -
▼ dE- ▲
▼ Sr - ▲
▼ EE- ▲
▼ PA - ▲
dP - ▲
1） System Monitor dP –
There are 14 pcs of level 2 menus under Dp-, which can monitor system’s
11 kinds of status. Under level 1 menu, use “Up” and “Down” to choose Dp-,
and then press ← to enter in level 2 menus as below:
PU Stepper
pulse signal
DR Direction
control signal
MF
To Next Page
