Yale 420F Series User Manual

2

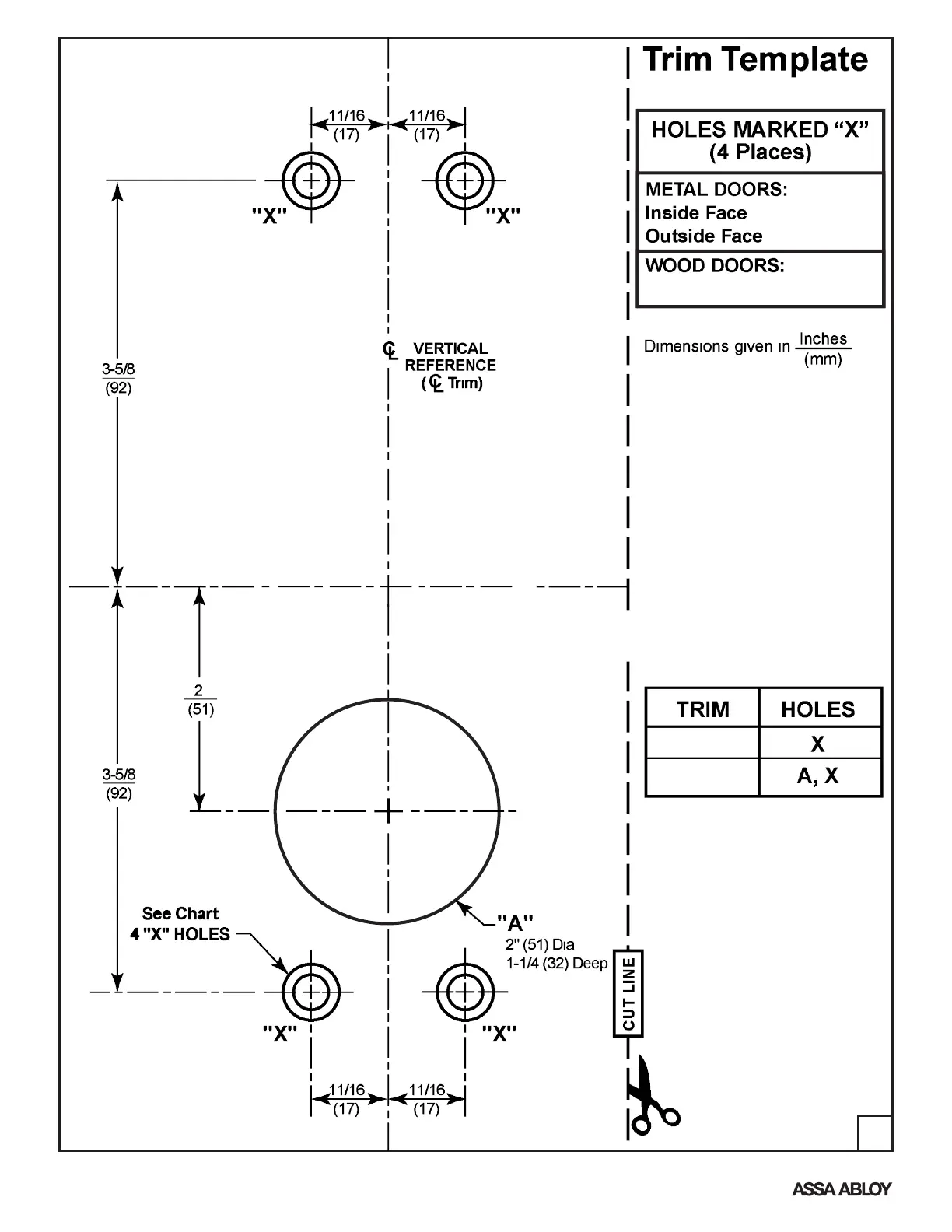

Outside Door
Face
1/2" (13) Dia.
5/16" (8) Dia.
1/2" (13) Dia. Thru
CAUTION: Office copiers and
facsimile machines may change
the size of a drawing and make
the template inaccurate to use as
a door marker.
If this is not the original template
packed with the trim, use only the
holes on the door (do not use
template as a door marker).
HORIZONTAL
REFERENCE
C
L
(Device and Trim)
C
L
420F
429F
An ASSA ABLOY Group brand
80-8470-0420-000 (01-13)
