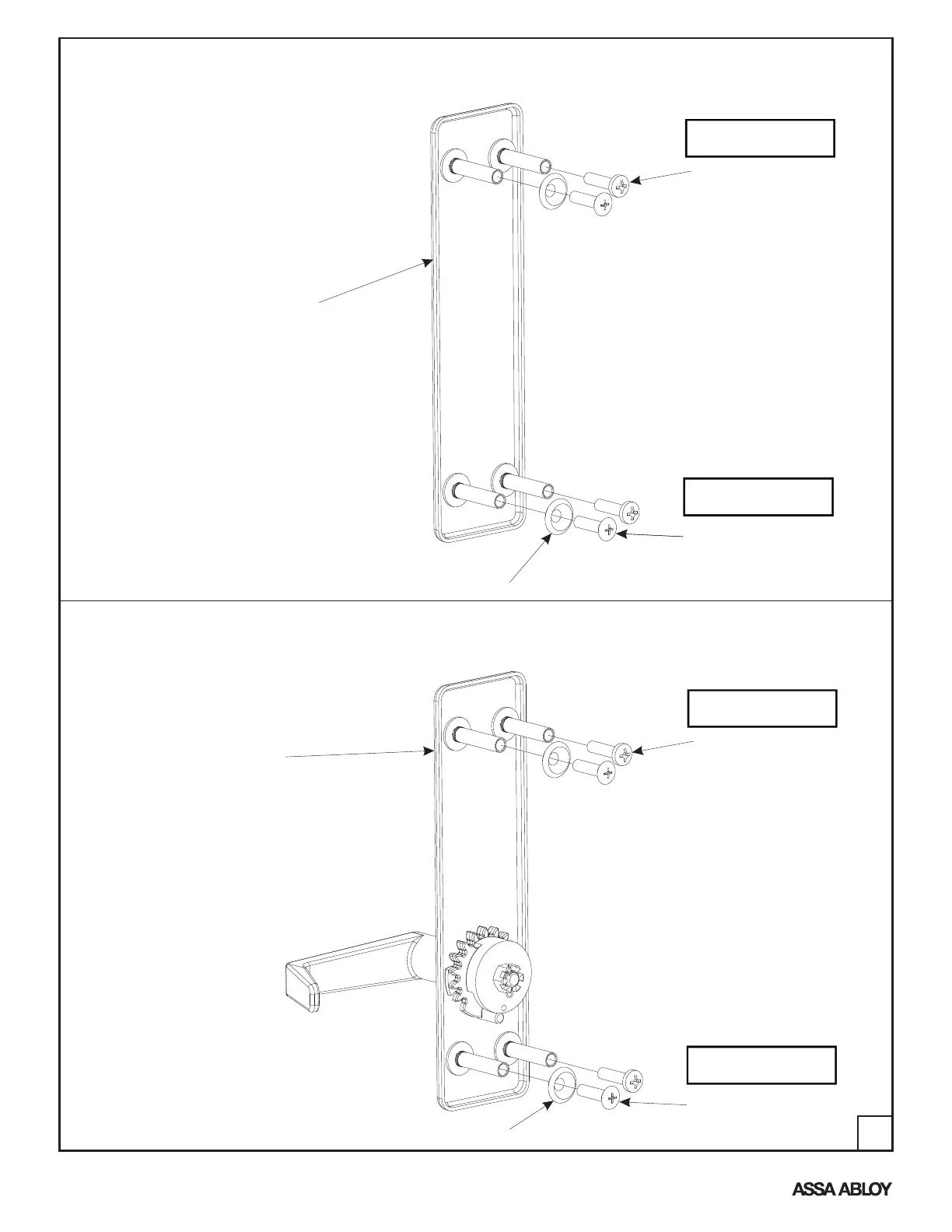

Trim Components
3
429F Series
Dummy Trim
Escutcheon Assembly
Lever is handed RHR (shown) or LHR
To Change Handing:
Remove cotter pin, nut, hub, and gear. Rotate
lever for opposite handing. Reassemble gear
with teeth engaging set screw to lock lever in
place. Reassemble hub, nut, and cotter pin.
(2) #14 Finishing Washers
2 STUDS AWAY
FROM LOCK EDGE
(2) 1/4-20 Oval Head
Machine Screws
2 STUDS AWAY
FROM LOCK EDGE
(2) 1/4-20 Oval Head
Machine Screws
2 STUDS TOWARDS
LOCK EDGE
(2) 1/4-20 Pan Head
Machine Screws
Packed with device
420F Series
Blank Trim
2 STUDS TOWARDS
LOCK EDGE
(2) 1/4-20 Pan Head
Machine Screws
Packed with device
2 STUDS AWAY
FROM LOCK EDGE
(2) 1/4-20 Oval Head
Machine Screws
(2) #14 Finishing Washers
Escutcheon Assembly
2 STUDS AWAY
FROM LOCK EDGE
(2) 1/4-20 Oval Head
Machine Screws
An ASSA ABLOY Group brand
80-8470-0420-000 (01-13)
