Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20

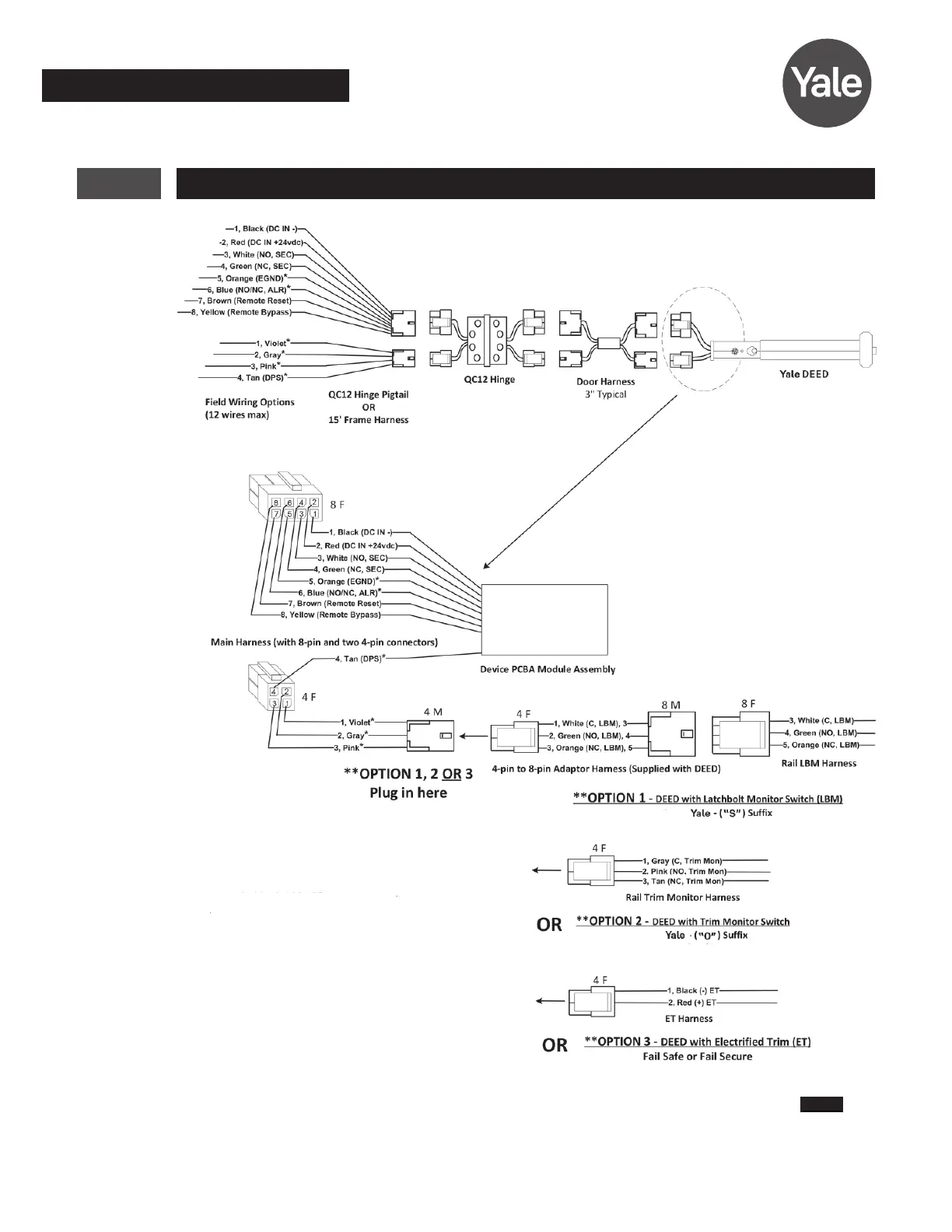

10 ElectroLynx Wiring Options Overview with QC12 Hinge, continued
Figure 7
To Next Page
