Yale EF-IPBox User Manual

4
Unpack all the parts

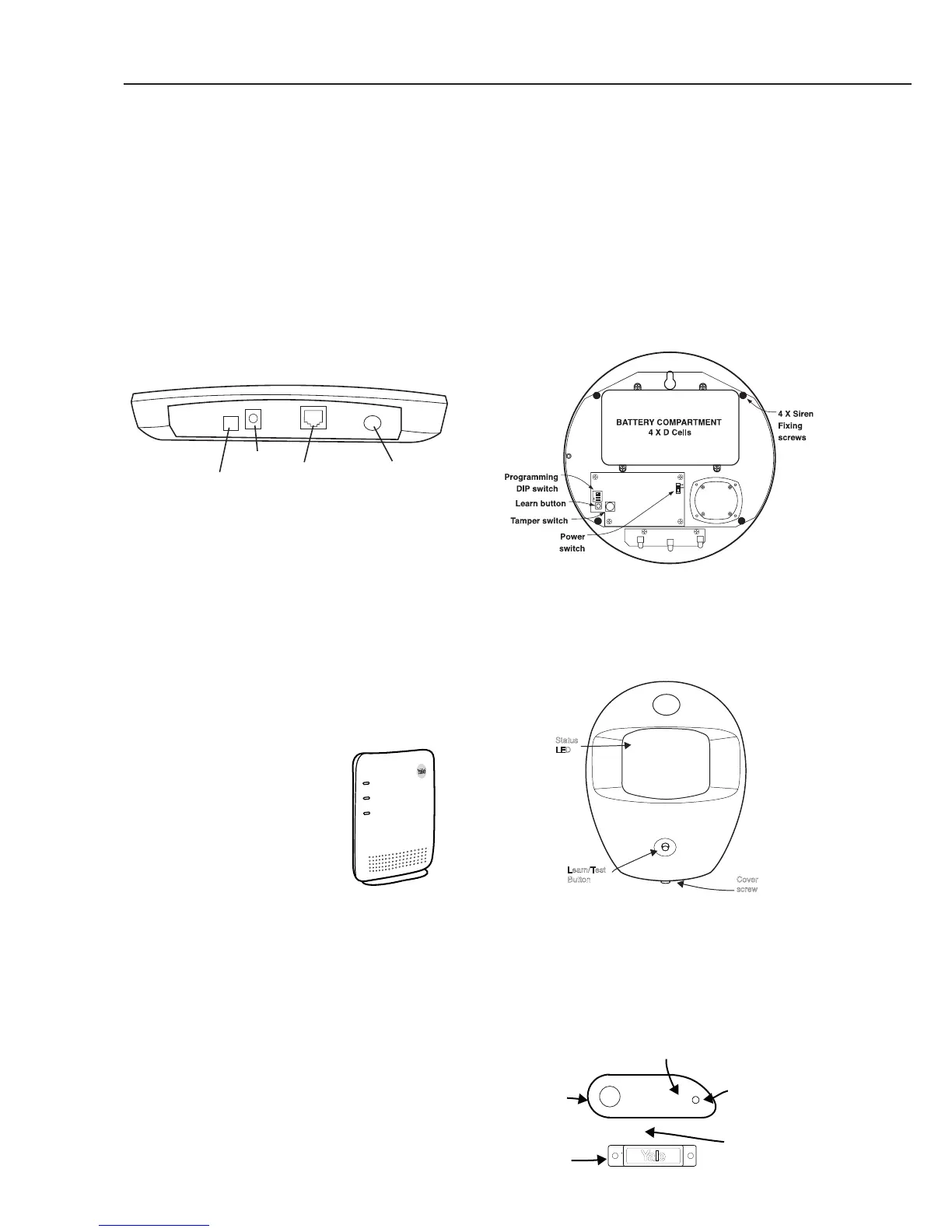

Control Box EF-IPBOX
Unpack the kit content on a table. Remove the
mounting plate (if fitted) from the control unit by
sliding plate downwards. A power adaptor is
supplied that plugs into the main wall socket and
control unit. Plug in the power adaptor and connect
the box to your internet router using the cable
provide.
•Inadditiontotheadapter,thereisarechargeable
battery inside the control unit that serves as a
backup in case of a power failure. A fully charged
battery can provide backup power for a period of
at least 10 hours. It takes approximately 72 hours
to fully charge the battery.
•Removetherubberbatteryswitchcoverand
locate the battery switch. Switch ON the internal
battery and replace the rubber cover.
2
Siren EF-BX
WARNING
The siren is very loud, be prepared! Take care not to
activate the siren tamper switch unnecessarily.
1 Remove the cover by unscrewing the single screw
located on the lid. Power switch to ON position.
PIR Movement Detectors EF-PIR
1 Pull out the plastic pull tab on the back of the PIR.
This will activate the batteries.
Door/Window Contacts EF-DC
1 Pull out the battery saver tab on the side to activate
the battery.
Learn
Power
Battery
<On Off>
Battery switch
Network Port
(connect to Broadband
Internet router)
Power socket
Learn button
(press and hold
for 3 secs)
ale
Y
Status
LED
Learn/Test
Button
Cover
screw
ale
Y
Learn/Test
button
LED
Gap no more
than 10mm
Magnet
Sensor
Top LED 1 (Panel Status)
Red ON: System Arm
FLASH: Home Arm
Green ON: Disarm
FLASH: Learn mode
OFF: Walk test mode
Middle LED 2 (Alarm & Fault Status)
Red ON: Alarm been triggered
FLASH: Ongoing alarm event
Yellow ON: Device fault (Tamper/Low battery)
FLASH: Mains power failed
OFF: Normal
Bottom LED 3 (Operation Status)
Yellow ON: Network problem.
FLASH: Disconnected from Yale server
Green ON: Normal
