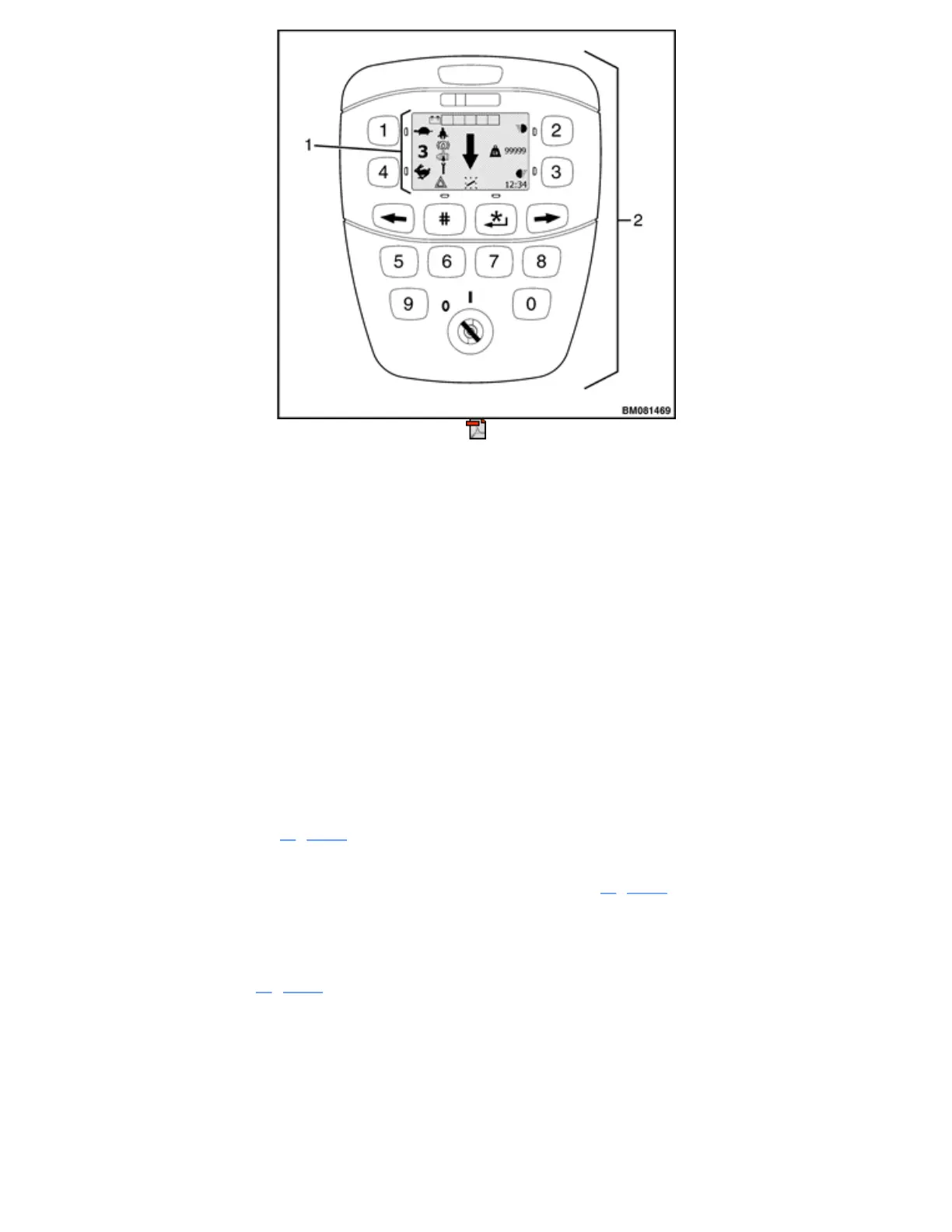

1.
LCD SCREEN
2.
DISPLAY PANEL
Figure 4. Display Panel With Operating Screen Displayed
Keys used for menu navigation include:
•
The 1, 2, 3, 4, and # keys.
•
The Enter Key (*) which is also called the star key because of its * label.
•
The Scroll Back Key (!!—) and the Scroll Forward Key ( —▸). These keys are explained in detail in
the General section of this document.
The Password Screen, discussed in the Adding/Removing/Changing Passwords topic in the Password Screen
section, is the first screen displayed when the key switch or keyless switch is turned to the On position unless
Operator Passwords are deactivated (in this case, the Activity Log Title Screen appears). After entering your
password successfully, the system displays the Operating Screen on the orange 1.5 x 2.5 inch LCD screen of
the Display Panel as shown in Figure 4.
When a title screen or a menu screen is displayed on the LCD screen, the screen is still referred to as the
“screen” in a generic way, but the actual Operating Screen is shown in Figure 4. See the Operating Screen
section for details.
When the Operating Screen is displayed, pressing the Scroll Forward Key (—▸) causes the system to display
the Password Screen. If you press the Scroll Forward Key a second time, the system displays the Activity
Log Title Screen, shown in Figure 5, on the LCD screen.
