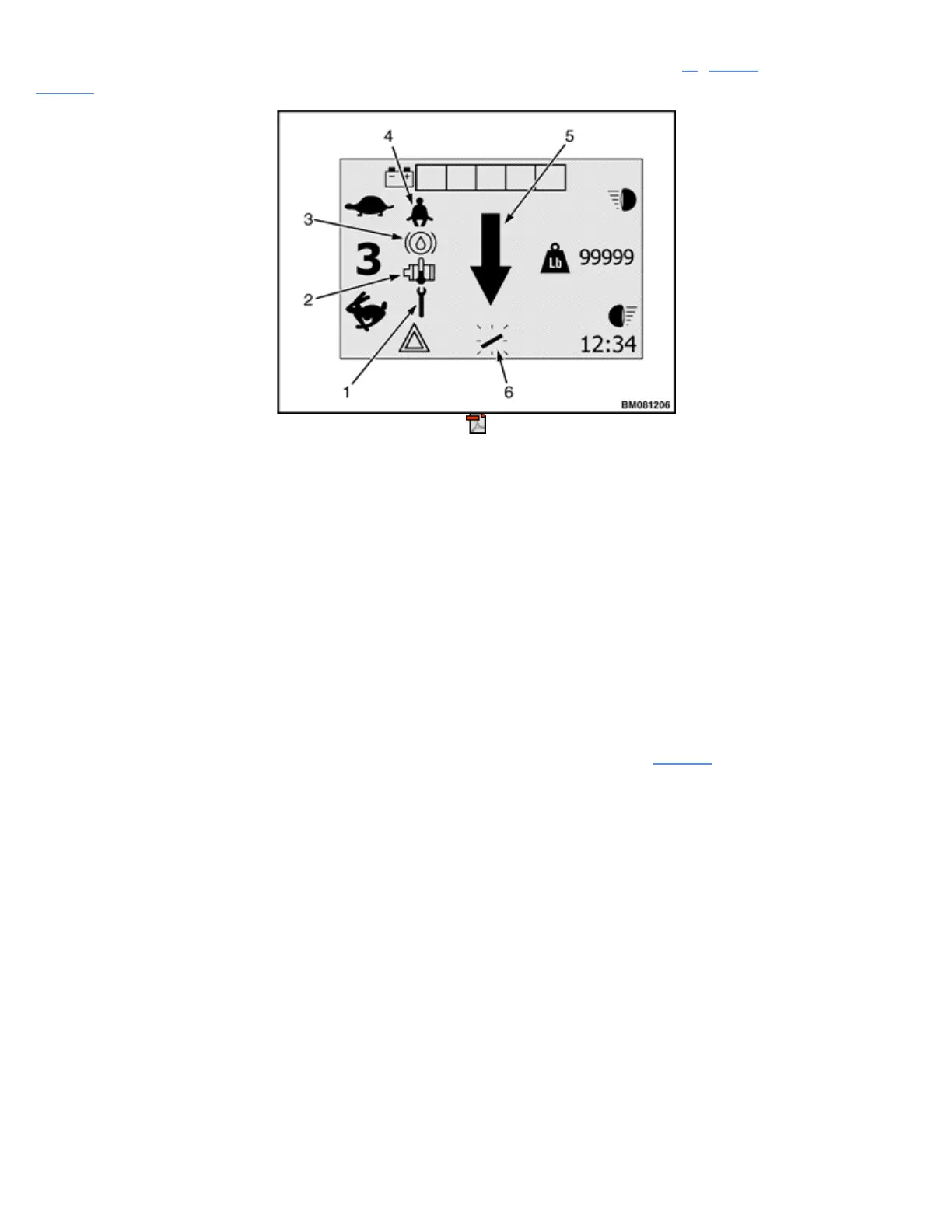

When the truck is powered ON, the system continuously monitors a number of parameters and displays up to
six icons to provide status information and warnings to the operator, as shown in Figure 11. Also see the
Table 6 topic.
1.
SERVICE DUE
2.
MOTOR TEMPERATURE HIGH
3.
BRAKE FLUID LOW WARNING
4.
SEAT BELT WARNING
5.
DIRECTION / PARK BRAKE INDICATORS
6.
STEER ANGLE
Figure 11. Status and Warning Icons
NOTE: Icons for front and rear lights are shown. These are optional features.
Depending on conditions, the following icons can appear in this area (see the Table 6 topic):
•
Wrench Icon
•
Temperature High Icon
•
Brake Fluid Low Icon
•
Hydraulic Fluid Level Icon
•
Hydraulic Filter Icon
•
Fasten Seat Belt Icon
When the wrench icon is continuously ON, it means that scheduled maintenance is due. When it is flashing, it
indicates that an active fault has been detected by the system. The wrench icon appears in the bottom location
of the status/warning icon area when it is displayed. It has the lowest priority of the three icons, wrench,
hydraulic filter, or hydraulic fluid level, that can be displayed in this location.
The hydraulic filter icon shows in the same location, in place of the wrench icon, if a hydraulic filter
restriction is detected. It has the second highest priority of the three icons that can be displayed in this
location.
The hydraulic fluid level icon shows in the same location, in place of the wrench icon or the hydraulic filter
To Next Page
