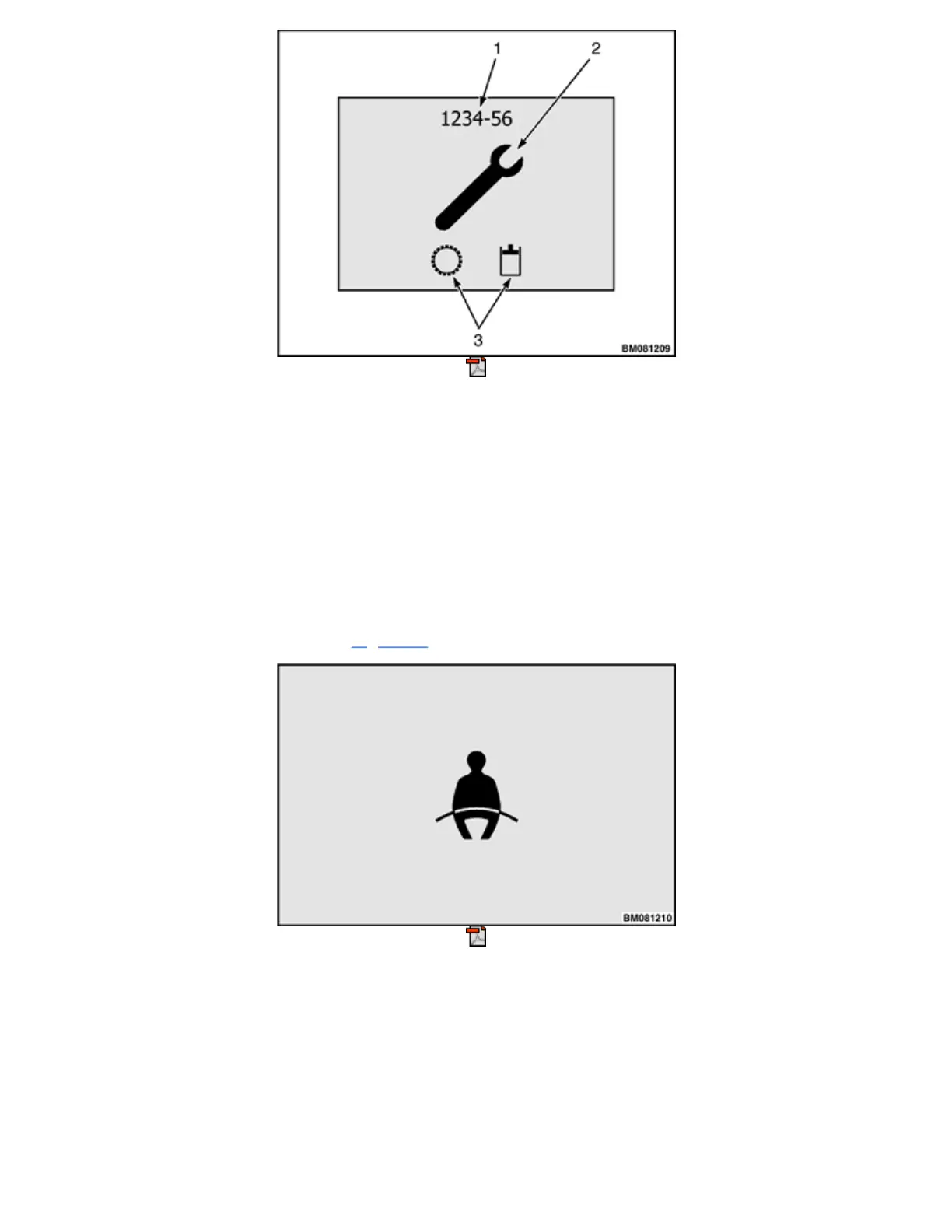

1.
EXAMPLE FAULT CODE
2.
WRENCH ICON
3.
ICONS OF DISABLED/PERFORMANCE LIMITED FUNCTIONS
Figure 14. Example Fault Screen
The Interlock Notification Screen appears whenever the operator tries to apply an input that is not available
because one or more interlock conditions have not been met. For example, if the operator is not seated and
tries to apply the accelerator pedal, the system will switch from the Operating Screen to an alert screen
showing the seat belt icon, as shown in Figure 15.
Figure 15. Example Interlock Alert Screen
In this example, if the operator releases the accelerator pedal, the system will change the screen back to the
Operating Screen. Alternatively, the operator can press either the Scroll Back Key or the Scroll Forward
Key to go to a top-level menu but the accelerator pedal input will still be unavailable because the interlock
condition has not been met.
Password Screen
