determine the range of allowable values for this setting. This means a setting of 1% the value is the lowest
available setting for the minimum standby pump flow rate and it is equal to the lowest defined value in the
CDF. A 100% value is the highest available setting for the minimum standby pump flow rate. The example

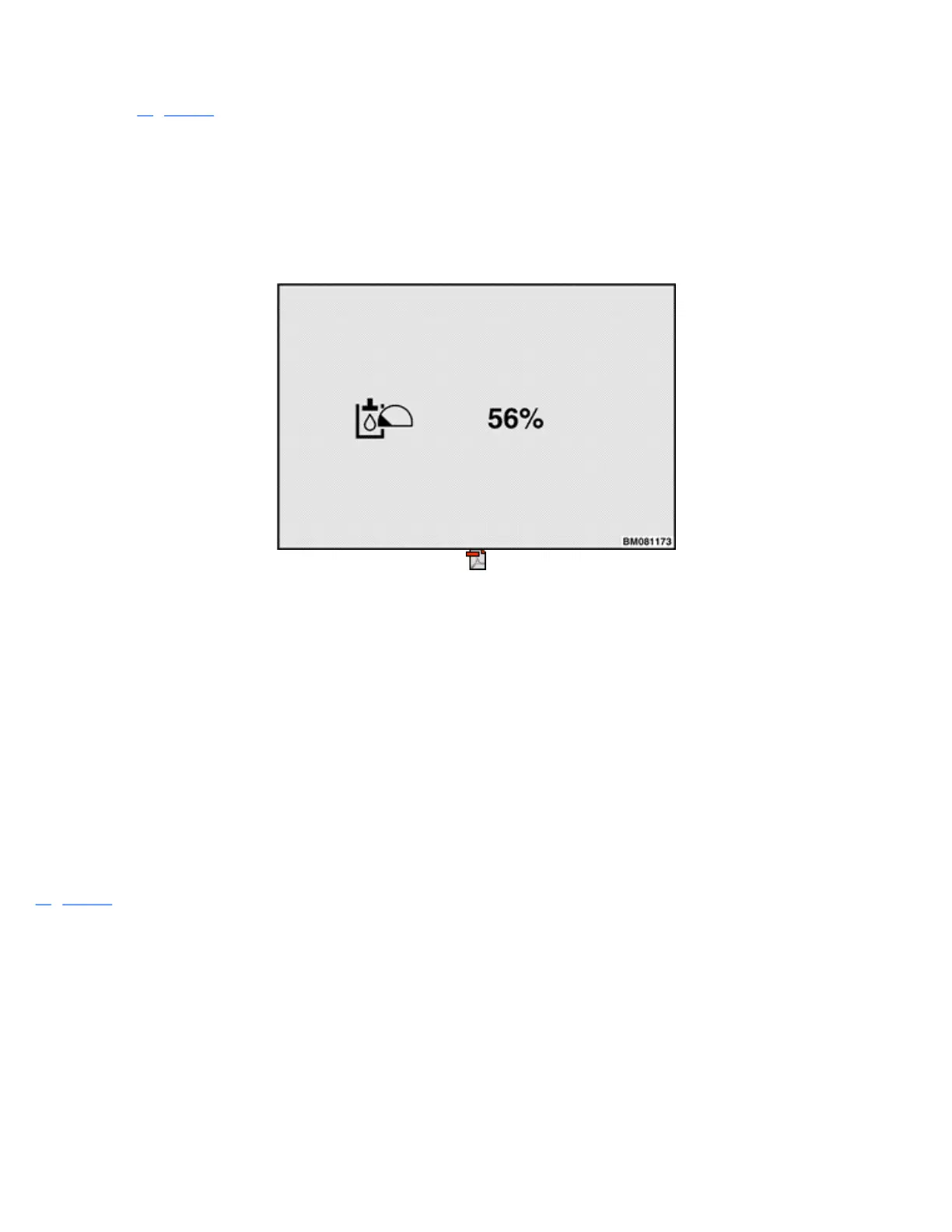

presented in Figure 61 shows the icon for minimum pump standby flow rate and a current value of 56, which
means the value is 56% of the maximum allowed.
NOTE: A setting of 0% turns the standby flow off which may result in decreased steering
performance.
To change the setting for the minimum standby pump flow rate, use the number keys to enter the new rate
desired, then press the Enter Key to save the new setting. The value of this setting can range from 0% to
100% in steps of 1%.
Figure 61. Minimum Pump Standby Flow Rate Screen
OPERATOR CHECKLIST
NOTE: This submenu is available to logged in Supervisors and Service Technicians.
A Supervisor or a Service Technician can use this menu to program the checklist items that will be displayed
to users.
The lift truck system can be set up to display all, some, or none of the 30 items in the Operator Checklist
when the key switch or keyless switch is turned on. Each checklist item is represented by a separate icon.
During setup, the 30 icons are displayed, one at a time, in the middle of the screen. If an X appears over the
icon when it is displayed, the checklist item represented by the icon is inactive (deactivated) and the checklist
item will not appear during the Operator Checklist sequence. If there is no X over the icon, the checklist item
is active (enabled).
Figure 62 shows the Activate/Deactivate Checklist Item Screen with an icon that represents a checklist item.
