Yale ERP15-20VT

Master Cylinder Repair 1800 YRM 1332
1. CYLINDER HOUSING
2. PISTON ASSEMBLY
3. CUP
4. PISTON
5. SPACER
6. CUP
7. RETAINER
8. SPRING
9. RETAINING RING
10. BOOT
11. PUSH ROD
12. NUT
13. CLEVIS PIN
14. CLEVIS
15. WASHER
16. COTTER PIN
17. CLAMP
18. RESERVOIR
19. GASKET
20. CAP

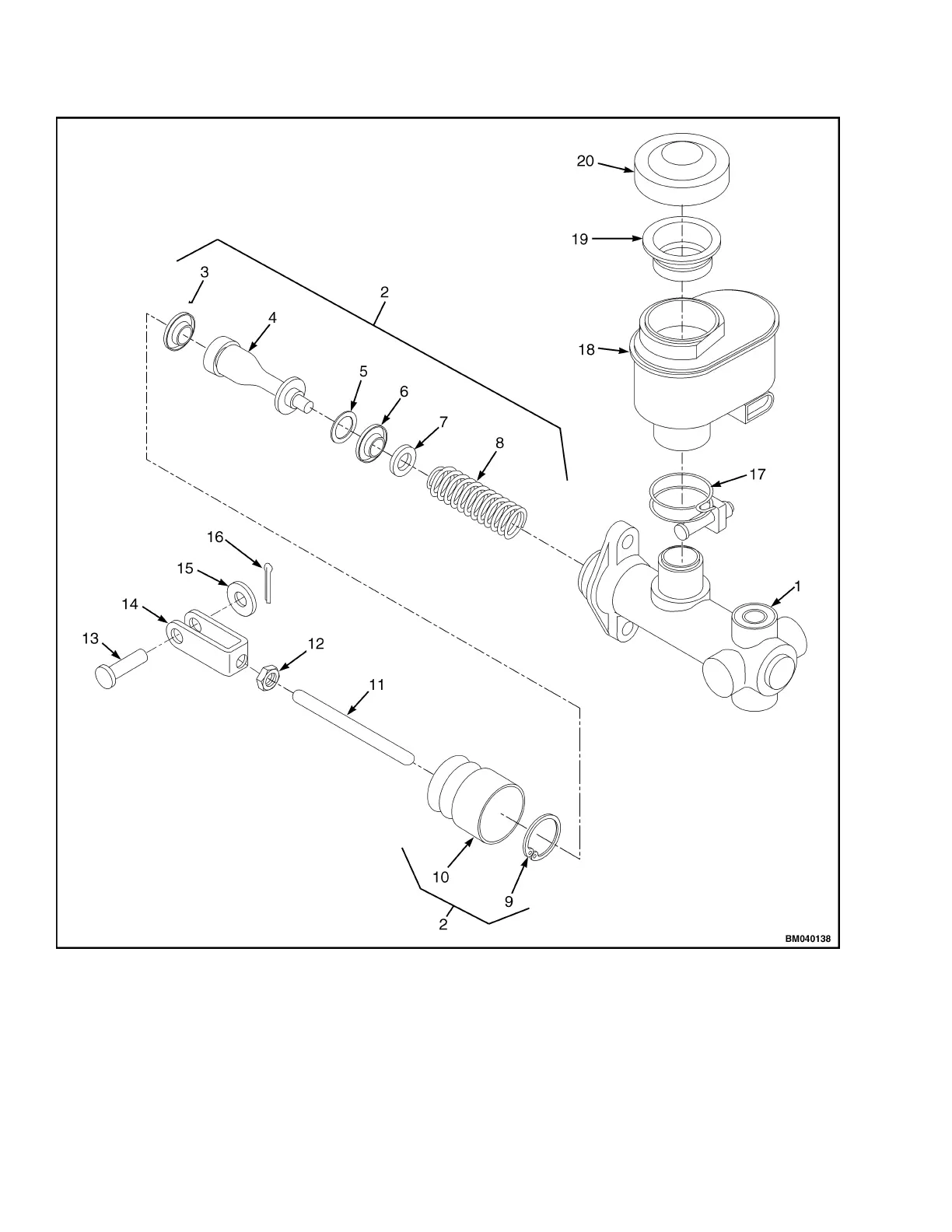

Figure 9. Master Cylinder
6
