1300 YRM 1330 Maintenance and Repair
4. Position new cap over mast pin and onto transaxle.
5. Apply Loctite® 242 to threads and install four cap-
screws and tighten alternately in small increments.
Tighten capscrews to 24 N•m (216 lbf in).
6. Grease fitting in mast stub shaft to lubricate trun-
nion cap.
7. Connect battery, turn key to ON position and test lift
truck for proper operation.

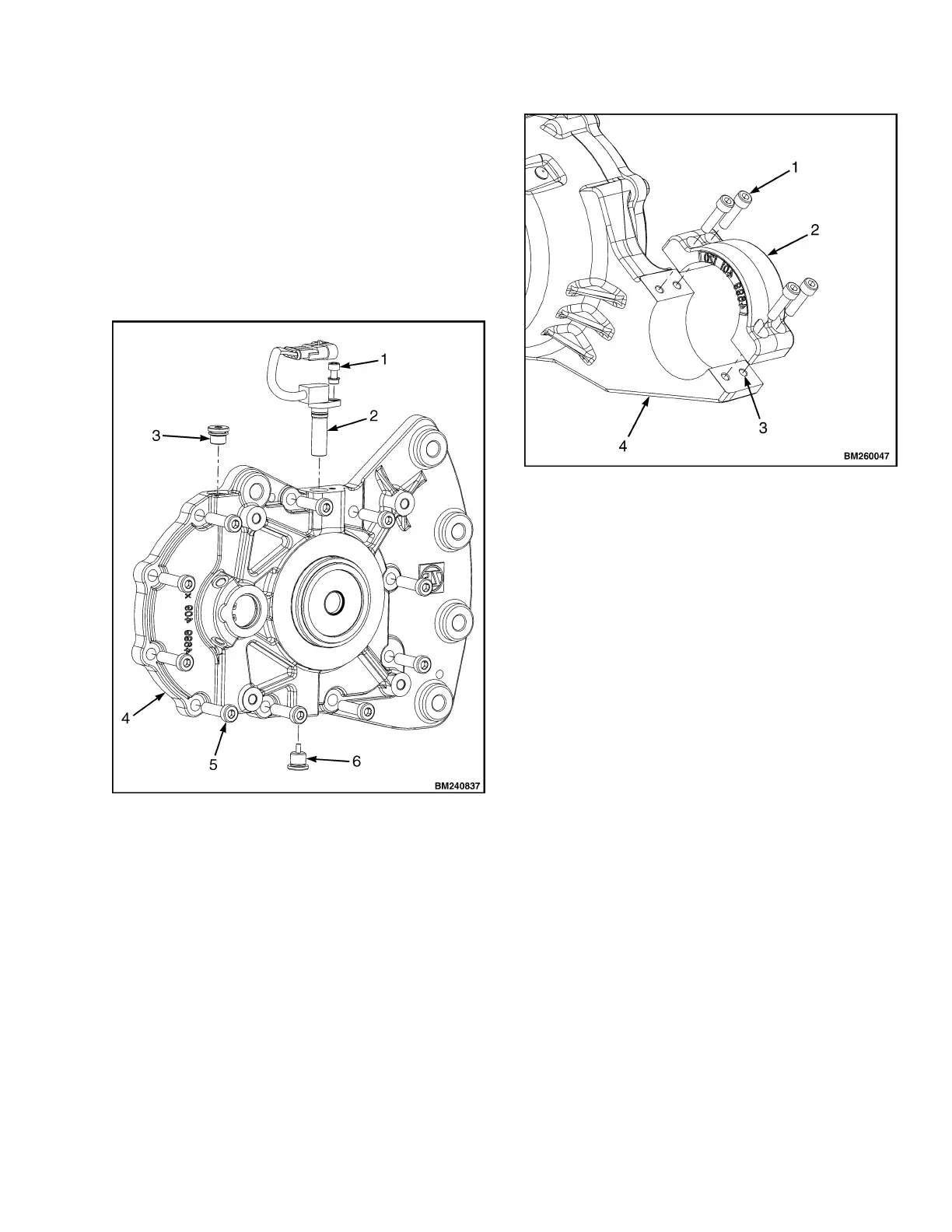

1. CAPSCR
EW
2. SPEED SENSOR
3. FILL PLUG
4. TRANSAX
LE COVER
5. COVER CAPSCREWS
6. DRAIN PLUG
Figure 5. Speed Sensor
1. CAPSCREWS
2. TRUNNION CAP
3. THREADED MOUNTING HOLES
4. TRANSAXLE HOUSING
Figure 6. Trunnion Cap
7
