1. SUPPORT BRACKET NUT
2. VALVE ADJUSTING SCREW LOCK NUT
3. VALVE ADJUSTING SCREW
4. ROCKER ARM SHAFT
5. ROCKER ARM SHAFT RETAINING RING
6. SUPPORT BRACKET STUD
7. SUPPORT BRACKET
8. ROCKER ARM SHAFT SPRING
9. ROCKER ARM
10. SUPPORT BRACKET BOLT
11. ROCKER ARM SHAFT RETAINING SCREW
12. CYLINDER HEAD

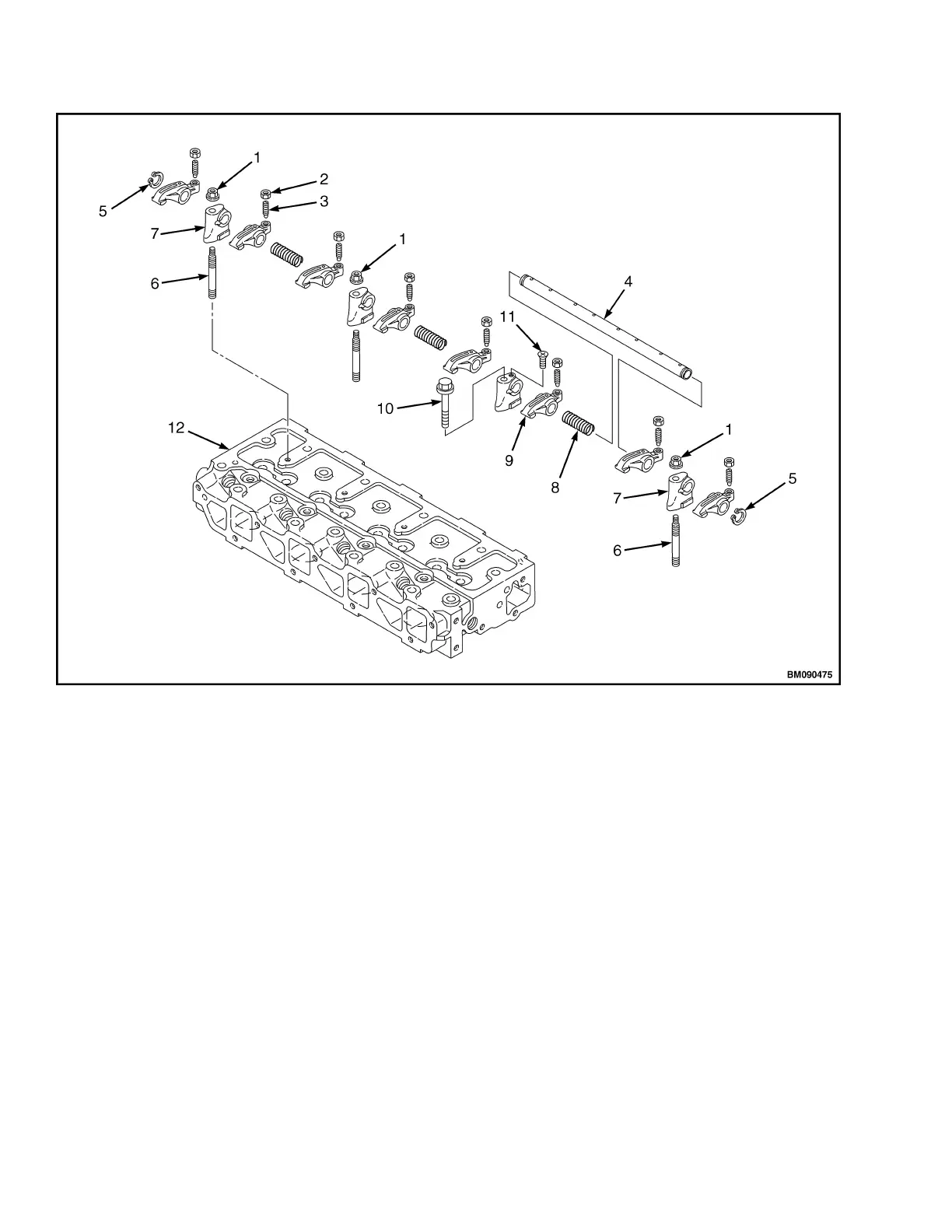

Figure 7. Rocker Arm Assembly
Cylinder Head Assembly Repair 0600 YRM 1205
