Fuel Tank
The fuel tank is a welded structure contained within
the frame of the forklift truck. The capacity of fuel tank
for 2-2.5t is 59 liter (15.6 gal), and 65 liter (17.2 gal) for
3-3.5t forklift trucks. The Fuel Level Sensor is fitted on
the tank cover of fuel tank to detect the fuel level. See
Figure 3 or Figure 4.
1. PORT SEALED
2. FUEL LEVEL
3. FLOAT RISE
4. FLOAT DROP
5. OIL INLET
6. GAS FILTER

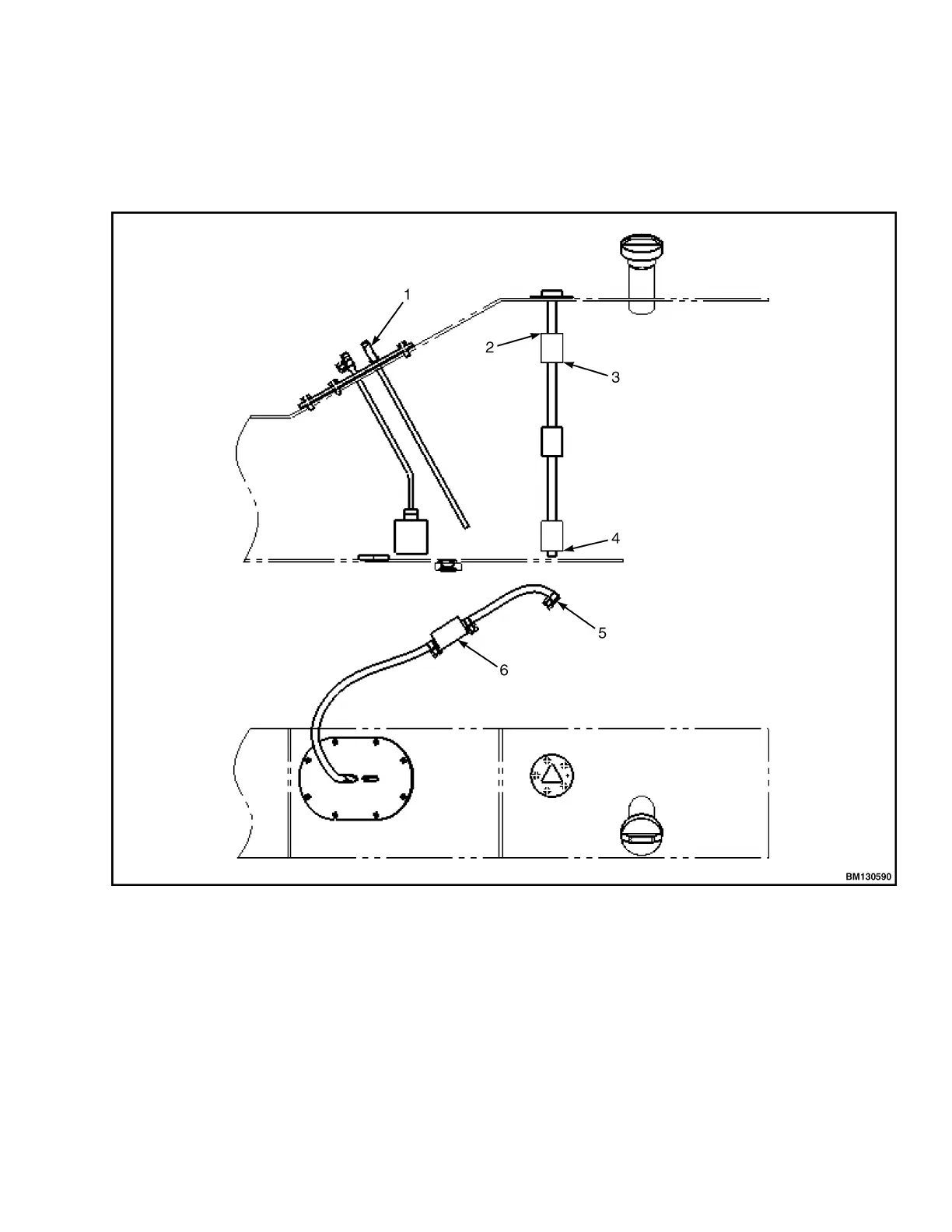

Figure 3. Fuel Tank (Gasoline Forklift Truck)
8000 YRM 2199 Power System
7
