Yale GLP90VX - Engine and Transmission Mounting Arrangement for Kubota Engines; Glp;Gdp45 Vx6; Glp;Gdp50-55 Vx (Gp;Glp;Gdp080, 090, 100, 110, 120 Vx) (F813)

NOTE: PART OF FRAME NOT SHOWN FOR CLARITY.
A. KUBOTA 3.8L DIESEL ENGINE FOR LIFT TRUCK MODELS GLP/GDP40VX5/VX6; GLP/GDP45SVX5,GLP/
GDP45VX6, GLP/GDP50-55VX (GP/GLP/GDP080, 090, 100, 110, 120VX) (H813)
B. KUBOTA 3.8L DIESEL ENGINE FOR LIFT TRUCK MODELS GLP/GDP40VX5/VX6; GLP/GDP45SVX5,
GLP/GDP45VX6; GLP/GDP50-55VX (GP/GLP/GDP080, 090, 100, 110, 120VX) (J813)
C. KUBOTA 3.6L DIESEL ENGINE
1. TRANSMISSION ISOLATOR ASSEMBLY
2. TRANSMISSION MOUNTING BRACKET
3. ENGINE ISOLATOR ASSEMBLY
4. ENGINE MOUNTING BRACKET
5. ENGINE HARNESS CONNECTOR
6. FRAME

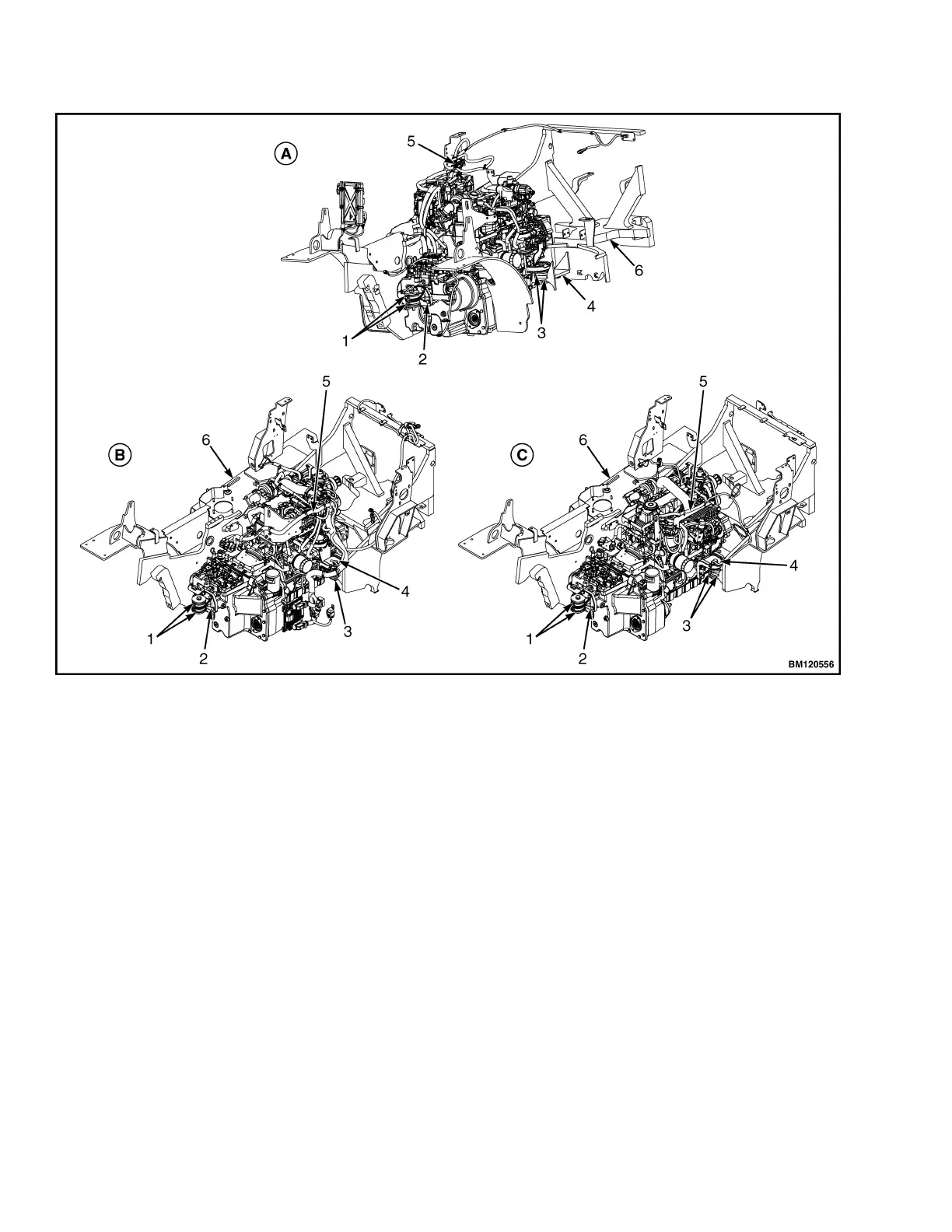

Figure 24. Engine and Transmission Mounting Arrangement for Kubota Engines
Engine Replacement 0100 YRM 1243
