Proc_Cal_019: Mazda LP and Gas Accelerator Pedal Adjustment
REQUIRED TOOLS
LPG:
• 13mm Open-End Wrench
Gas:
• #3 Phillips Head Screwdriver
• 10mm Open-End Wrench
• 13mm Open-End Wrench
WHEN TO PERFORM
Perform when adjusting or first installing an accelera-
tor pedal assembly on fork trucks equipped with the
Mazda LP and Mazda gas engines and electronic
control transmission.
CALIBRATION ORDER
1. Proc_Cal_001
2. Proc_Cal_019
WHY PERFORM
Sets the lost motion in the throttle assembly for the
proper operation of the clutch pack braking and in-
ching functions.
HOW TO PERFORM
WARNING
Keep yourself and all others clear of the lift mech-
anism. Never allow anyone under or on the forks.
Never put hands, arms, head, or legs through the
mast or near the carriage or lift chains. This warn-
ing applies not only to the operator but also the
helper. A helper must not be near the load or the
lift mechanism while the operator is attempting to
handle a load. The lift mechanism has moving
parts with close clearances that can cause seri-
ous injury.
Refer to Table 21 for the procedures on how to per-
form Proc_Cal_019: Mazda LP and Gas Accelerator
Pedal Adjustment.
Table 21. Proc_Cal_019: Mazda LP and Gas Accelerator Pedal Adjustment

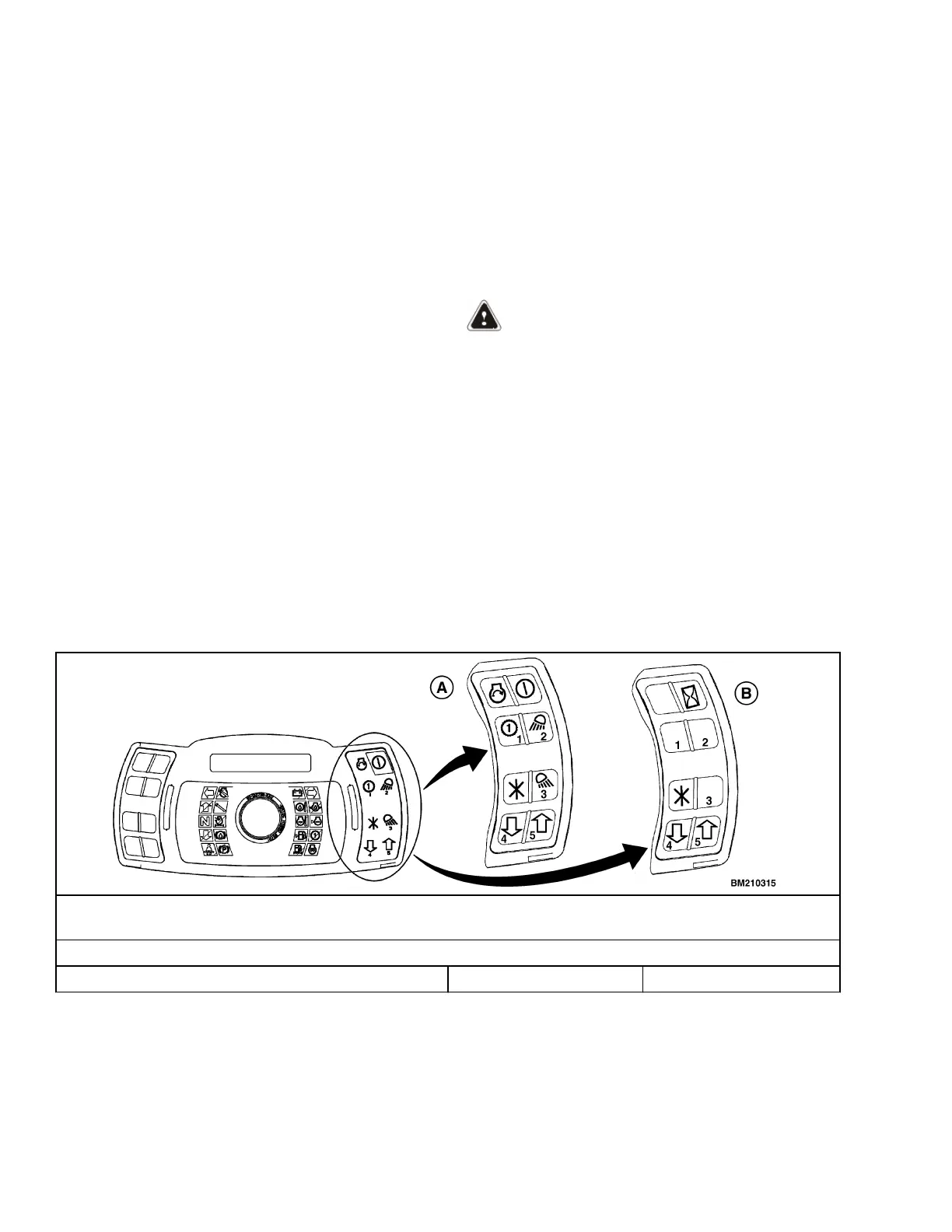

A. TYPICAL DISPLAY WITHOUT KEY, WITH OPTIONS
B. TYPICAL DISPLAY WITH KEY, WITHOUT OPTIONS
Perform: Proc_Cal_001 Service Password Entry.
Action: Ignition switch ON.
Proc_Cal_019: Mazda LP and Gas Accelerator Pedal Adjustment 8000 YRM 1134
52 Confidential/Proprietary - Do Not Copy or Duplicate
