A. COUNTERWEIGHT USED ON GLC40, 45, 55VX (GC/GLC080, 100, 120VX (E818, F818) AND GLP/
GDP40VX5/VX6; GLP/GDP45SVX5, GLP/GDP45VX6; GLP/GDP50-55VX (GP/GLP/GDP080, 090, 100, 110,
120VX) (F813, G813, H813) LIFT TRUCK MODELS
B. COUNTERWEIGHT USED ON GLC55SVX (GC/GLC80XVBCS, GC/GLC100VXBCS; GC/GLC120SVX; AND
GC/GLC120VXPRS) (E818, F818) LIFT TRUCK MODELS
C. COUNTERWEIGHT USED ON GLC40, 45, 55VX (GC/GLC080, 100, 120VX (E818, F818) AND GLP/
GDP40VX5/VX6; GLP/GDP45SVX5, GLP/GDP45VX6; GLP/GDP50-55VX (GP/GLP/GDP080, 090, 100, 110,
120VX) (J813) LIFT TRUCK MODELS
1. FRAME HOOK
2. SEAL
3. LIFT HOLE
4. TOW PIN
5. ROLL PIN
6. WASHERS
7. CAPSCREW
8. WIRE
9. O-RING

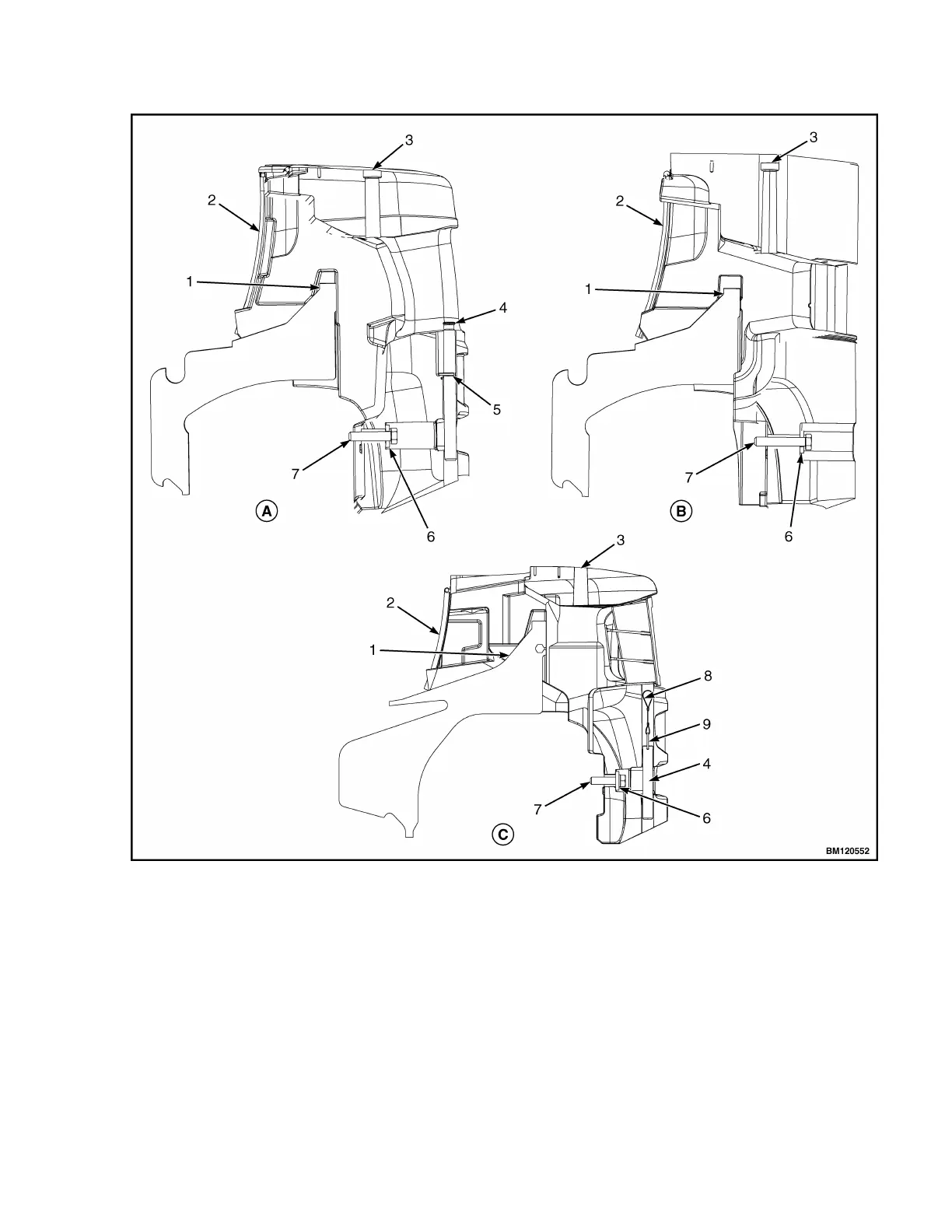

Figure 14. Counterweight Installation
0100 YRM 1243 Counterweight Replacement
