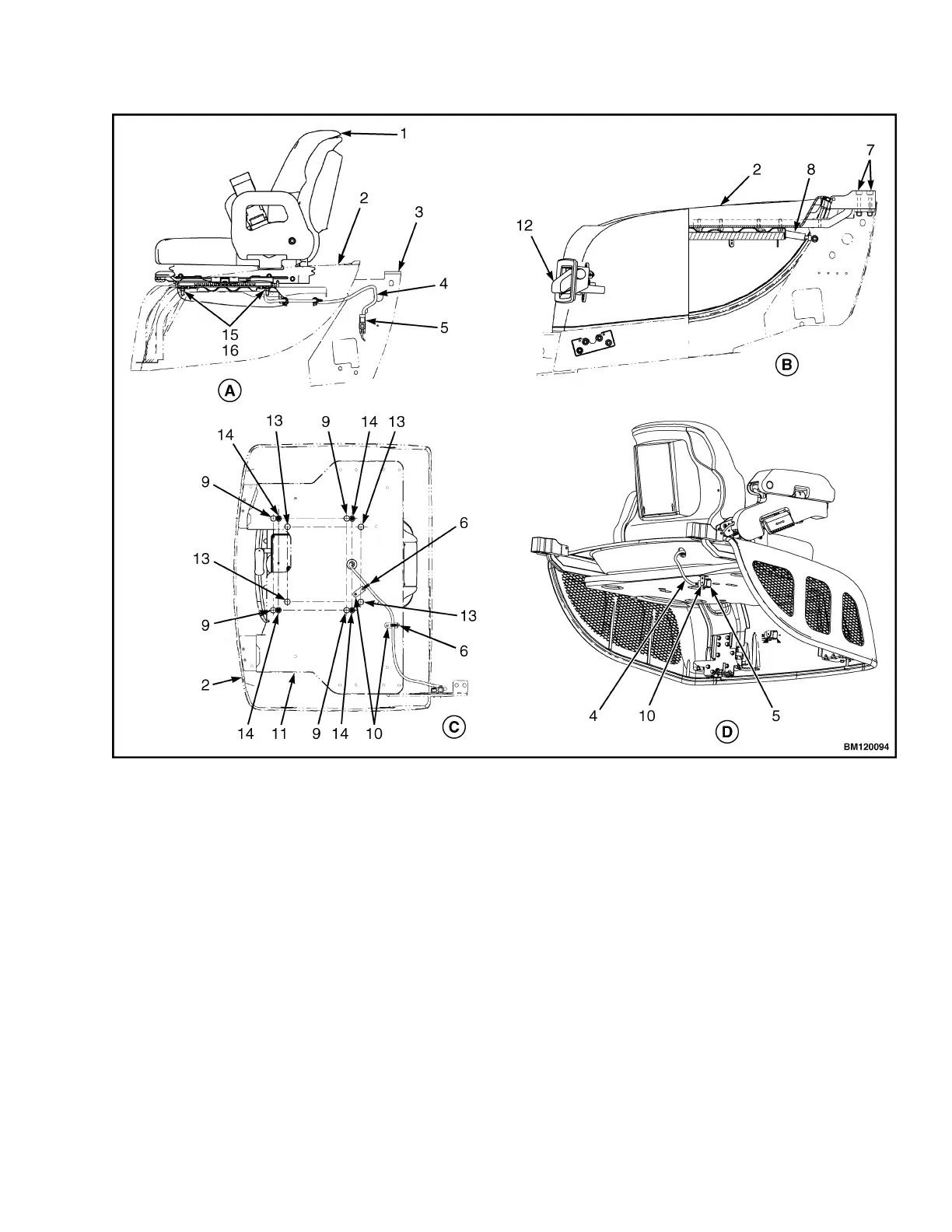

NOTE: SWIVEL SEAT AND VENTED HOOD ARE OPTIONAL FEATURES.
A. SIDE VIEW OF HOOD AND SEAT
B. SIDE VIEW OF HOOD
C. BOTTOM VIEW OF HOOD
D. SIDE VIEW OF VENTED HOOD WITH SWIVEL
SEAT
1. SEAT
2. HOOD
3. FRAME
4. SEAT WIRE HARNESS
5. SEAT WIRE HARNESS CONNECTOR
6. CABLE CLIPS
7. HINGE SCREWS
8. GAS SPRING
9. ATTACHMENT HOLES ATTACHING HOOD TO
SEAT (SEMI-SUSPENSION)
10. SEAT WIRE HARNESS BRACKETS
11. SEAT LINER
12. HOOD LATCH
13. ATTACHMENT HOLES ATTACHING HOOD TO
SEAT (NON-SUSPENSION)
14. ATTACHMENT HOLES ATTACHING HOOD TO
SEAT (FULL SUSPENSION)
15. SPACER
16. FLANGE NUT
Figure 3. Hood and Seat Arrangement
0100 YRM 1243 Hood, Seat, and Side Covers Replacement
5
