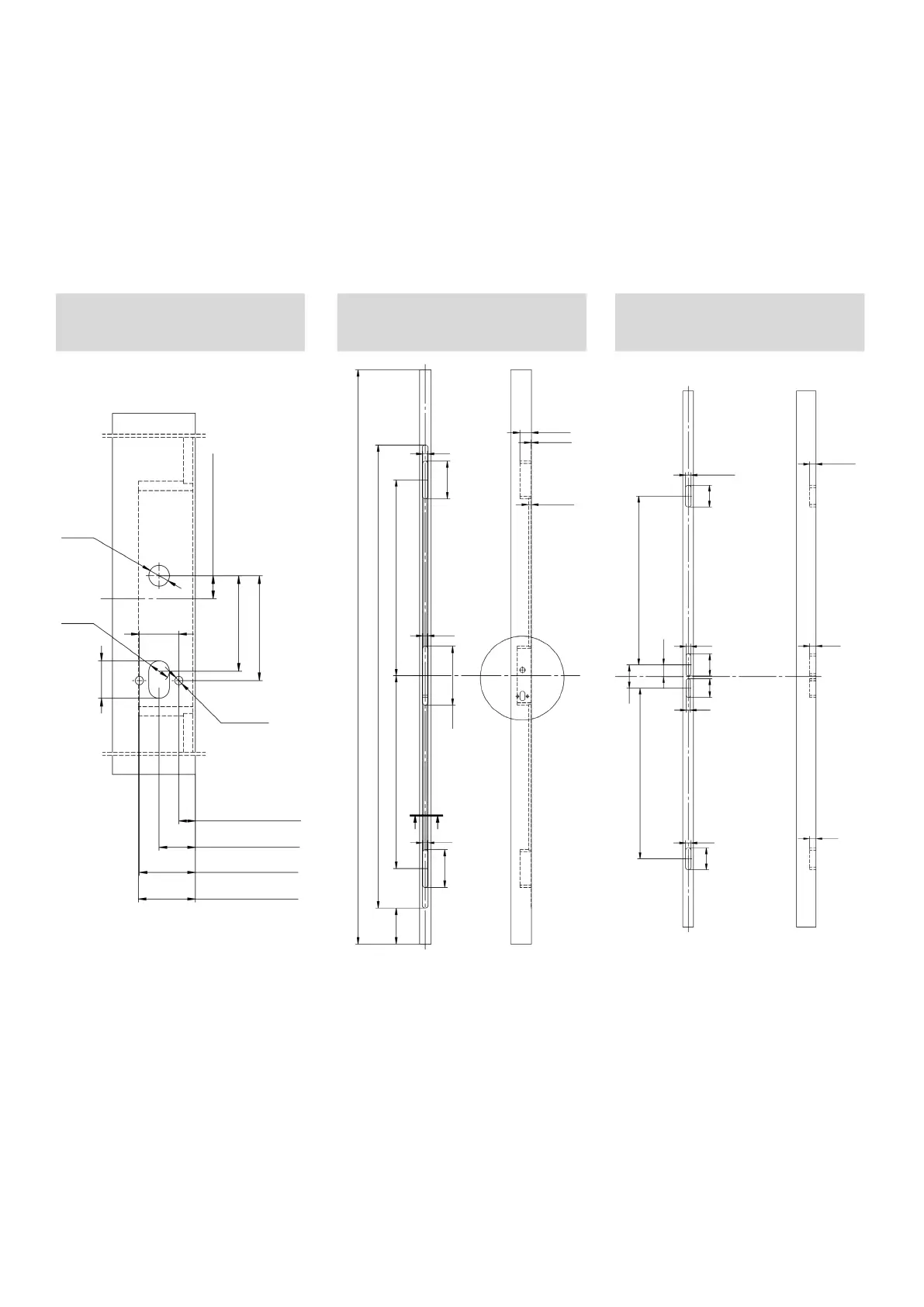

Lockmaster AutoEngage - Standard Routing Prep
Classic multipoint lock - YAS13500
The incorrect routing can lead to a number of operation and performance
issues.
Handle / Cylinder Pull
Routing
Lock Routing
Keep Routing
Prep rev. 8 - March 2022
Note: If a 16mm faceplate lock is being used without a carrier please refer the Yale Technical Services team.
16mm = 35 b/s
26mm = 45 b/s
35mm = 35 b/s
45mm = 45 b/s
54mm = 35 b/s
64mm = 45 b/s
55mm = 35 b/s
65mm = 45 b/s
Ø 8 (x2)
101
92
36
22
TO CENTER OF
CASE
38
Ø 20
Ø 20
18
145
18
750
1774
2200
226
738.5138
145
18
45
2.5
11.5
22
90
18
16
77 91
48
95
693701
22
90
25
25
25
