Yale Nest x Yale User Manual

P/N -540-INST-FUL Rev 4AYRD
4
2-3/8" (60mm) Position
UP
2-3/4" (70mm)
Position
x2

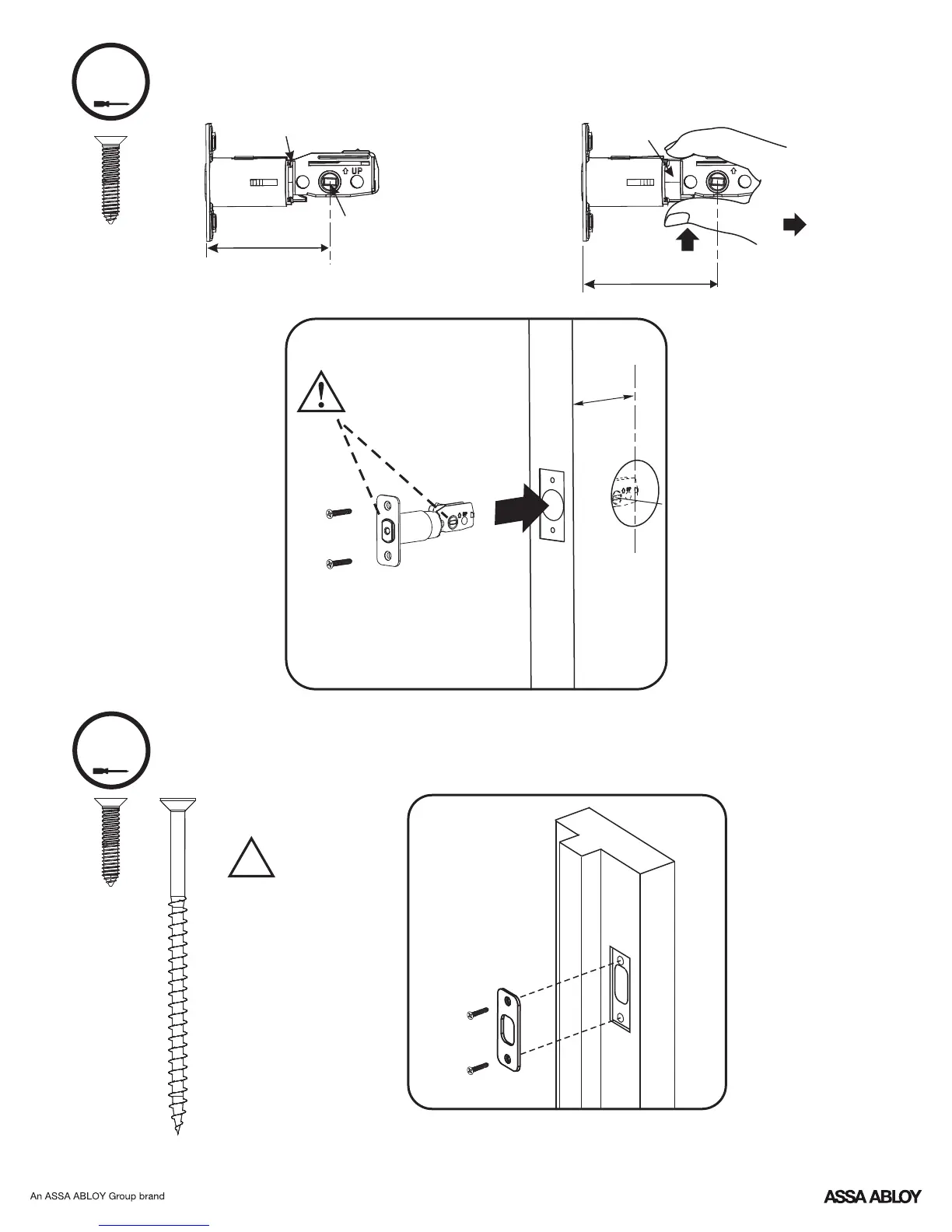

Installing Deadbolt
1
OR
Press
Pull
UP
Bolt must be in retracted
(unlocked) position.
Mechanism will be horizontal.
Note UP arrow on deadbolt.
!
Mechanism
(Horizontal Orientation)
*Backset
2-3/8" (60mm)
Backset
2-3/4" (70mm)
Backset
*2-3/8" (60mm) or 2-3/4" (70mm)
Installing Strike Plate
2
Frame
x2
x2
Choose
standard
strike plate
screws or
security
screws.
!
