Yale Nest x Yale User Manual

P/N -540-INST-FUL Rev 4AYRD
5

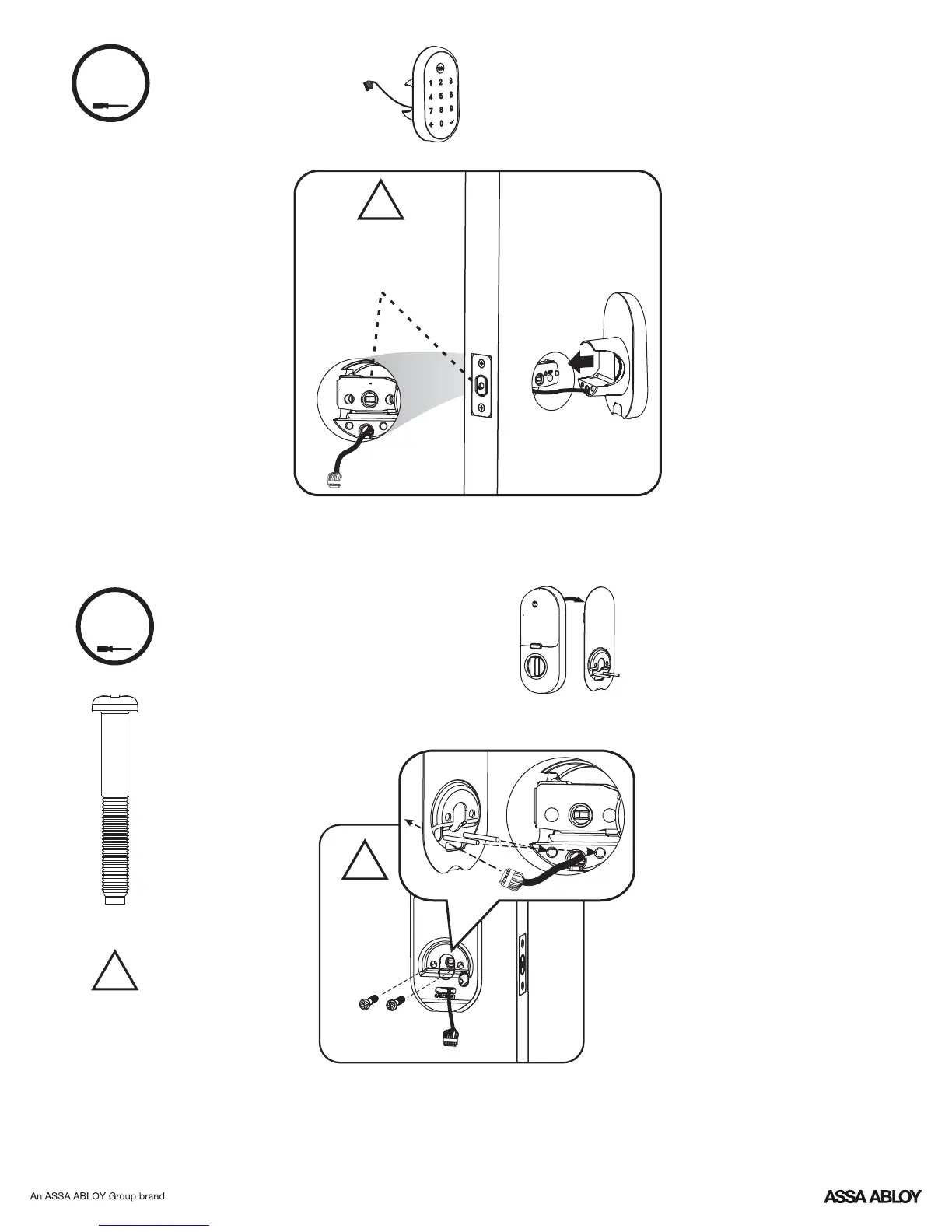

Installing Keypad
Outside of DoorInside of Door
3
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
mechanism.
!
Installing Interior Mounting Plate
Choose
through bolt
appropriate
for your door
thickness.
See Page 3.
x2
!
4
Inside of Door
Make sure
plate and
keypad are
level before
tightening
through
bolts.
!
