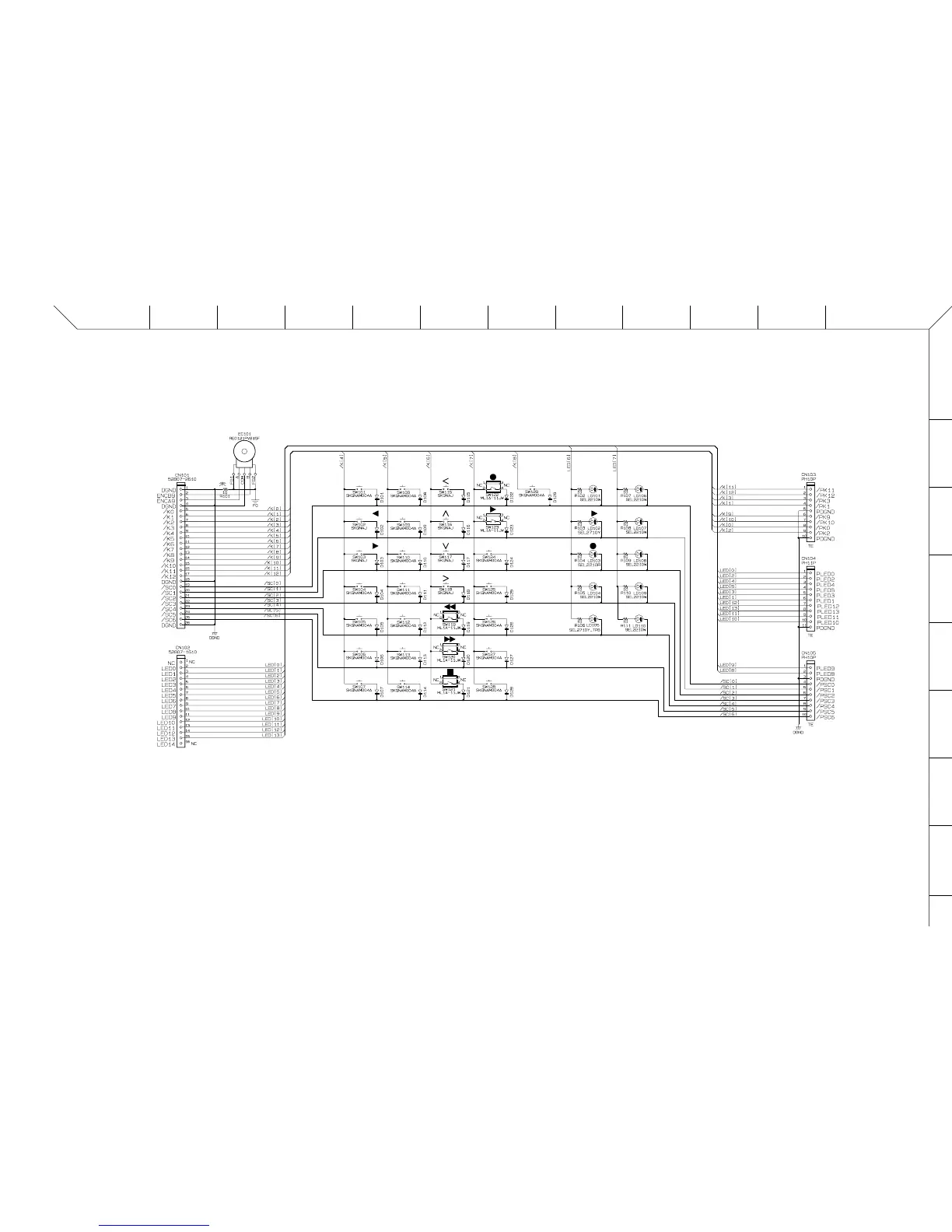

■ PN1 CIRCUIT DIAGRAM
■ PN1 CIRCUIT DIAGRAM
28CC1-8825608-1
Dial
to DM-CN404 (P10)
to DM-CN405 (P10)
to PN2-CN201 (P18)
to PN2-CN202 (P18)
to PN2-CN203 (P18)
FLIP
FLIP
BANK
BANK
EDIT
EDIT
F1
F2
F5
F6
F3
LOOP
LOOP
SHIFT
MARKER
MARKER
WRITE
ZOOM
ZOOM
SAVE
SAVE
F8
UNDO
UNDO
F4
F7
SCRUB
SCRUB
RED
RED
RED
RED
RED
RED
RED
RED
YELLOW
YELLOW
LK J I H G F E D C B A
1
2
3
4
5
6
7
8
未：notinstalled（未実装部品）
