Yamaha 01x - Page 45

45
O1X
to PN1-CN103
to RE-CN201
to PN1-CN104 to PN1-CN105
DISPLAY
PAGE SHIFT
REC RDY
AUDIO INST MIDI BUS/AUX
OTHER
PAN SEND DYNAMICS GROUP
EFFECT
REMOTE INTERNAL SCENE UTILITY
MONITOR A/B
SELECTED
CHANNEL
LOW LOW MID HIGH-MID
HIGH
AUTO R/W
AUTO EDIT
SOLO
Component side
2NA-WA21740 1
（部品側）
●

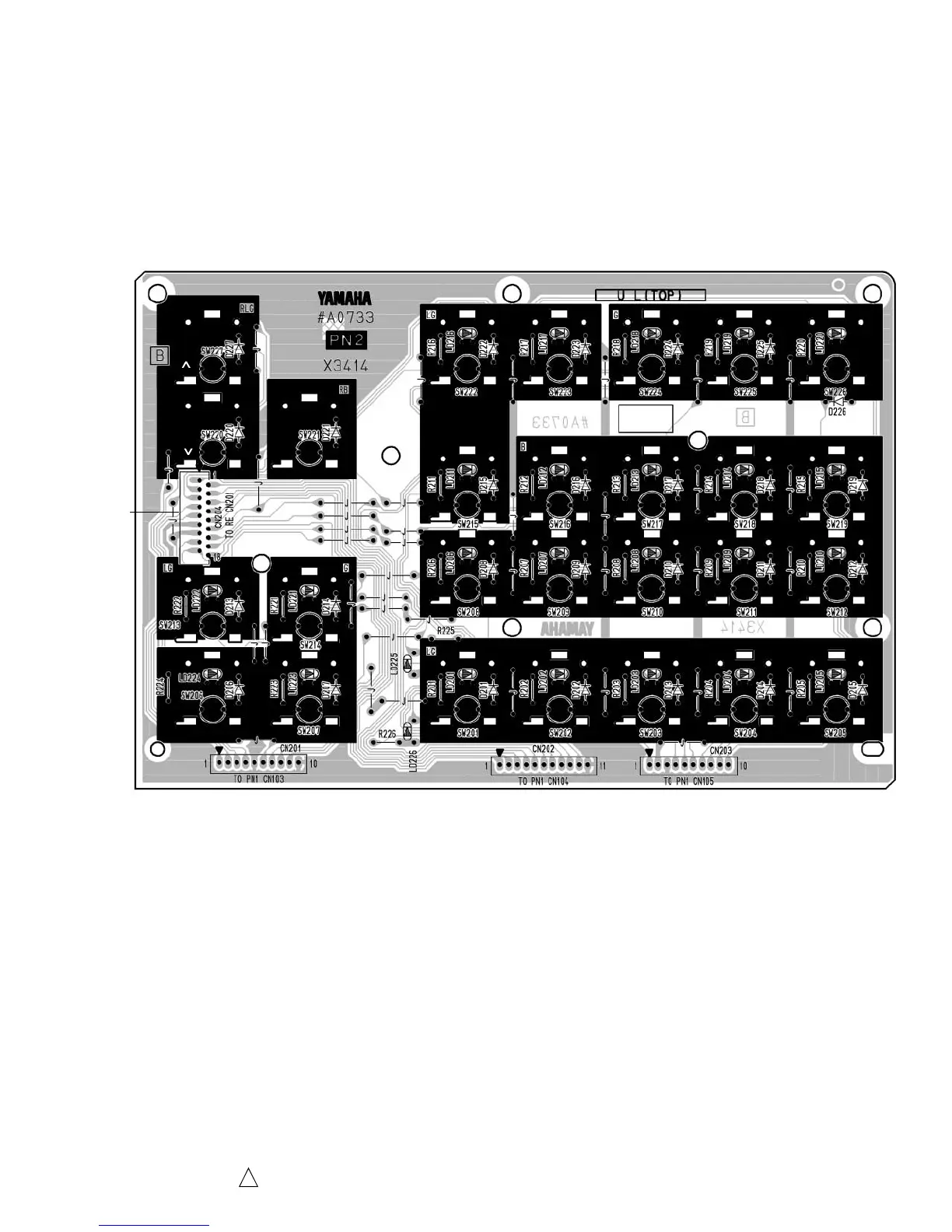

PN2 Circuit Board
