Chapter 6 Component Guide
DME Designer Owner’s Manual
408
Channel Group Switching
The [Delay Matrix - Crosspoint] editor window displays four channels each for Input and Output.
It displays the channel group you click on in the delay matrix component editor. The [Channel]
buttons in the [Input] and [Output] sections of the [Delay Matrix - Crosspoint] editor window switch
the channel group that is displayed in the window.
If you click another channel group when the delay matrix component editor is active and an [Delay
Matrix - Crosspoint] editor window is displayed, that channel group will be displayed in the open
[Delay Matrix - Crosspoint] editor window.
Only one [Delay Matrix - Crosspoint] matrix window is displayed for each delay matrix component
editor.
Matrix Mixer
In the matrix mixer, the input channels and output buses are arranged in a checkerboard
configuration. You can adjust the group balance for each output bus. There are 24 components in the
in the Matrix Mixer group, each with different numbers of input and output channels. There are seven
groups based on the number of inputs, as follows: 2 Input, 4 Input, 8 Input, 12 Input, 16 Input, 32
Input, and 64 Input.
NOTE
If a 64 input 64 output Matrix Mixer component or a 64 input 32 output Matrix Mixer component is placed in the DME64N
configuration window, no other components can be used even though the resource meter does not reach 100%.

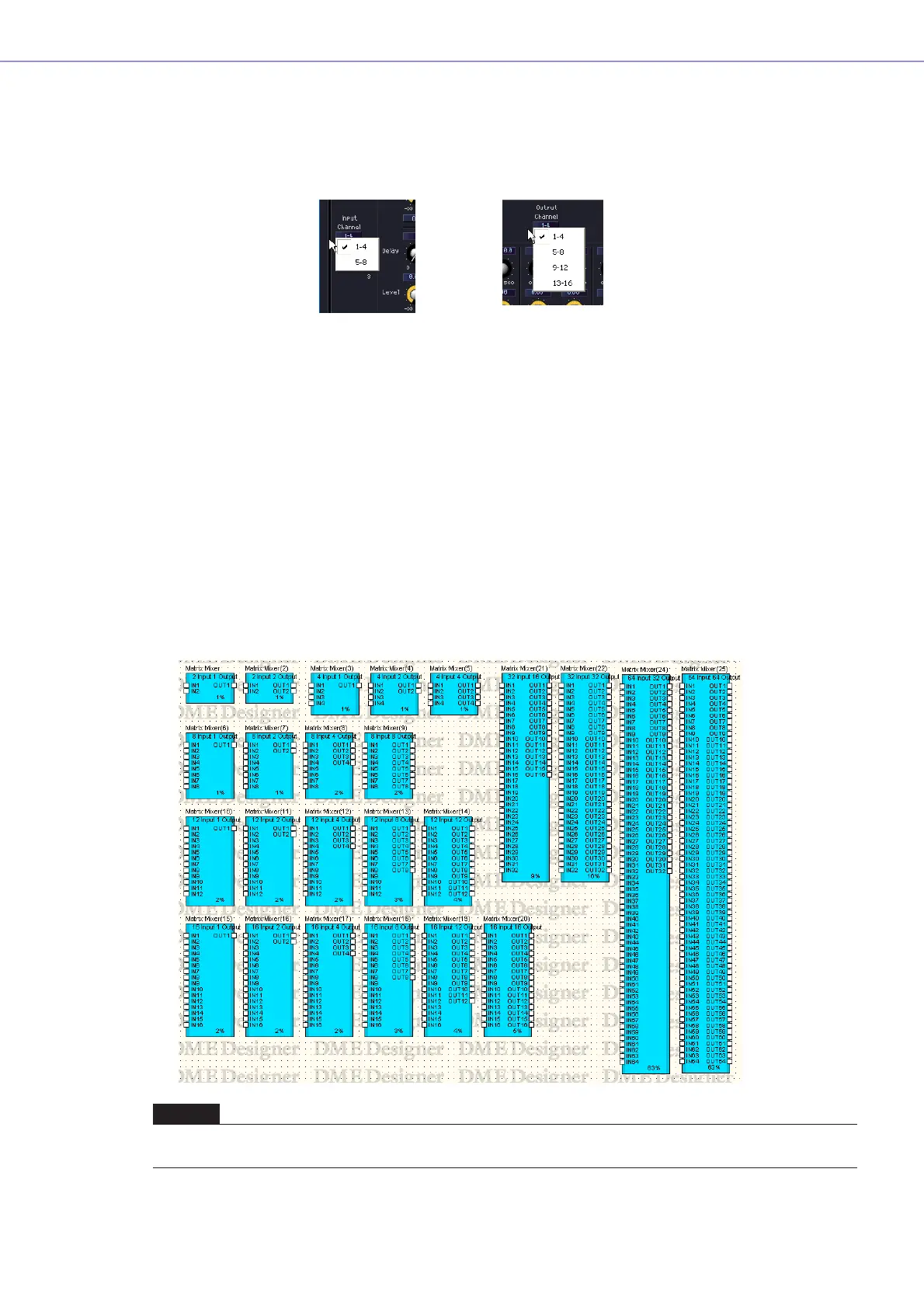

[Input] section
[Channel] menu
[Output] section
[Channel] menu
