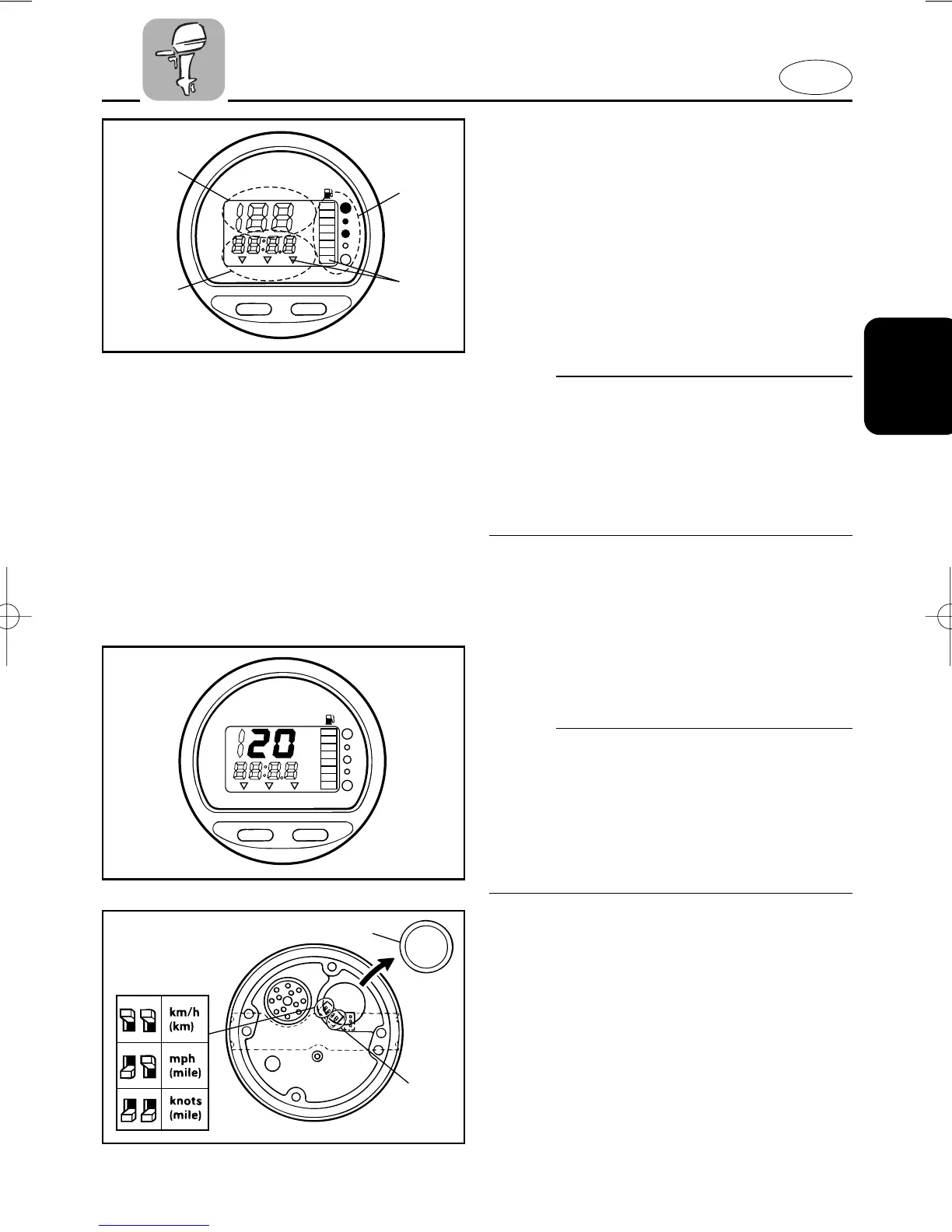

Speedometer
The meter will show the boat speed.
NOTE:
The speedometer displays km/h, mph, or
knots, depending upon operator prefer-
ence. Select the desired unit of measure-
ment by setting the selector switch on the
back of the meter. See the illustration for
setting.
1 Cap
2 Selector switch (For speed unit)
3 Selector switch (For fuel sender)
802034
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
802016*
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
q
w
e
r
EMD40012
DIGITAL SPEEDOMETER
This meter contains the speedometer, fuel
meter with warning, trip meter, clock and
voltmeter with warning.
1 Speedometer
2 Fuel meter
3 Trip meter/clock/voltmeter
4 Warning indicator
NOTE:
After the main switch is first turned on, all
portions of the meter come on as a check.
After a few seconds, the meters will
change to normal operation. Watch the
meter when turning on the main switch to
make sure all segments come on.
