OPERATIONS OF CONTROLS
AND
OTHER FUNCTIONS
EMU01273

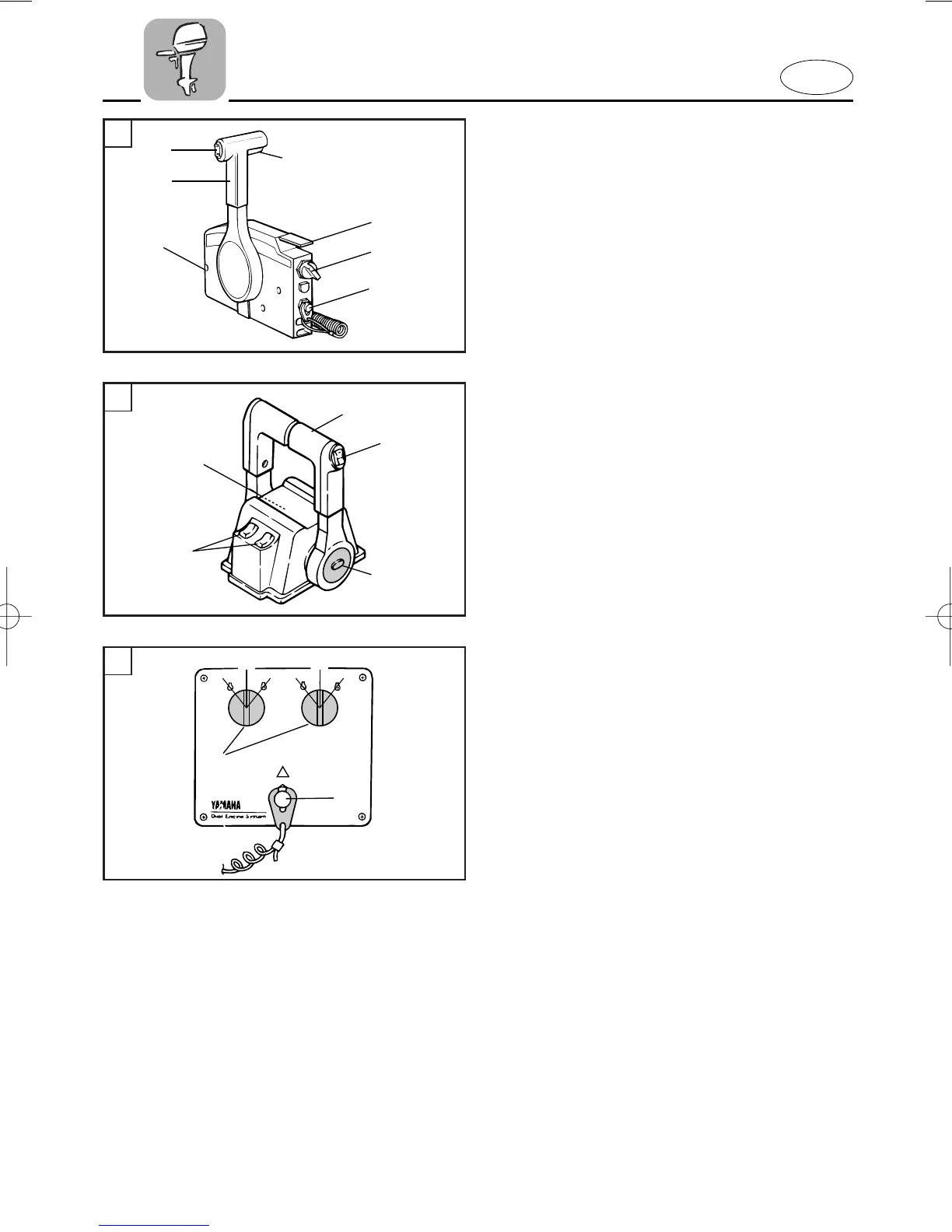

REMOTE CONTROL
Both the shifter and the throttle are actu-
ated by the remote control lever. In addi-
tion, the electrical switches are mounted
on the remote control box.
å Side mount remote control box
∫ Binnacle mount remote control box
ç Switch panel (for use with ∫)
1 Remote control lever
2 Neutral interlock trigger
3 Neutral throttle lever
4 Free accelerator
5 Main switch
6 Engine stop lanyard switch
7 Power trim/tilt switch
8 Throttle friction adjusting
