Yamaha 2002 YFA1 - Steering System Checks

– 16 –
CHAS

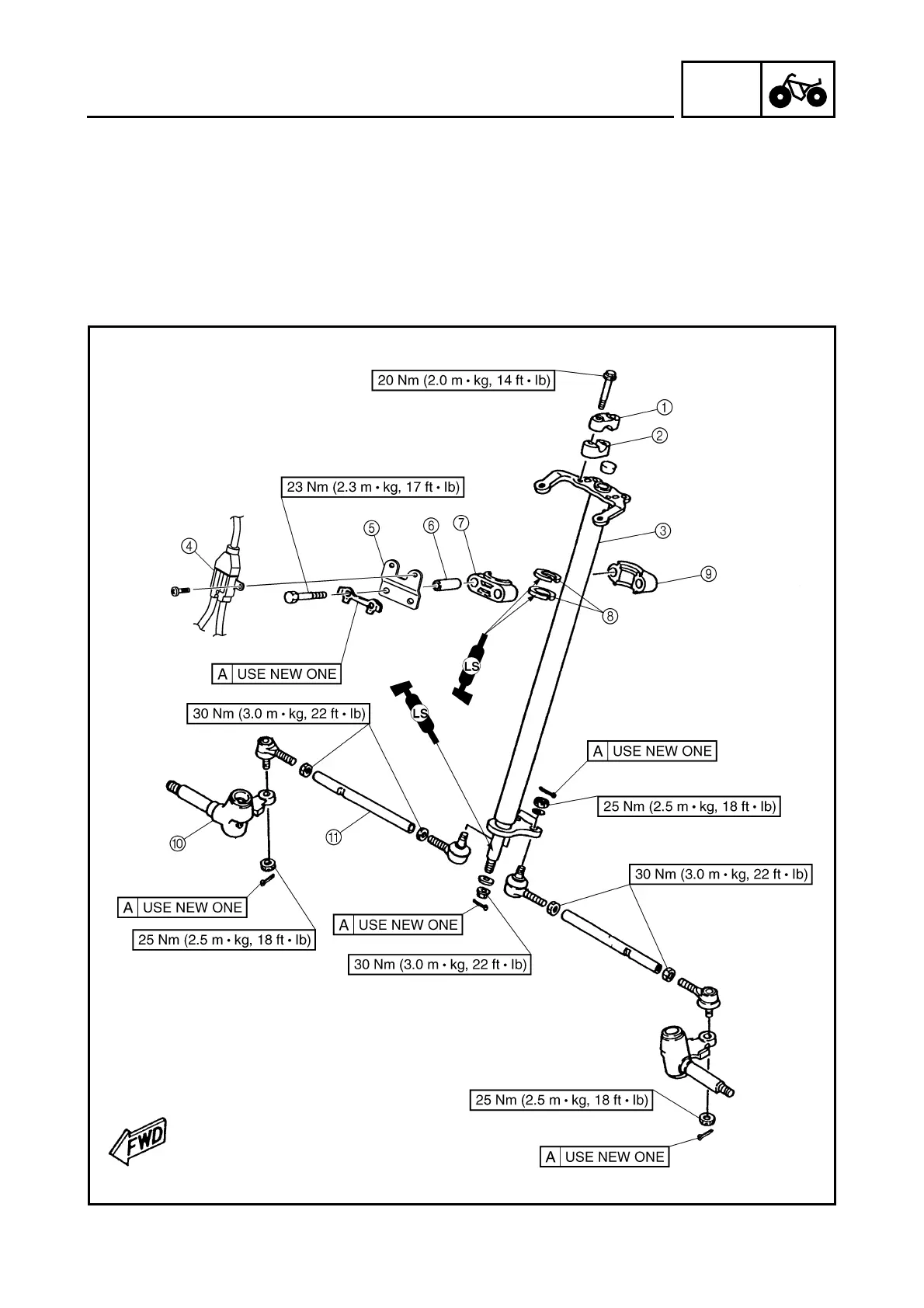

STEERING SYSTEM
CHASSIS
STEERING SYSTEM
1 Handlebar holder (upper)
2 Handlebar holder (lower)
3 Steering column
4 Cable joint
5 Cable joint bracket
6 Collar
7 Steering bracket
8 Oil seal
9 Steering bracket
0 Steering knuckle
A Tie-rod
