CDI MAGNETO

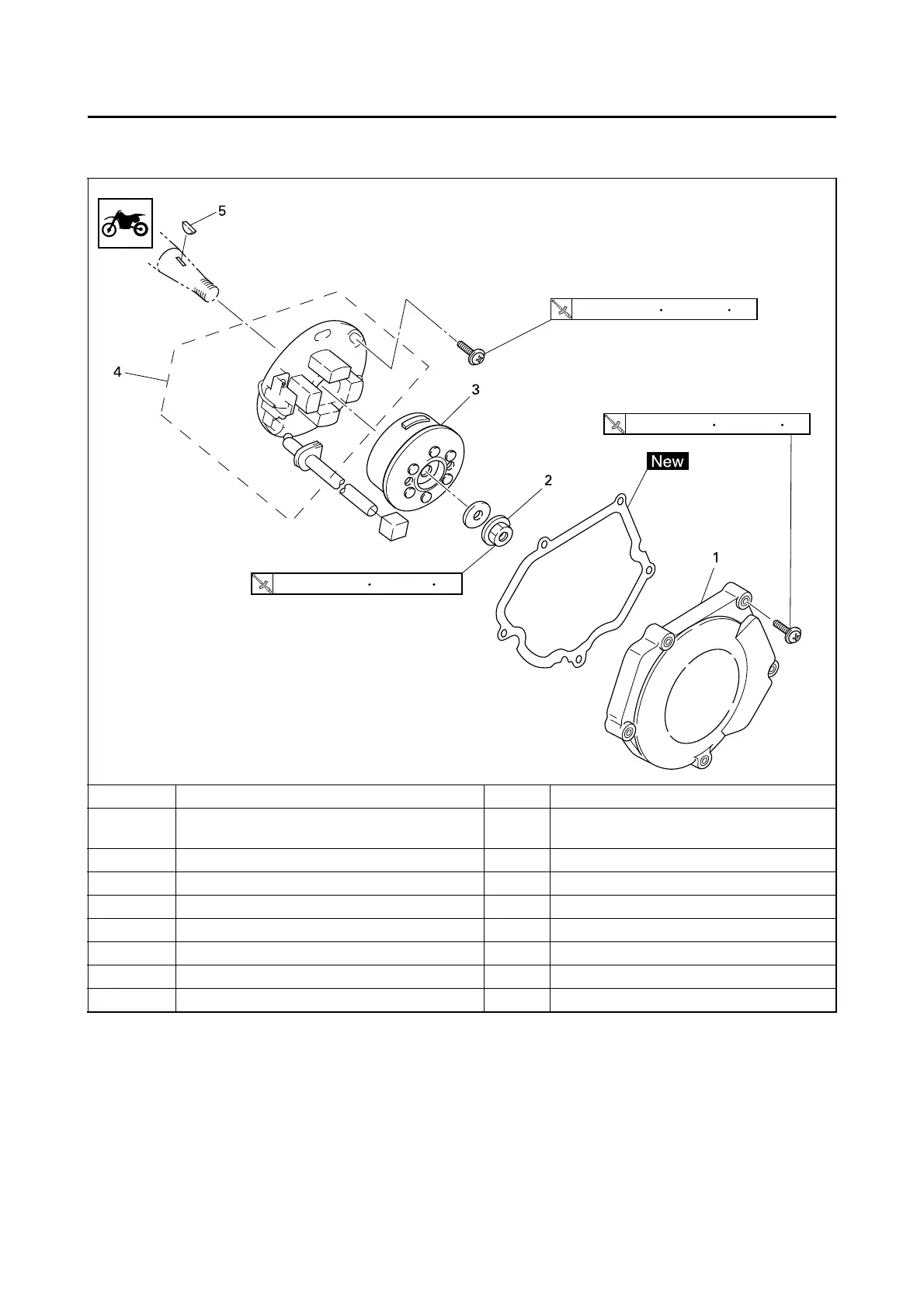

REMOVING THE CDI MAGNETO

Order Part name Q'ty Remarks

Seat and fuel tank

Refer to "SEAT, FUEL TANK AND SIDE

COVERS" section.

Bolt (Radiator) Refer to "RADIATOR" section.

Disconnect the CDI magneto lead.

1 Left crankcase cover 1

2 Nut (rotor) 1 Refer to removal section.

3 Rotor 1 Refer to removal section.

4 Stator 1

5 Woodruff key 1

7 Nm (0.7 m kg, 5.1 ft lb)

5 Nm (0.5 m kg, 3.6 ft lb)

56 Nm (5.6 m kg, 40 ft lb)
