INSTRUMENT AND CONTROL FUNCTIONS
4-6
4
EAU41281
Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it
also.
The fuel cock has two positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not run-
ning.
ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
EAU13641
Starter (choke) knob
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn
on the starter (choke).
Move the knob in direction (b) to turn
off the starter (choke).

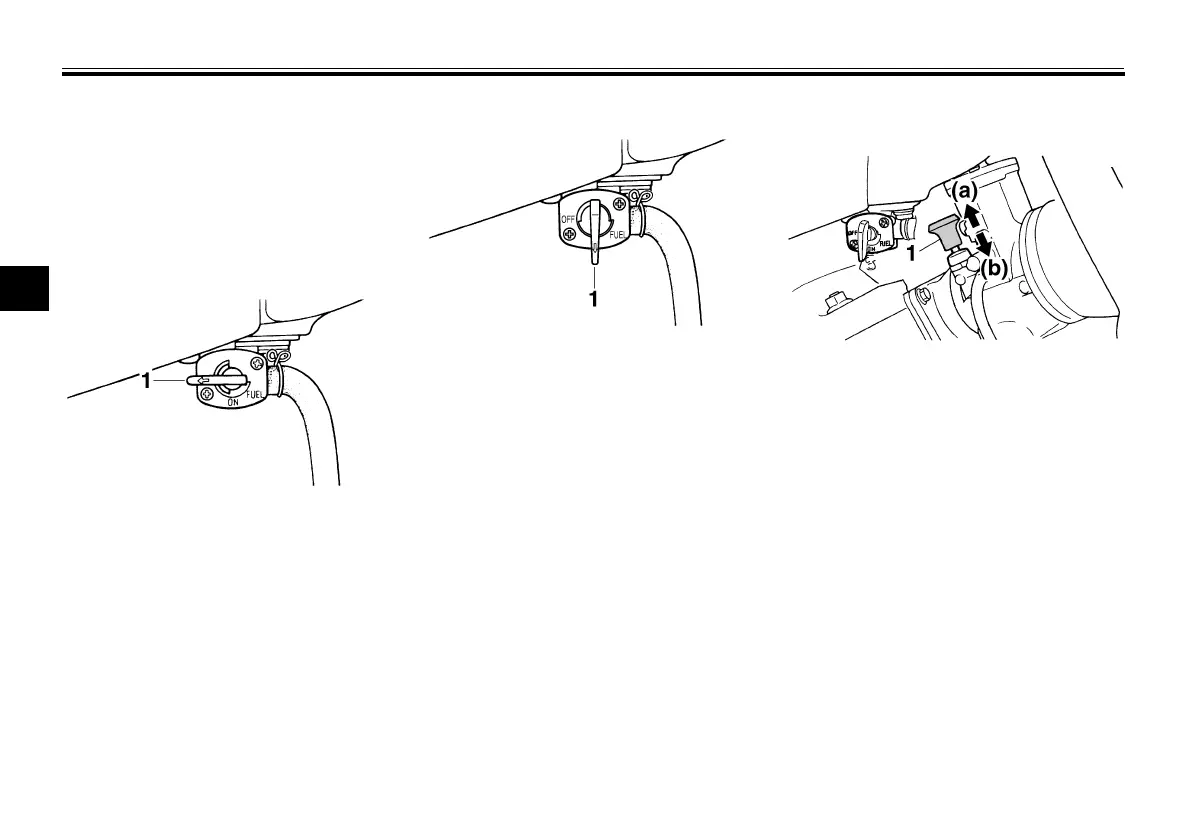

1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1. Starter (choke) knob
