Yamaha 25B - MAIN COMPONENTS OVERVIEW

2-1
GB
@2
@1
@0
e
y
u
i
o
!0
r
w
q
t
!1
!5
!6
!8
!7
!9
!2
!3
!4
EMU01206

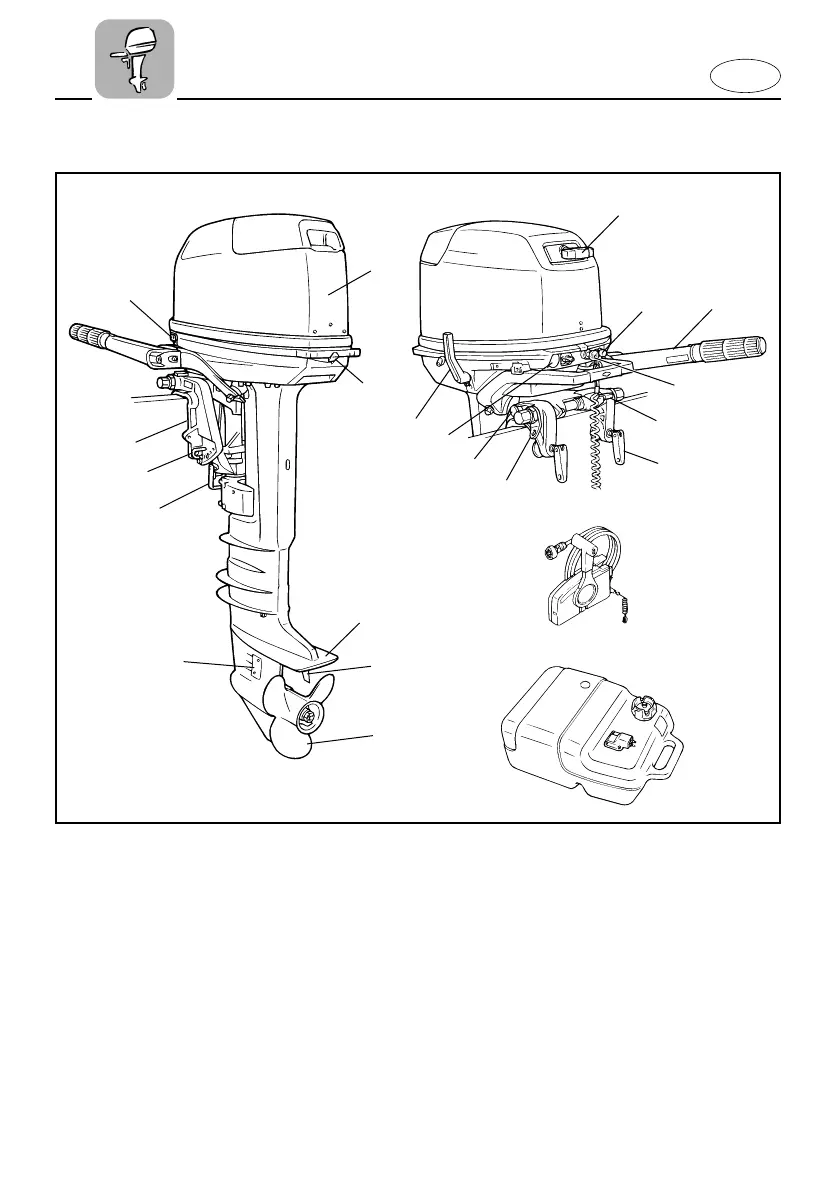

MAIN COMPONENTS
1 Top cowling
2 Top cowling lock lever
3 Anti-cavitation plate
4 Trim tab
5 Propeller
6 Cooling water inlet
7 Shallow water lever
8 Trim angle adjusting rod
9 Clamp bracket
*0 Starter button
q Recoil starter handle
w Engine stop button /
Engine stop lanyard switch
e Tiller handle
r Choke knob
t Tilt lock lever
y Transom clamp handle
u Rope attachment
i Tilt support knob
*o 2P connector
p Gear shift lever
*a Remote control box
*s Fuel tank
* May not be exactly as shown; also may not be
included as standard equipment on all models.
