EMU00108
STEERING FRICTION ADJUSTING
SCREW (for Tiller control model)
A friction device provides resistance to steer-
ing movement. This is adjustable for operator
preference. An adjusting screw/bolt is locat-
ed on the swivel bracket.
EMU01296
Adjustment
w
Do not over tighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
EMU01155

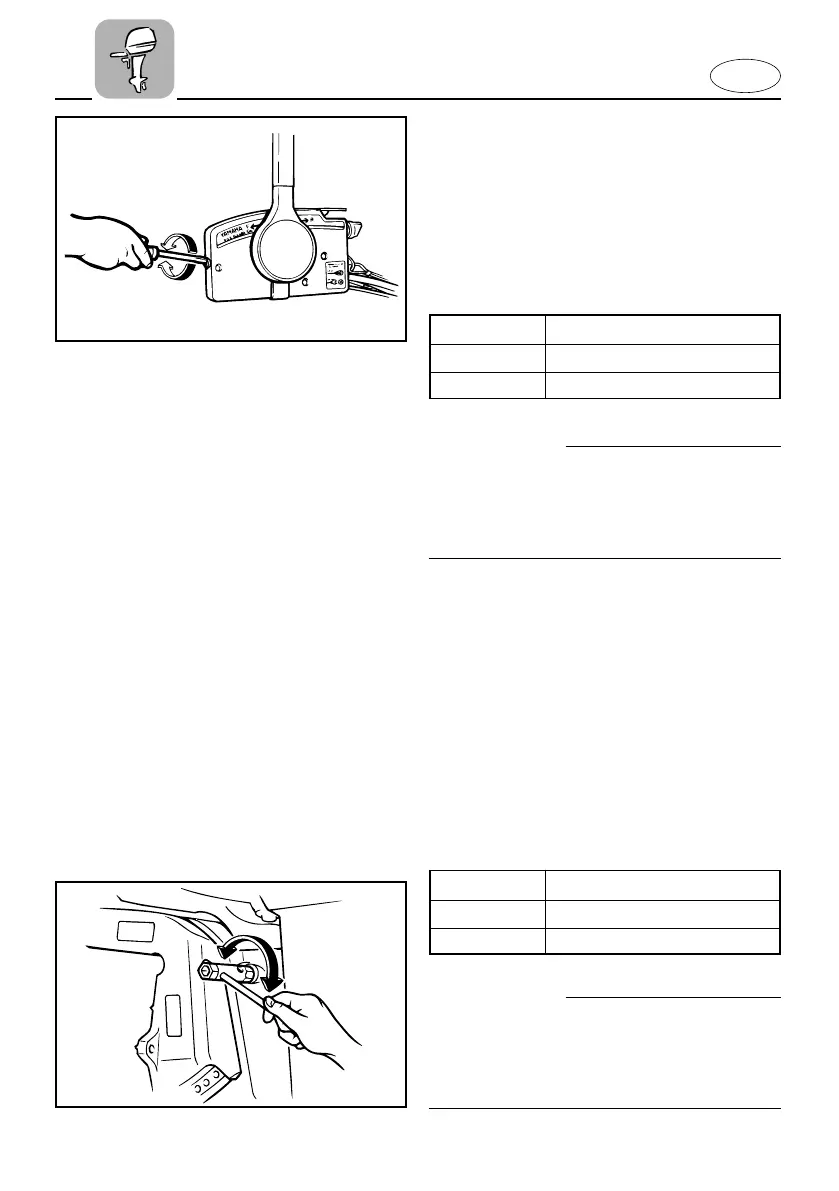

Throttle Friction Adjusting Screw
A friction device in the remote control box
provides adjustable resistance to movement
of the remote control lever, and can be set
according to operator preference. An adjust-
ing screw is located on the front of the
remote control box.
w
Do not overtighten the friction adjusting
screw. If there is too much resistance, it
may be difficult to move the lever, which
could result in an accident.
2-10
GB
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
Resistance Screw/Bolt
Increased Turn clockwise
Decreased Turn counterclockwise
408015
