Components
12
EMU46722

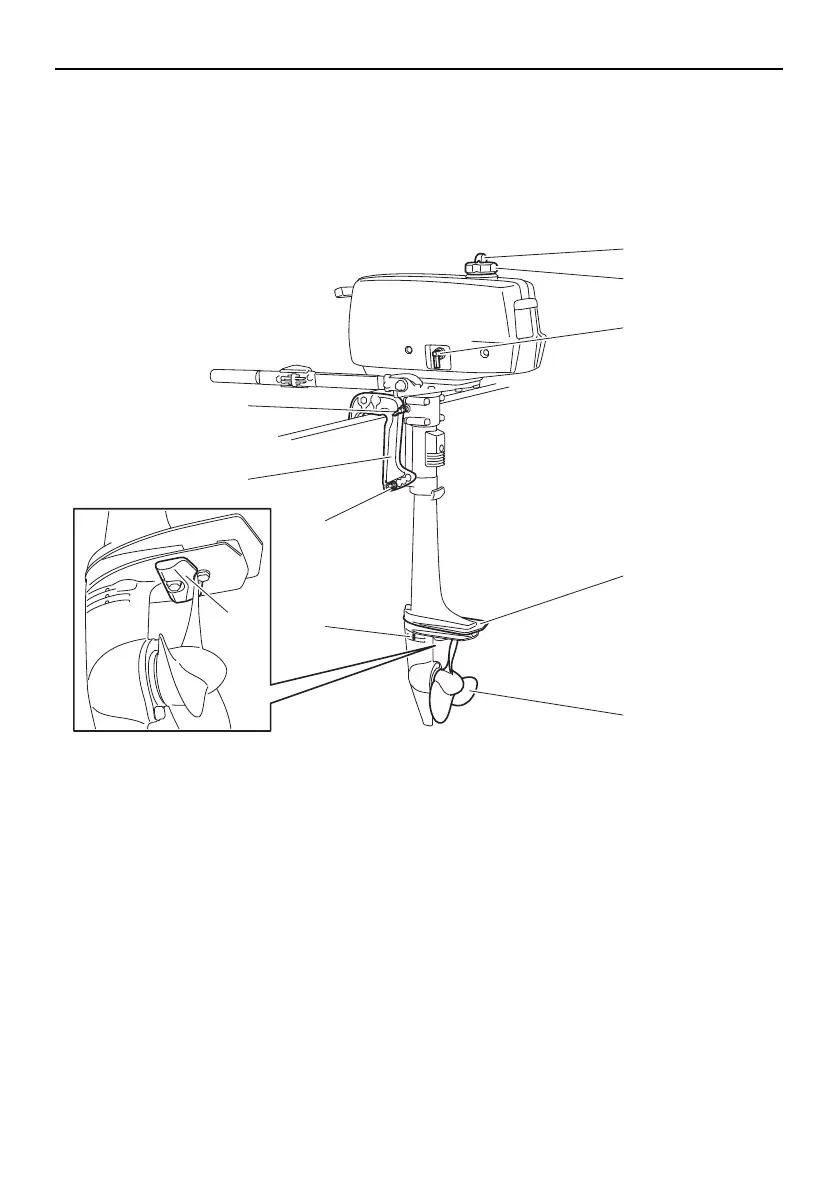

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all models
(order from dealer).
1
10
6
7
8
9
2
3
5
4
ZMU02591
1. Air vent screw
2. Fuel tank cap
3. Fuel cock
4. Anti-cavitation plate
5. Propeller
6. Anode
7. Cooling water inlet
8. Trim rod
9. Clamp bracket
10.Steering friction adjuster
