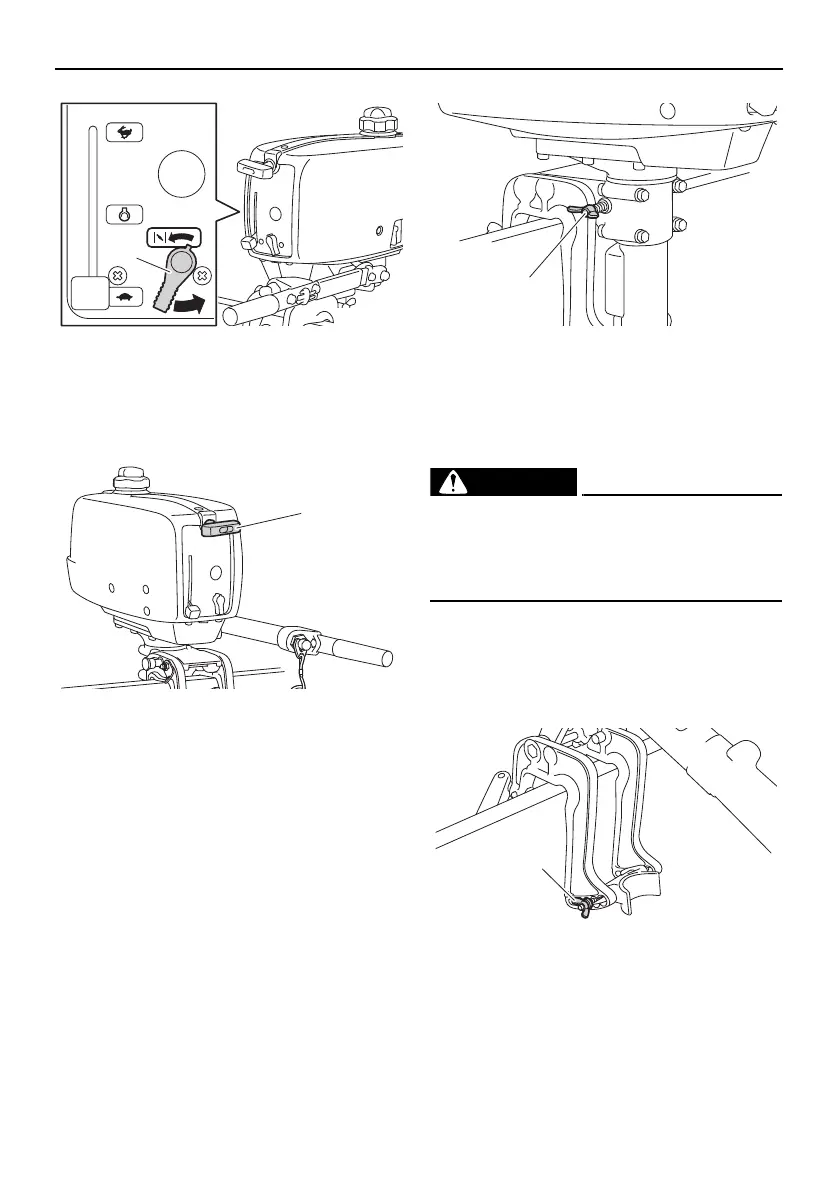

Yamaha 2D - Manual Starter Handle; Steering Friction Adjuster; Trim Rod (Tilt Pin)

Components
16
EMU26075
Manual starter handle
The manual starter handle is used to crank
and start the engine.
EMU26124
Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
justing screw or bolt is located on the swivel
bracket.
To increase resistance, turn the adjuster
clockwise.
To decrease resistance, turn the adjuster
counterclockwise.
WARNING
EWM00041
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to steer, which could result in an
accident.
EMU26263
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
1. Choke knob
1. Manual starter handle
1
ZMU02608
1
ZMU02602
1. Steering friction adjuster
1. Trim rod
1
ZMU02603
1
ZMU02604
