Yamaha 2D - Fuel Cock Operation; Tiller Handle Operation; Throttle Lever Operation

Components
14

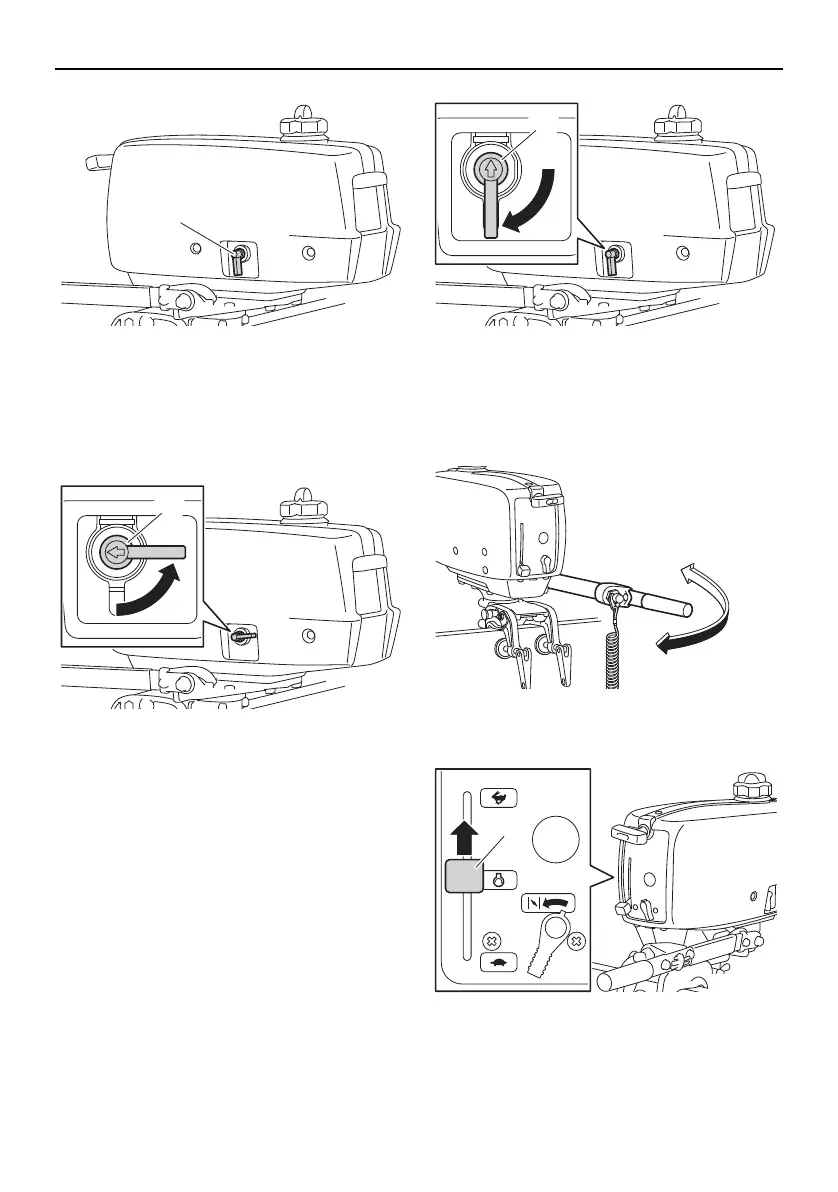

Closed position
To stop the fuel flow to the engine, turn the
fuel cock to the closed position.
Always turn the fuel cock to the closed posi-
tion when the engine is not running.
Open position
To send fuel from the fuel tank to the carbu-
retor, turn the fuel cock to the open position.
Normal running is done with the fuel cock in
this position.
EMU25914
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
EMU25954
Throttle lever
To increase speed, push the lever upward.
1. Fuel cock
1. Closed position
1
ZMU02592
ON
OFF
1
ZMU08649
1. Open position
1. Throttle lever
ON
OFF
1
ZMU02593
ZMU08650
1
ZMU02594
