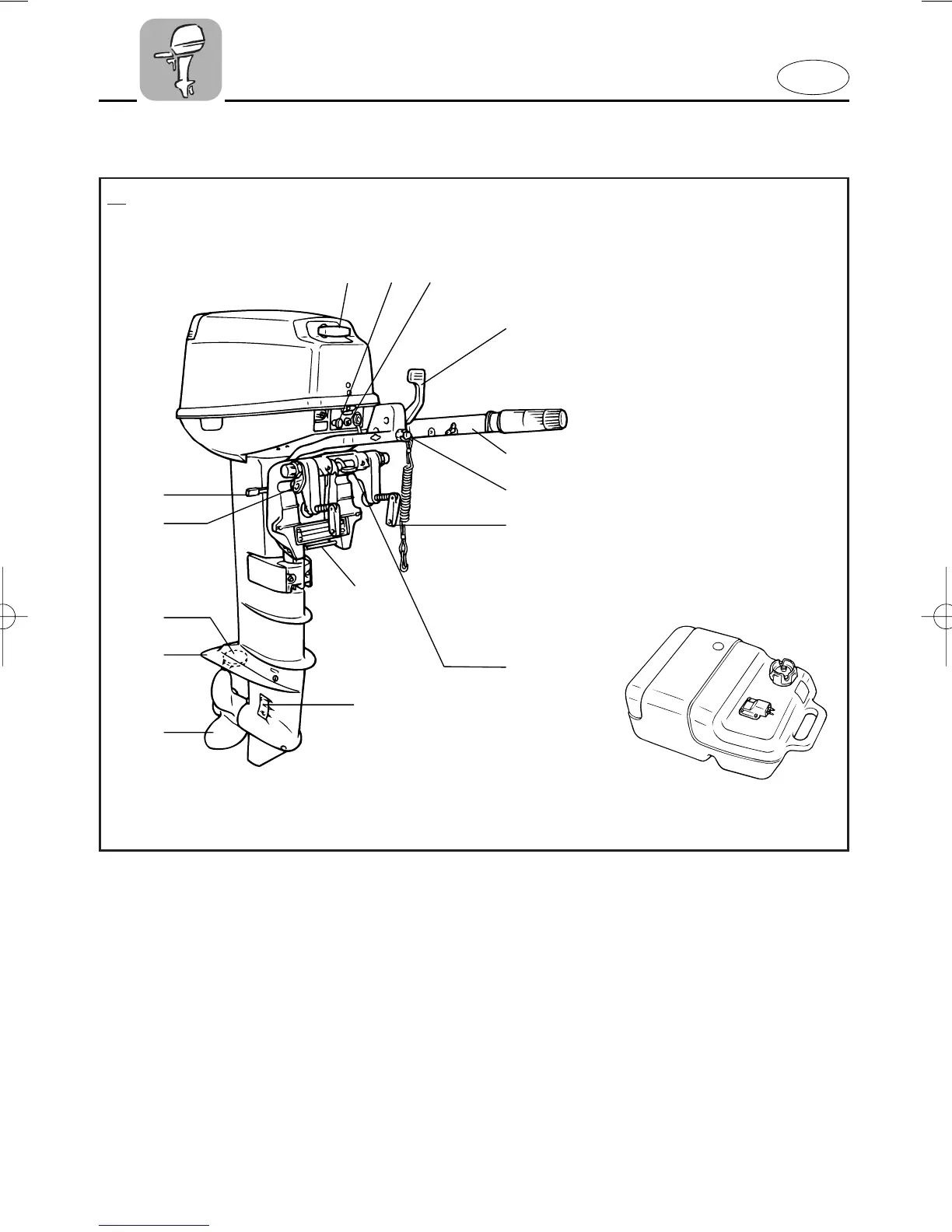

MAIN COMPONENTS
101061
!1
!0
!6
!2
!4 u
i
q
r
w
t
y
e
!3
o
!5
1 Recoil starter handle
2 Choke knob
3 Warning lamp
4 Gear shift lever
5 Throttle-control grip/Tiller-handle
6 Engine stop button/
Engine stop lanyard switch
7 Transom-clamp handle
8 Tilt lock lever
9 Cooling water inlet
0 Propeller
q Trim tab (Anode)
w Anti-cavitation plate
e Trim angle adjusting-rod
r Rope attachment
t Shallow water lever
y Fuel tank
* May not be exactly as shown; also may
not be included as standard equipment on
all models.
