Yamaha 30A - Shallow Water Lever; Tilt Lock Mechanism

2-12
EMD08010

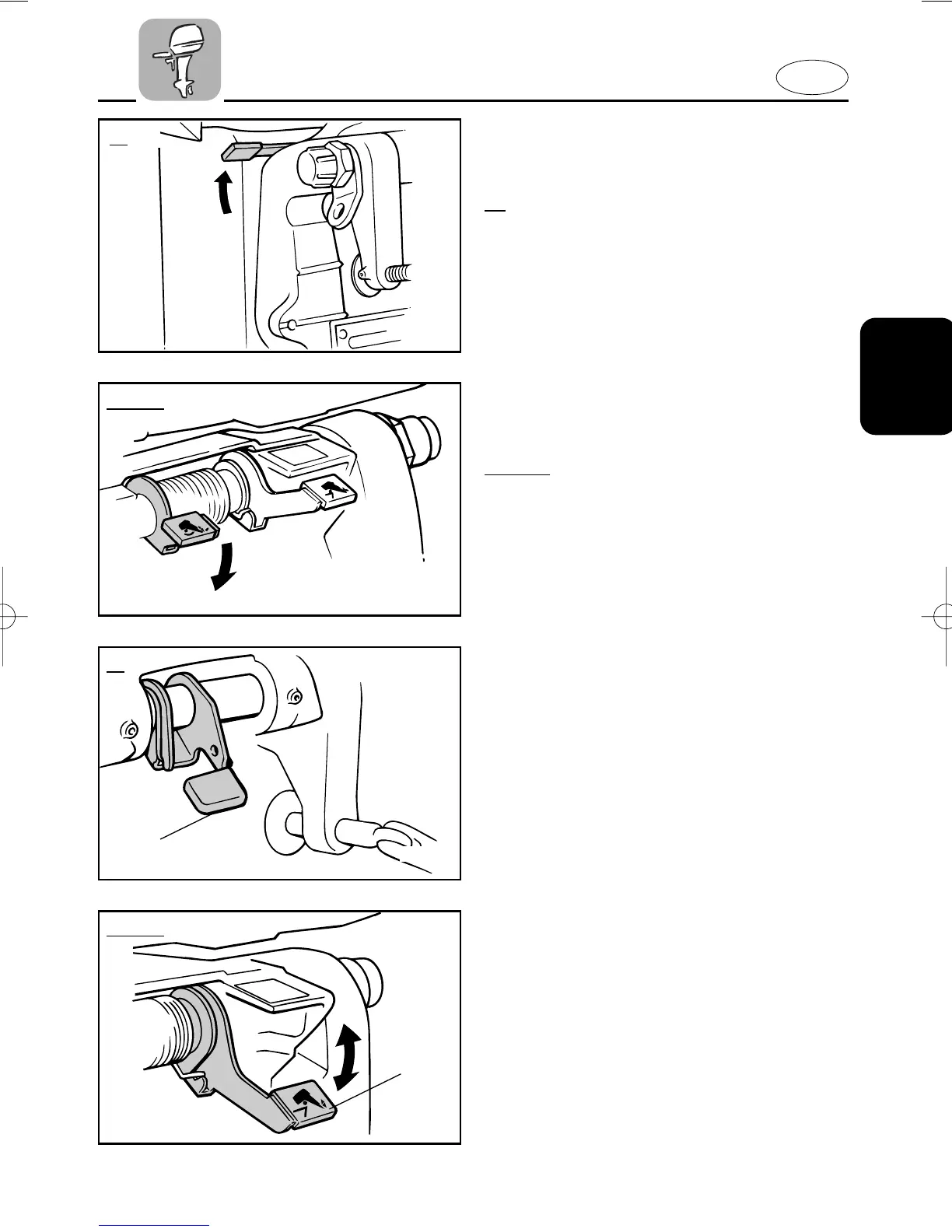

SHALLOW WATER LEVER
(If equipped)
25
Lifting this lever will tilt the motor up par-
tially to provide more clearance when
operating in shallow water.
E
402075*
25
402072*
25-3/30
EMD08110
SHALLOW WATER LEVER
(If equipped)
25-3/30
Pushing this lever down will tilt the motor
up partially to provide more clearance
when operating in shallow water.
EMD44010
TILT LOCK MECHANISM
(for Manual tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the up
position. To release it, push the tilt-lock
lever down.
1 Tilt-lock lever
402035*
q
402061*
q
25-3/30
25
