Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
EMU01155

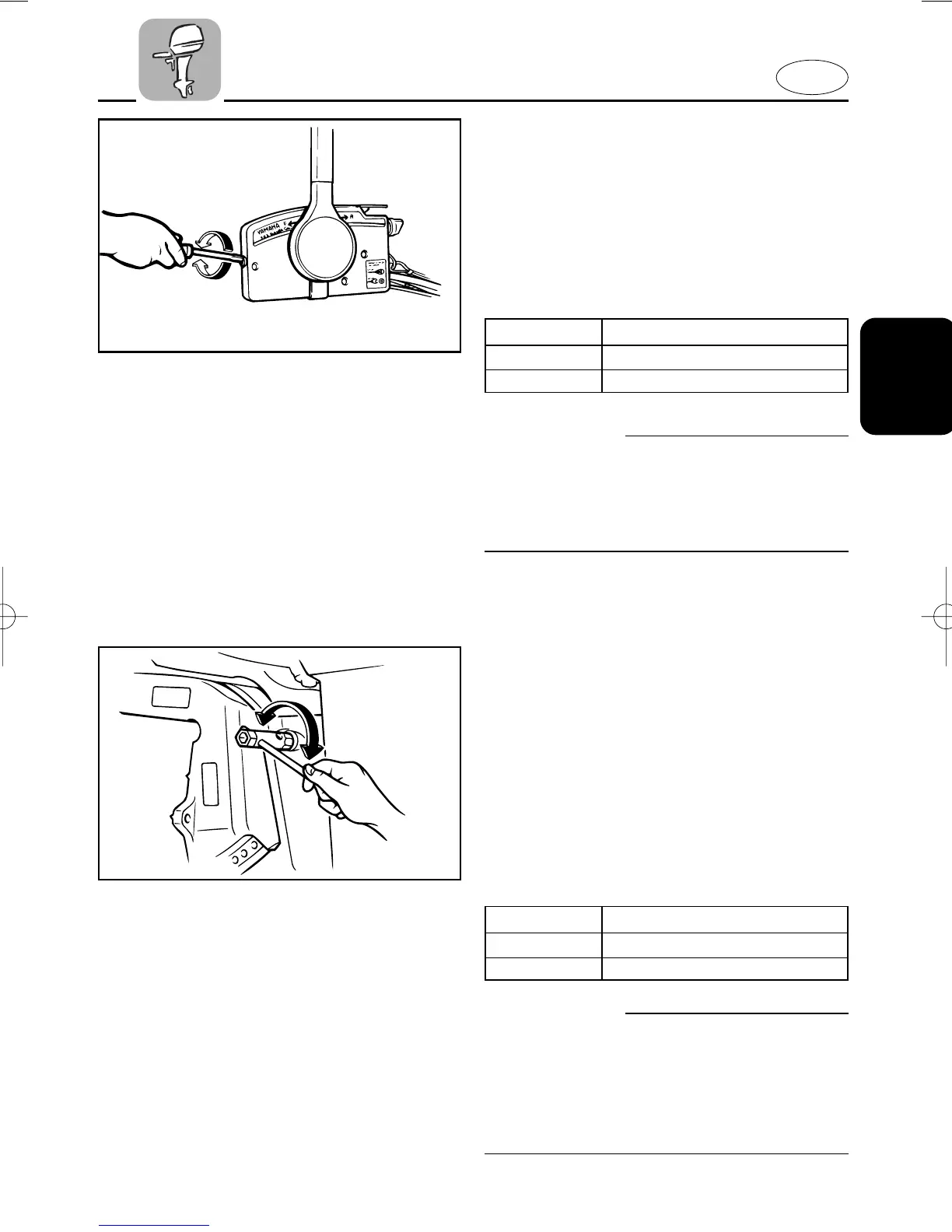

Throttle Friction Adjusting Screw
A friction device in the remote control box
provides adjustable resistance to move-
ment of the remote control lever, and can
be set according to operator preference.
An adjusting screw is located on the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw. If there is too much resistance, it
may be difficult to move the lever, which
could result in an accident.
EMD00011
STEERING FRICTION ADJUSTING
SCREW(for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting
screw/bolt is located on the swivel brack-
et.
EMD00310*
Adjustment
w
Do not overtighten the friction
screw/bolt.
If there is too much resistance, it may be
difficult to steer, which could result in an
accident.
Resistance Screw/bolt
Increased Turn clockwise
Decreased Turn counterclockwise
408015
