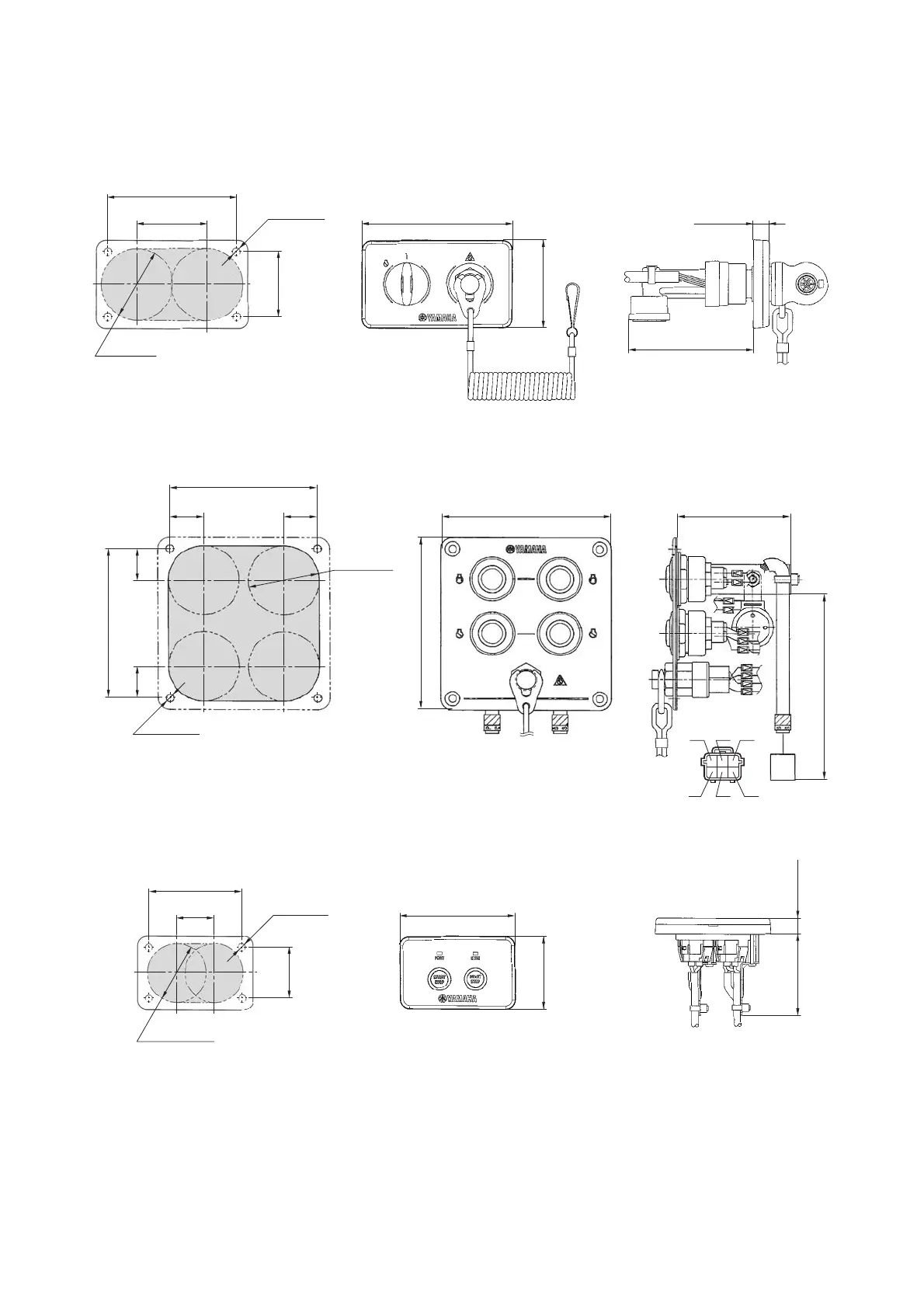

REMOTE SWITCH TYPES AND APPLICATIONS
TWIN IG SWITCH
55 (2.17)
Cut out shaded area
87 (3.42)
28.3 (1.11)
44.45 (1.75)
70.4 (2.77)
5.6 (0.22)
61.5 (2.42) 12 (0.47)
38.4
(1.51)
Cut out shaded area
130 (5.12)
109 (4.29)
25 (0.98) 25 (0.98)
126 (4.96)
113 (4.45)
24 (0.94) 24 (0.94)
52.4 (2.06)
5.5 (0.22)
140 (5.51)
86 (3.39)
Or
YBr
P
W
B
Cut out shaded areaCut out shaded areaCut out shaded area
66 (2.60)
Cut out shaded area
114 (4.49)
53 (2.09) 12 (0.47)
97.4 (3.83)
49.4 (1.94)
54 (2.13)
5.6 (0.22)
100 (4.00)
3
4
5
mm (in.)
mm (in.)
mm (in.)
