DIGITAL ELECTRONIC REMOTE CONTROL WIRE HARNESS

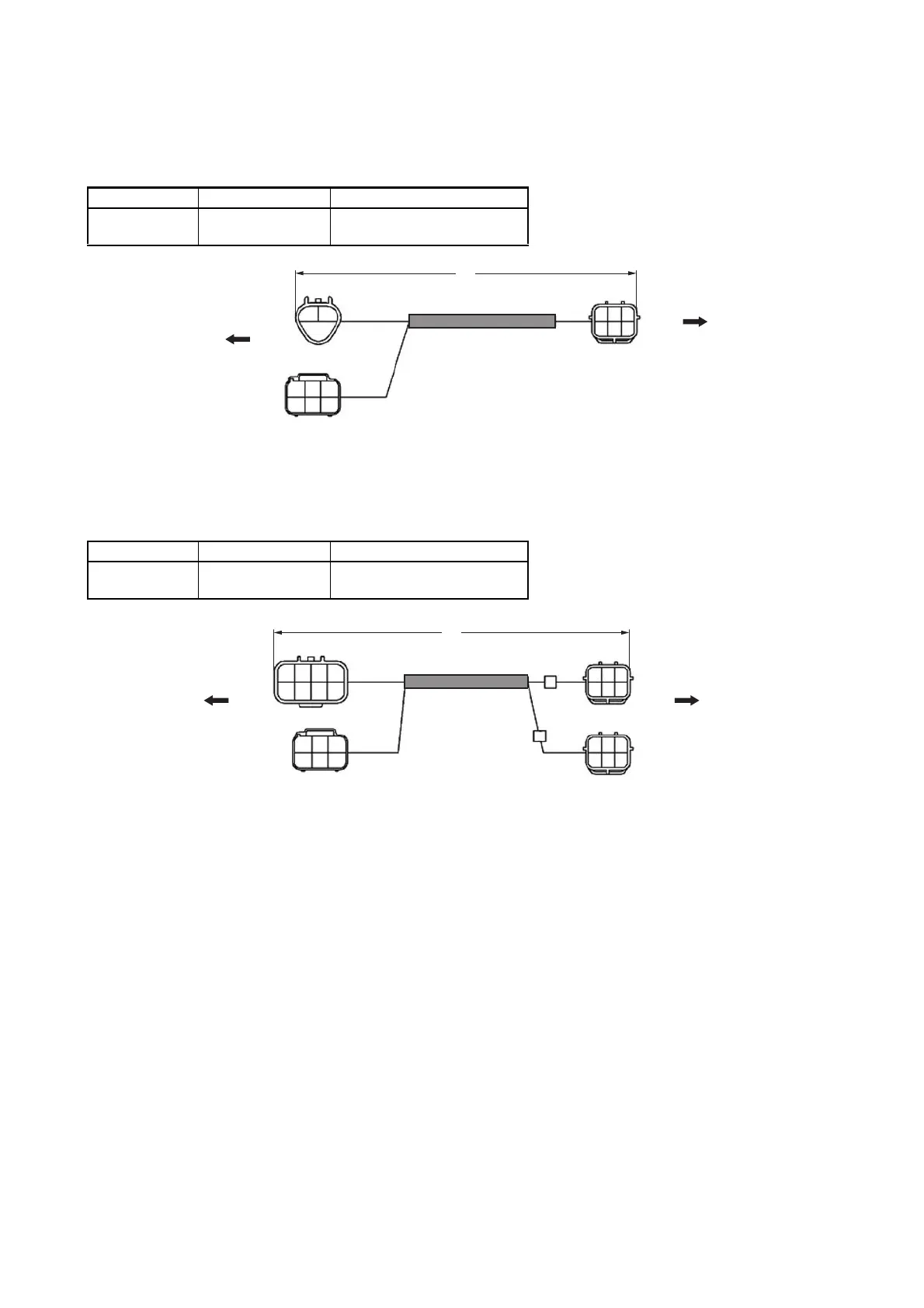

CONVERSION HARNESS M
Used to connect between 2nd helm new DEC and 2nd helm previous start/stop SW. (Single engine
application)
CONVERSION HARNESS N
Used to connect between 2nd station helm new DEC and 2nd helm previous start/stop SW. (Twin
engine application)
Part No. Length (L) Remarks
6X6-8258A-M0 200 mm (8 in)
For 2nd station helm, Single
engine application
Part No. Length (L) Remarks
6X6-8258A-N0 240 mm (9 in)
For 2nd station helm, Twin
engine application
YYWBr
XBP
WX X
BXX
P
Br
(L)
To 2nd helm
DEC
To 2nd helm
SW panel
XPBr
XPBr
Y
Y
Y W Br
XBP
W X W
BXB
Y W Br
XBP
(L)
P
S
To 2nd helm
DEC
To 2nd helm
SW panel
